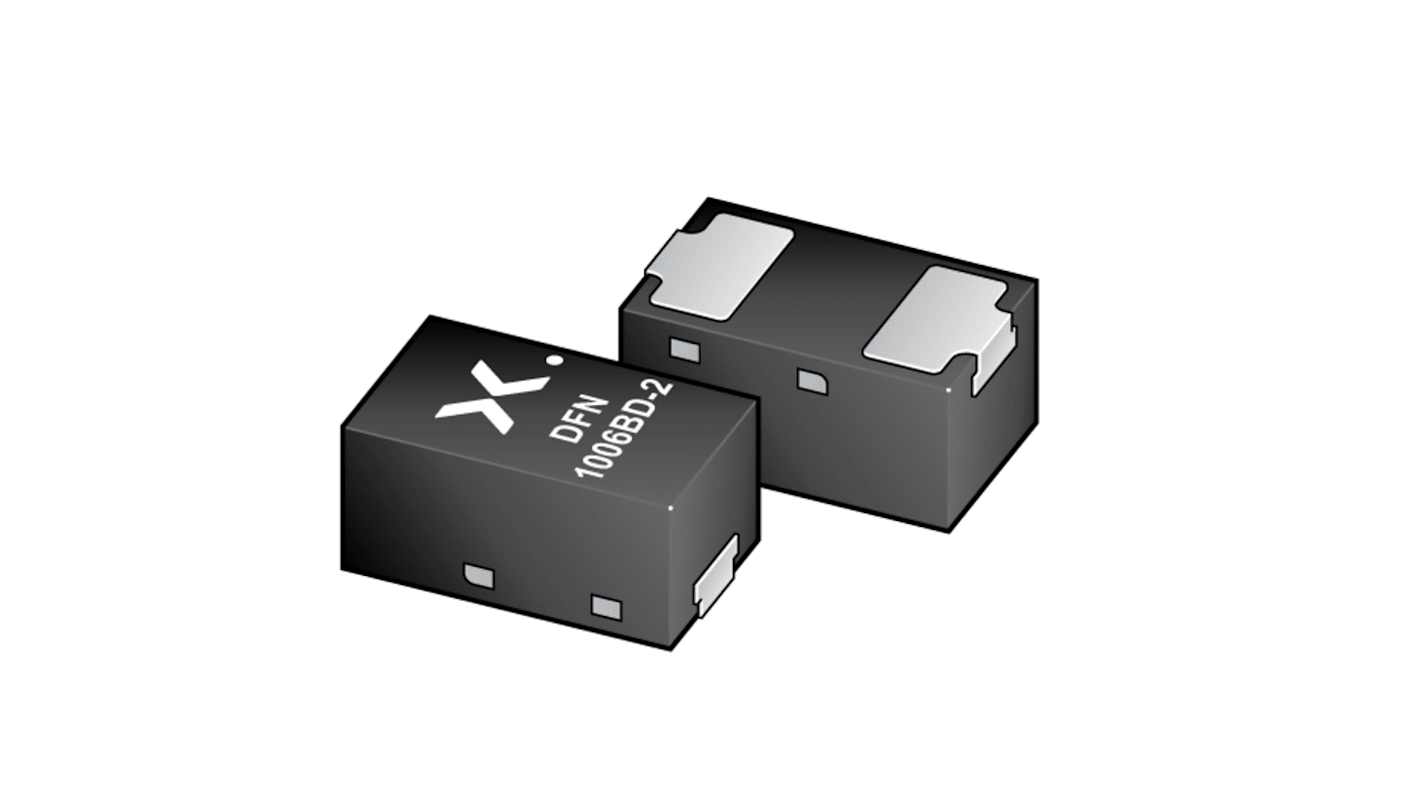

Nexperia PESD1IVN24-LSYL Bi-Directional ESD Protection Diode, 2-Pin DFN1006BD-2
- RS Stock No.:
- 240-1941
- Mfr. Part No.:
- PESD1IVN24-LSYL
- Brand:
- Nexperia
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£4.45
(exc. VAT)
£5.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4,725 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 475 | £0.178 | £4.45 |
| 500 - 975 | £0.062 | £1.55 |
| 1000 - 2475 | £0.042 | £1.05 |
| 2500 - 4975 | £0.033 | £0.83 |
| 5000 + | £0.033 | £0.83 |
*price indicative
- RS Stock No.:
- 240-1941
- Mfr. Part No.:
- PESD1IVN24-LSYL
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Direction Type | Bi-Directional | |
| Product Type | ESD Protection Diode | |
| Minimum Breakdown Voltage Vbr | 25.5V | |
| Mount Type | Surface | |
| Package Type | DFN1006BD-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 24V | |
| Pin Count | 2 | |
| Maximum Peak Pulse Current Ippm | 3.5A | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -65°C | |
| Clamping Voltage VC | 42V | |
| Maximum Operating Temperature | 150°C | |
| Length | 1mm | |
| Standards/Approvals | RoHS, IEC 61000-4-2 | |
| Height | 0.47mm | |
| Width | 0.6mm | |
| Series | PESD1IVN24-LS | |
| Maximum Reverse Leakage Current | 50nA | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Direction Type Bi-Directional | ||
Product Type ESD Protection Diode | ||
Minimum Breakdown Voltage Vbr 25.5V | ||
Mount Type Surface | ||
Package Type DFN1006BD-2 | ||
Maximum Reverse Stand-off Voltage Vwm 24V | ||
Pin Count 2 | ||
Maximum Peak Pulse Current Ippm 3.5A | ||
ESD Protection Yes | ||
Minimum Operating Temperature -65°C | ||
Clamping Voltage VC 42V | ||
Maximum Operating Temperature 150°C | ||
Length 1mm | ||
Standards/Approvals RoHS, IEC 61000-4-2 | ||
Height 0.47mm | ||
Width 0.6mm | ||
Series PESD1IVN24-LS | ||
Maximum Reverse Leakage Current 50nA | ||
Automotive Standard AEC-Q101 | ||
The Nexperia ESD protection device in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks, designed to protect automotive In-vehicle network bus lines from the damage caused by Electrostatic
Reverse stand-off voltage VRWM24 V
Low clamping voltage VCL 33 V at IPP3.5 A
ESD protection up to 30 kV (IEC 61000-4-2)
ESD protection up to 30 kV (ISO 10605 C330 pF, R330 Ω)
Ultra low leakage current IRM< 1 nA
Qualified according to AEC-Q101 / Automotive grade
