Vishay SMPC54ANHM3/H 1-Element Uni-Directional TVS Diode, 1.5 kW, 3-Pin TO-277

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 25 units)*

£7.575

(exc. VAT)

£9.10

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 5,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
25 - 225£0.303£7.58
250 - 1225£0.297£7.43
1250 - 2475£0.282£7.05
2500 - 6225£0.27£6.75
6250 +£0.258£6.45

*price indicative

Packaging Options:
RS Stock No.:
233-1015
Mfr. Part No.:
SMPC54ANHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

TVS Diode

Diode Configuration

Single

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

60V

Mount Type

Surface

Package Type

TO-277

Maximum Reverse Stand-off Voltage Vwm

54V

Pin Count

3

Peak Pulse Power Dissipation Pppm

1.5kW

Test Current It

1mA

Minimum Operating Temperature

-55°C

Clamping Voltage VC

87.1V

Maximum Peak Pulse Current Ippm

17.2A

ESD Protection

Yes

Maximum Operating Temperature

150°C

Number of Elements per Chip

1

Height

1.2mm

Standards/Approvals

No

Series

eSMP

Length

6.15mm

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

1μA

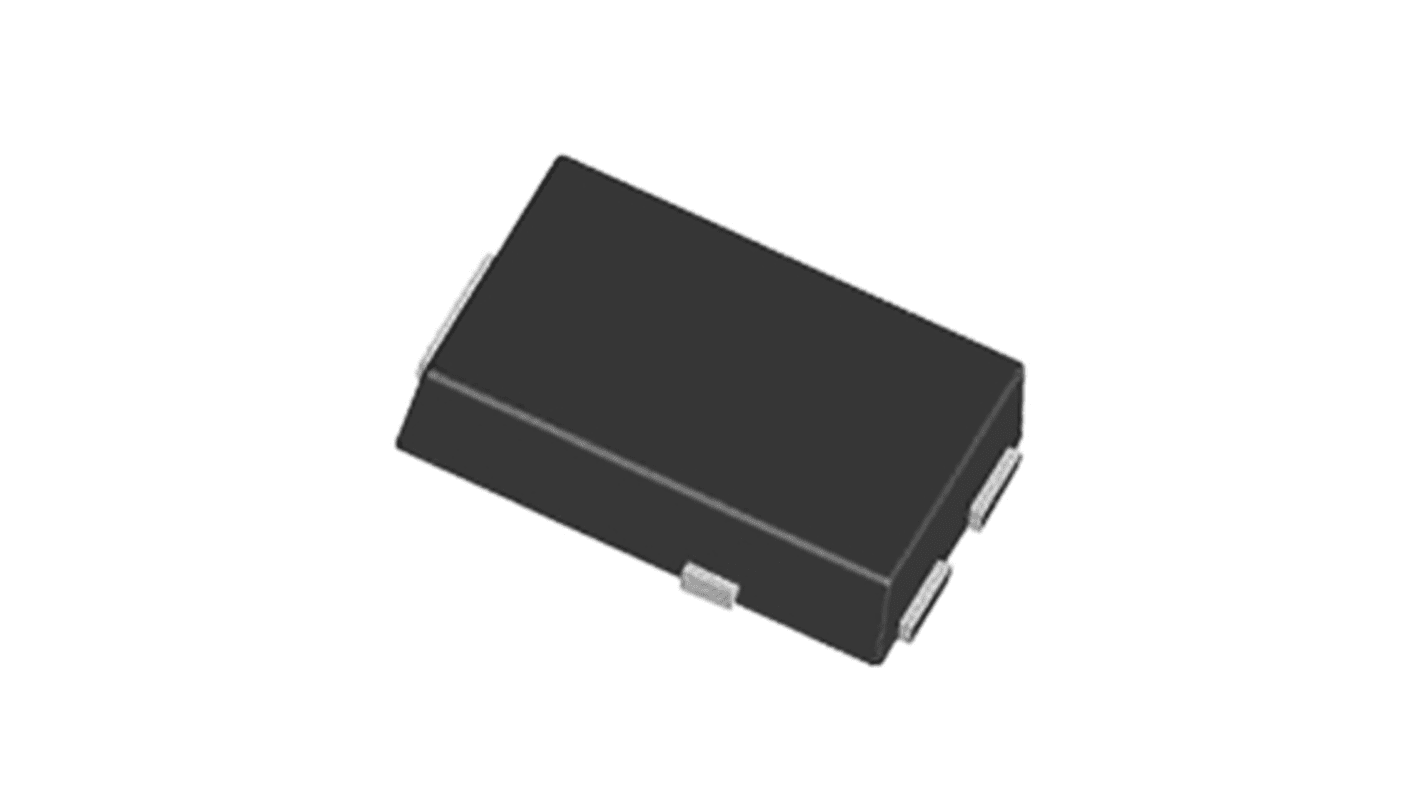

The Vishay transient voltage suppressor comes in SMPC (TO-277A) package with very low profile (typical height of 1.1 mm). It is ideal for automated placement and AEC-Q101 qualified. It has 54V stand-off voltage and 1.5KW peak power dissipation with a 10/1000 μs. It has uni-direction and excellent clamping capability.

Low incremental surge resistance

Very fast response time
