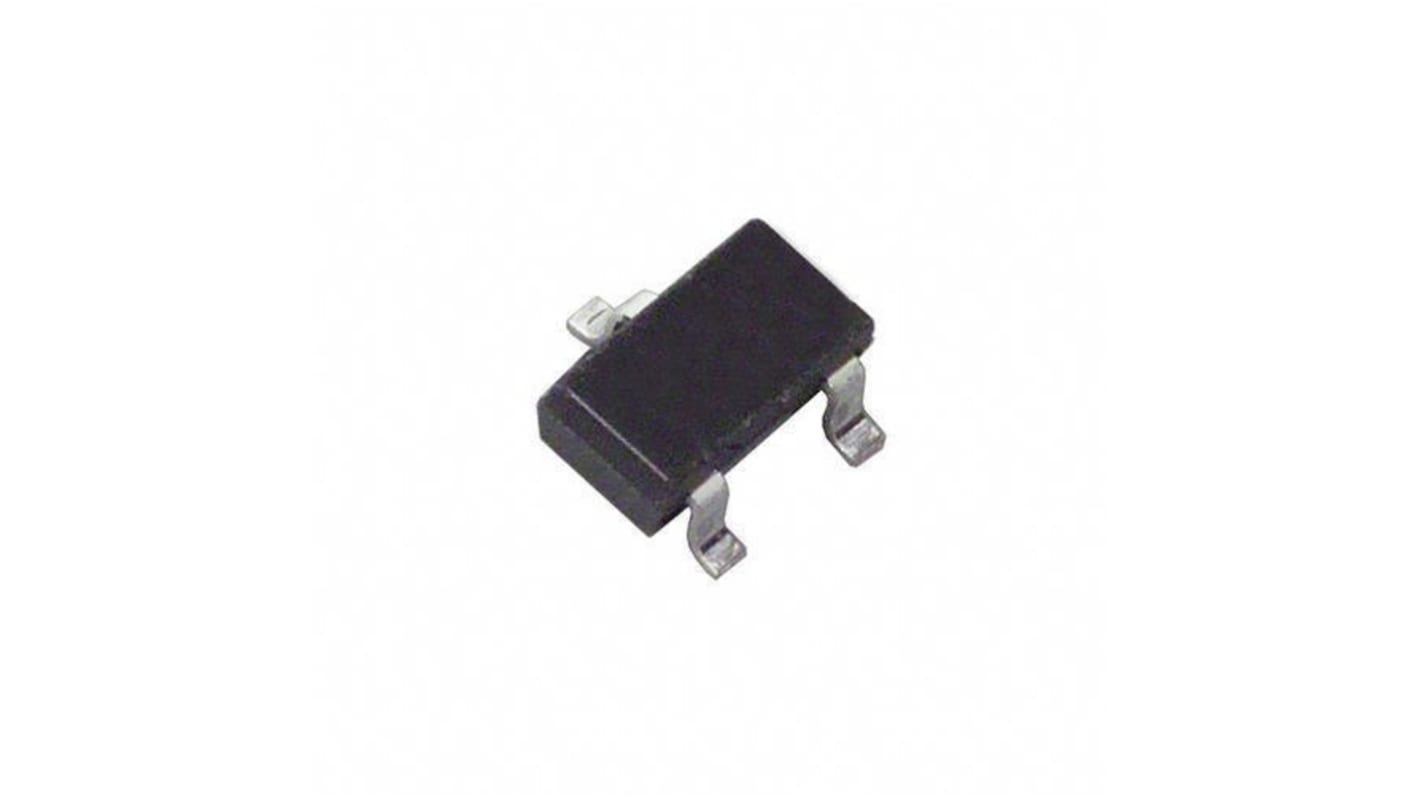

DiodesZetex D5V0F2U3WQ-7 Uni-Directional TVS Diode Array, 3-Pin SOT-323
- RS Stock No.:
- 222-2818
- Mfr. Part No.:
- D5V0F2U3WQ-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 3000 units)*
£150.00
(exc. VAT)
£180.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 November 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.05 | £150.00 |
*price indicative
- RS Stock No.:
- 222-2818
- Mfr. Part No.:
- D5V0F2U3WQ-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | TVS Diode Array | |
| Diode Configuration | Array | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 7V | |
| Mount Type | Surface | |
| Package Type | SOT-323 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 3 | |
| Clamping Voltage VC | 12V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Peak Pulse Current Ippm | 3.3A | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.2mm | |
| Standards/Approvals | IEC 61000-4-2, IEC 61000-4-5, RoHS | |
| Width | 1.35mm | |
| Series | DxV0 | |
| Height | 100μm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 100nA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type TVS Diode Array | ||
Diode Configuration Array | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 7V | ||
Mount Type Surface | ||
Package Type SOT-323 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 3 | ||
Clamping Voltage VC 12V | ||
Minimum Operating Temperature -65°C | ||
Maximum Peak Pulse Current Ippm 3.3A | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Length 2.2mm | ||
Standards/Approvals IEC 61000-4-2, IEC 61000-4-5, RoHS | ||
Width 1.35mm | ||
Series DxV0 | ||
Height 100μm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 100nA | ||
The DiodesZetex 2 channel low capacitance TVS diode array is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in automotive infotainment applications.
2 channels of ESD protection
Low channel input capacitance
Typically used in cellular handsets, portable electronics, communication systems, computers and peripherals
Totally lead-free & fully RoHS compliant
