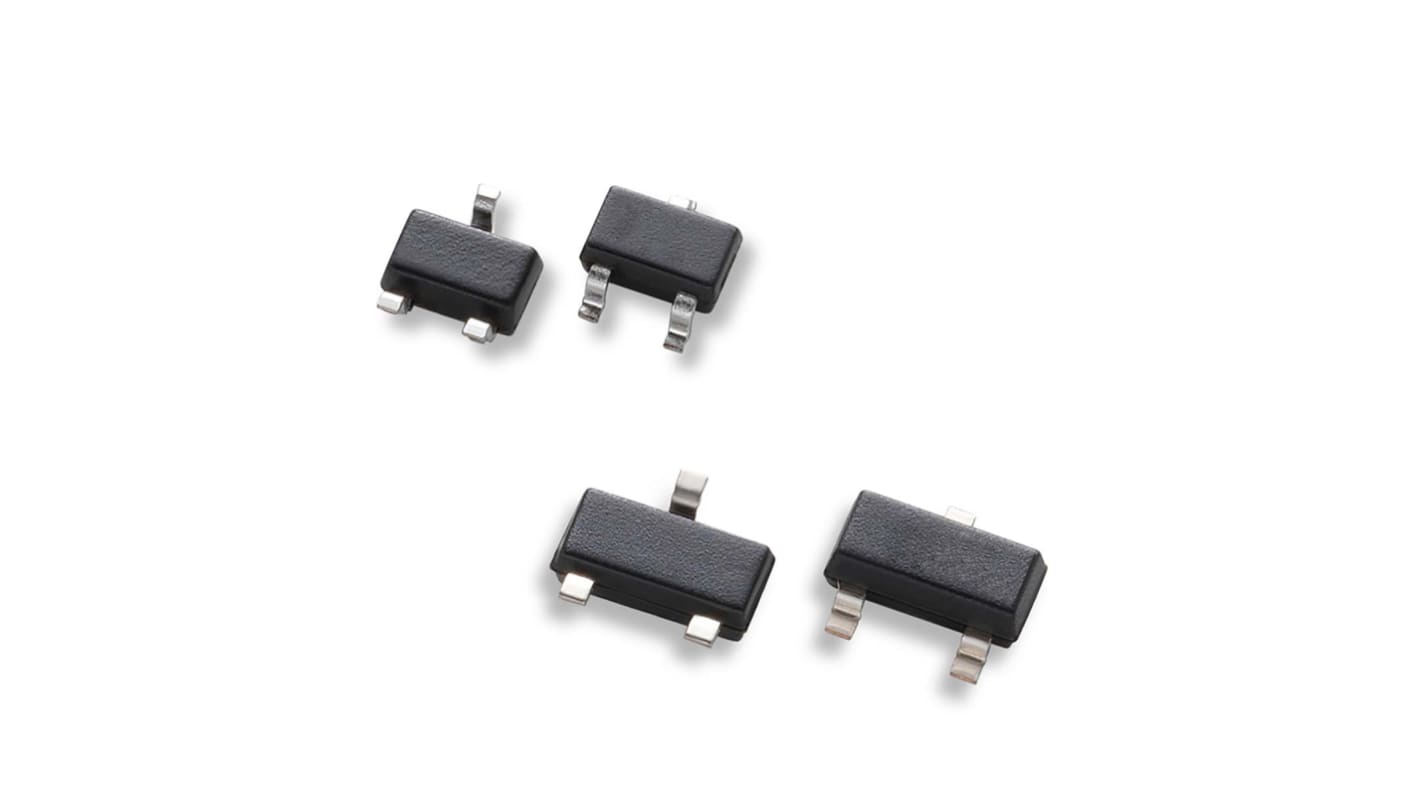

Littelfuse AQ3102-02HTG, Triple-Element Uni-Directional TVS Diode Array, 3-Pin SOT23-3L
- RS Stock No.:
- 205-3570
- Mfr. Part No.:
- AQ3102-02HTG
- Brand:
- Littelfuse
Subtotal (1 reel of 3000 units)*
£666.00
(exc. VAT)
£798.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,000 unit(s) shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.222 | £666.00 |
*price indicative
- RS Stock No.:
- 205-3570
- Mfr. Part No.:
- AQ3102-02HTG
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Littelfuse | |
Direction Type | Uni-Directional | |
Diode Configuration | Array | |
Maximum Clamping Voltage | 16V | |
Minimum Breakdown Voltage | 6.5V | |
Mounting Type | Surface Mount | |
Package Type | SOT23-3L | |
Pin Count | 3 | |
Number of Elements per Chip | 3 | |
Select all | ||
---|---|---|
Brand Littelfuse | ||
Direction Type Uni-Directional | ||
Diode Configuration Array | ||
Maximum Clamping Voltage 16V | ||
Minimum Breakdown Voltage 6.5V | ||
Mounting Type Surface Mount | ||
Package Type SOT23-3L | ||
Pin Count 3 | ||
Number of Elements per Chip 3 | ||
The Littelfuse AQ3102 series diode provides protection for automotive electronics equipment that may experience destructive electrostatic discharges (ESD). It has SOT23-3L package type.
Low capacitance of 1pF (TYP) per I/O
Low leakage current of 0.01μA (TYP) at 5V
AEC-Q101 qualified
Moisture sensitivity level(MSL -1)
Halogen-free, lead-free and RoHS-compliant
Low leakage current of 0.01μA (TYP) at 5V
AEC-Q101 qualified
Moisture sensitivity level(MSL -1)
Halogen-free, lead-free and RoHS-compliant
