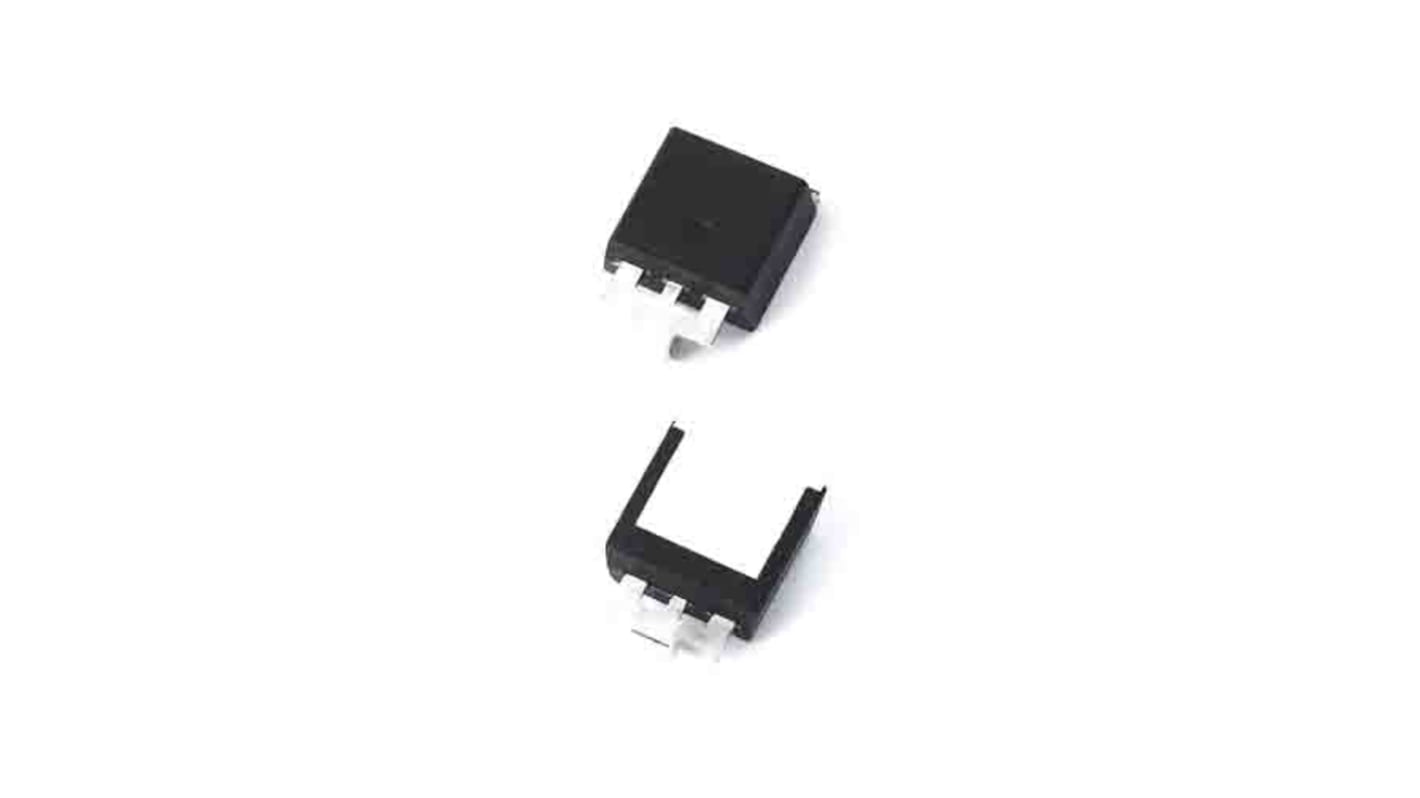

Littelfuse SLD6S26A 1-Element Uni-Directional TVS Diode, 1.8 kW, 1-Pin TO-263
- RS Stock No.:
- 213-3442
- Mfr. Part No.:
- SLD6S26A
- Brand:
- Littelfuse
Bulk discount available
Subtotal (1 pack of 5 units)*
£12.91
(exc. VAT)
£15.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.582 | £12.91 |
| 25 - 45 | £2.482 | £12.41 |
| 50 - 95 | £2.376 | £11.88 |
| 100 - 245 | £2.274 | £11.37 |
| 250 + | £2.066 | £10.33 |
*price indicative
- RS Stock No.:
- 213-3442
- Mfr. Part No.:
- SLD6S26A
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Diode Configuration | Single | |
| Product Type | TVS Diode | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 28.9V | |
| Mount Type | Surface | |
| Package Type | TO-263 | |
| Maximum Reverse Stand-off Voltage Vwm | 24V | |
| Pin Count | 1 | |
| Peak Pulse Power Dissipation Pppm | 1.8kW | |
| Maximum Peak Pulse Current Ippm | 109A | |
| ESD Protection | Yes | |
| Test Current It | 5mA | |
| Clamping Voltage VC | 42.1V | |
| Minimum Operating Temperature | -55°C | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 150°C | |
| Length | 15.24mm | |
| Width | 10.67 mm | |
| Height | 4.78mm | |
| Standards/Approvals | No | |
| Series | SLD6S | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 2μA | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Diode Configuration Single | ||
Product Type TVS Diode | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 28.9V | ||
Mount Type Surface | ||
Package Type TO-263 | ||
Maximum Reverse Stand-off Voltage Vwm 24V | ||
Pin Count 1 | ||
Peak Pulse Power Dissipation Pppm 1.8kW | ||
Maximum Peak Pulse Current Ippm 109A | ||
ESD Protection Yes | ||
Test Current It 5mA | ||
Clamping Voltage VC 42.1V | ||
Minimum Operating Temperature -55°C | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 150°C | ||
Length 15.24mm | ||
Width 10.67 mm | ||
Height 4.78mm | ||
Standards/Approvals No | ||
Series SLD6S | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 2μA | ||
The Littelfuse Uni-Directional TVS diode has SMTO-263 RoHS with Vr 26V and 4600W
Fast response time,
Low incremental surge resistance,
Glass passivated chip junction,
High Temperature reflow.
