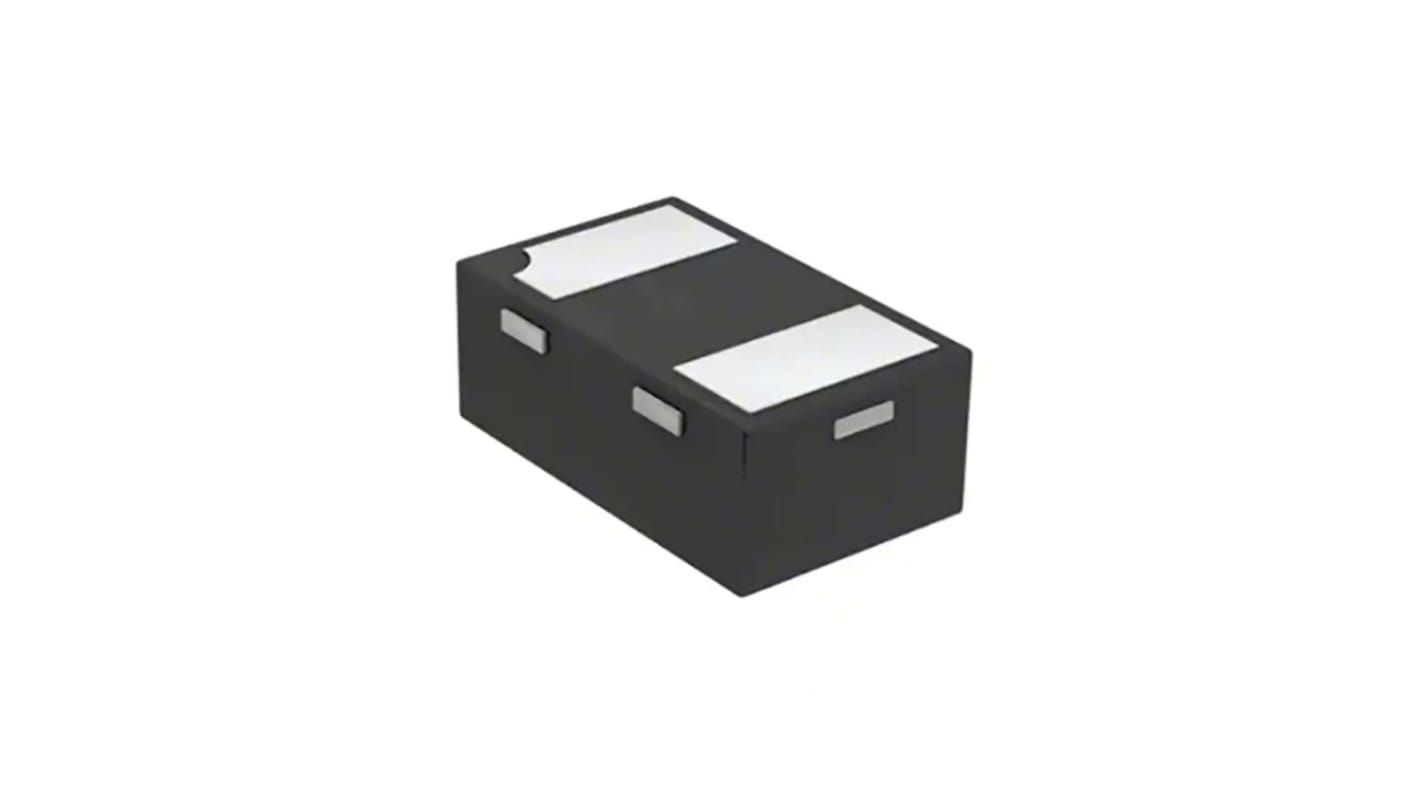

DiodesZetex 1-Element Uni-Directional TVS Diode, 2-Pin UDFN
- RS Stock No.:
- 206-0285
- Mfr. Part No.:
- D5V0S1UN2LP1610-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 10000 units)*
£880.00
(exc. VAT)
£1,060.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 July 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.088 | £880.00 |
*price indicative
- RS Stock No.:
- 206-0285
- Mfr. Part No.:
- D5V0S1UN2LP1610-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Diode Configuration | Single | |
| Direction Type | Uni-Directional | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 5.1V | |
| Mount Type | Surface | |
| Package Type | UDFN | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Peak Pulse Current Ippm | 120A | |
| ESD Protection | Yes | |
| Clamping Voltage VC | 7.4V | |
| Maximum Operating Temperature | 150°C | |
| Number of Elements per Chip | 1 | |
| Height | 0.55mm | |
| Width | 1.05mm | |
| Series | DxV0 | |
| Standards/Approvals | No | |
| Length | 1.65mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 5.1V | ||
Mount Type Surface | ||
Package Type UDFN | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Peak Pulse Current Ippm 120A | ||
ESD Protection Yes | ||
Clamping Voltage VC 7.4V | ||
Maximum Operating Temperature 150°C | ||
Number of Elements per Chip 1 | ||
Height 0.55mm | ||
Width 1.05mm | ||
Series DxV0 | ||
Standards/Approvals No | ||
Length 1.65mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The DiodesZetex 5.1 V high surge TVS diode is designed to protect sensitive electronic from the damage due to ESD, surge and lightning. The combination of small size and high ESD surge capability make it ideal for use in portable application such as cellular phones, digital cameras, and MP3 player.
1 channel of ESD/surge protection
Provides ESD protection
