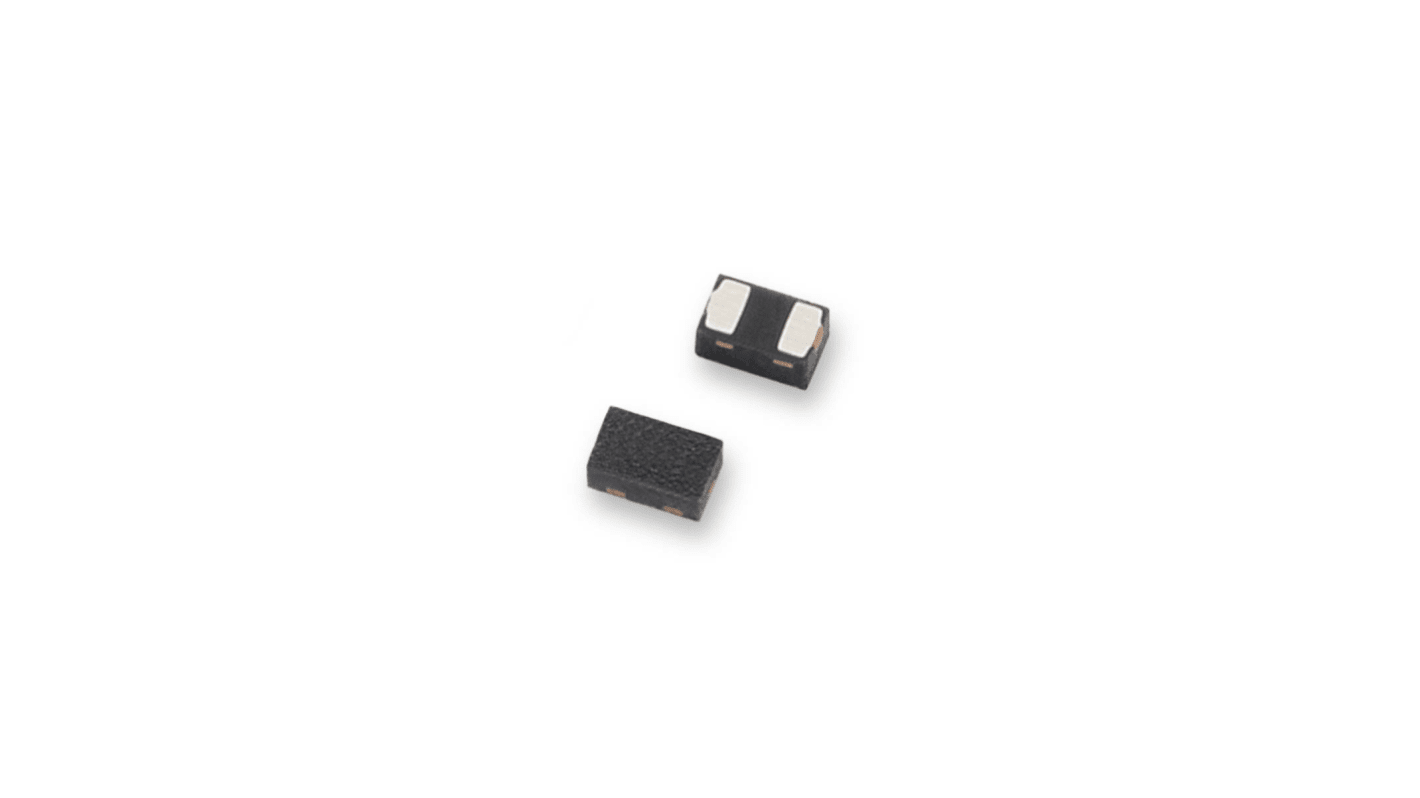

Littelfuse SP4322-01ETG 2-Element Bi-Directional TVS Diode Array, 2-Pin SOD-882
- RS Stock No.:
- 205-3574
- Mfr. Part No.:
- SP4322-01ETG
- Brand:
- Littelfuse
Subtotal (1 reel of 10000 units)*
£980.00
(exc. VAT)
£1,180.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.098 | £980.00 |
*price indicative
- RS Stock No.:
- 205-3574
- Mfr. Part No.:
- SP4322-01ETG
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | TVS Diode Array | |
| Diode Configuration | Array | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 9V | |
| Mount Type | Surface | |
| Package Type | SOD-882 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Clamping Voltage VC | 4V | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 125°C | |
| Number of Elements per Chip | 2 | |
| Length | 1mm | |
| Height | 500μm | |
| Width | 600μm | |
| Standards/Approvals | No | |
| Series | SP4322 | |
| Maximum Reverse Leakage Current | 100nA | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type TVS Diode Array | ||
Diode Configuration Array | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 9V | ||
Mount Type Surface | ||
Package Type SOD-882 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Clamping Voltage VC 4V | ||
ESD Protection Yes | ||
Maximum Operating Temperature 125°C | ||
Number of Elements per Chip 2 | ||
Length 1mm | ||
Height 500μm | ||
Width 600μm | ||
Standards/Approvals No | ||
Series SP4322 | ||
Maximum Reverse Leakage Current 100nA | ||
Automotive Standard AEC-Q101 | ||
The Littelfuse TVS diode is specifically designed to protect high-speed interfaces against ElectroStatic Discharge (ESD), such as DisplayPort interfaces and USB 3.1 Gen 1. The signal line is protected by low line capacitance of 0.4 pF typical. It has SOD882 package type.
Low capacitance of 0.4pF (TYP @ VR=0V)
Low leakage current of 1nA (TYP) at 5V
Halogen free, lead free and RoHS compliant
Moisture sensitivity level (MSL -1)
AEC-Q101 qualified
