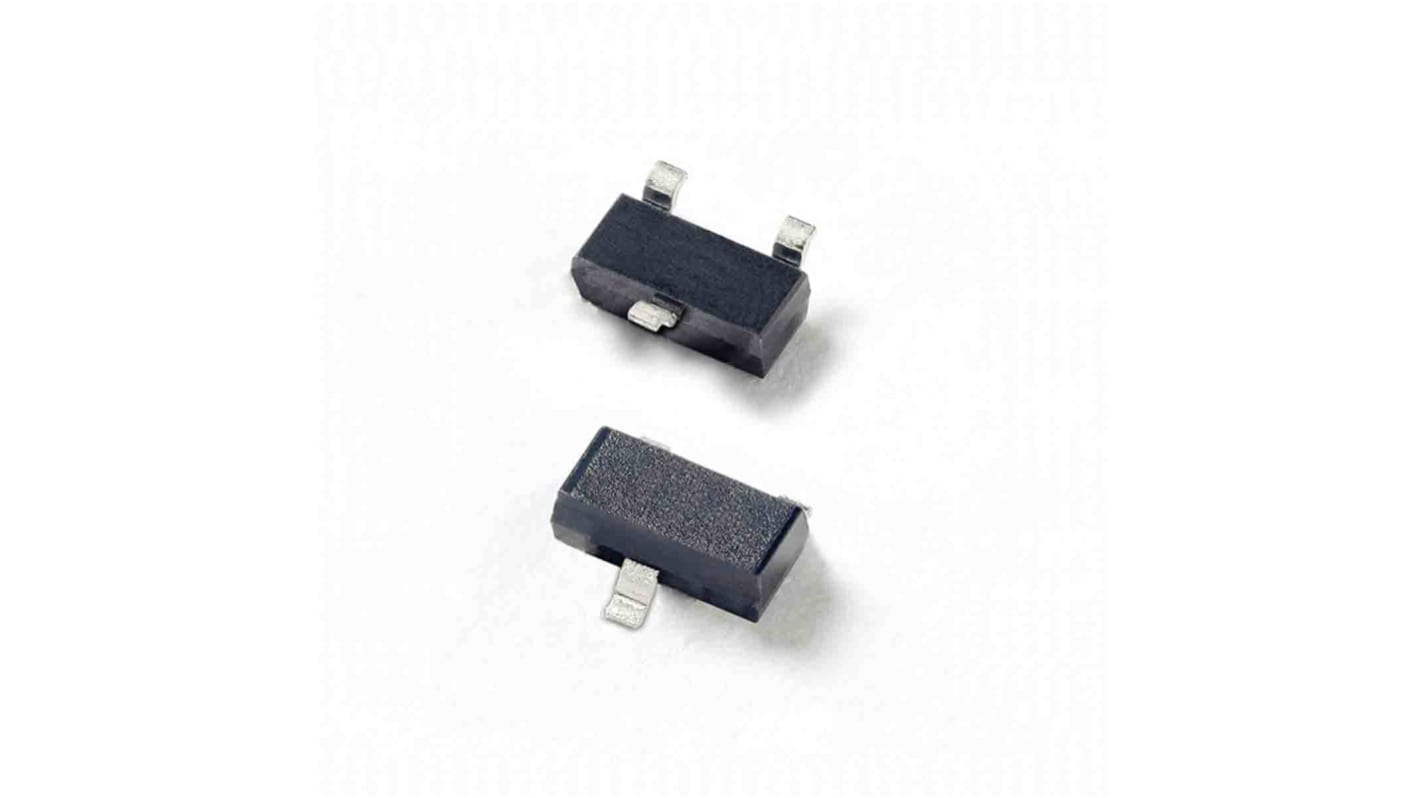

Littelfuse SP712-02HTG 2-Element Bi-Directional TVS Diode Array, 640 W, 3-Pin SOT-23
- RS Stock No.:
- 202-6934
- Mfr. Part No.:
- SP712-02HTG
- Brand:
- Littelfuse
Bulk discount available
Subtotal (1 pack of 25 units)*
£8.95
(exc. VAT)
£10.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
- Plus 8,975 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.358 | £8.95 |
| 50 - 75 | £0.337 | £8.43 |
| 100 - 225 | £0.288 | £7.20 |
| 250 - 975 | £0.283 | £7.08 |
| 1000 + | £0.273 | £6.83 |
*price indicative
- RS Stock No.:
- 202-6934
- Mfr. Part No.:
- SP712-02HTG
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Diode Configuration | Array | |
| Direction Type | Bi-Directional | |
| Product Type | TVS Diode Array | |
| Minimum Breakdown Voltage Vbr | 7.5V | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Maximum Reverse Stand-off Voltage Vwm | 12V | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation Pppm | 640W | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Peak Pulse Current Ippm | 20A | |
| Clamping Voltage VC | 32V | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Height | 1.15mm | |
| Length | 3.04mm | |
| Series | SP712 | |
| Maximum Reverse Leakage Current | 20μA | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Diode Configuration Array | ||
Direction Type Bi-Directional | ||
Product Type TVS Diode Array | ||
Minimum Breakdown Voltage Vbr 7.5V | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage Vwm 12V | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation Pppm 640W | ||
ESD Protection Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Peak Pulse Current Ippm 20A | ||
Clamping Voltage VC 32V | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Height 1.15mm | ||
Length 3.04mm | ||
Series SP712 | ||
Maximum Reverse Leakage Current 20μA | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The SP712 TVS Diode Array is designed to protect RS-485 applications with asymmetrical working voltages (-7V to 12V) from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SP712 can absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 20A of 8/20us induced surge current (IEC 61000-4-5) with very low clamping voltages.
ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
EFT, IEC 61000-4-4, 50A (5/50ns)
Lightning, IEC 61000- 4-5 2nd edition, 20A (tP=8/20μs)
Working Voltages: -7V to 12V
Low clamping voltage
Low leakage current
Halogen free, Lead free and RoHS compliant
Moisture Sensitivity Level(MSL -1)
AEC-Q101 qualified
