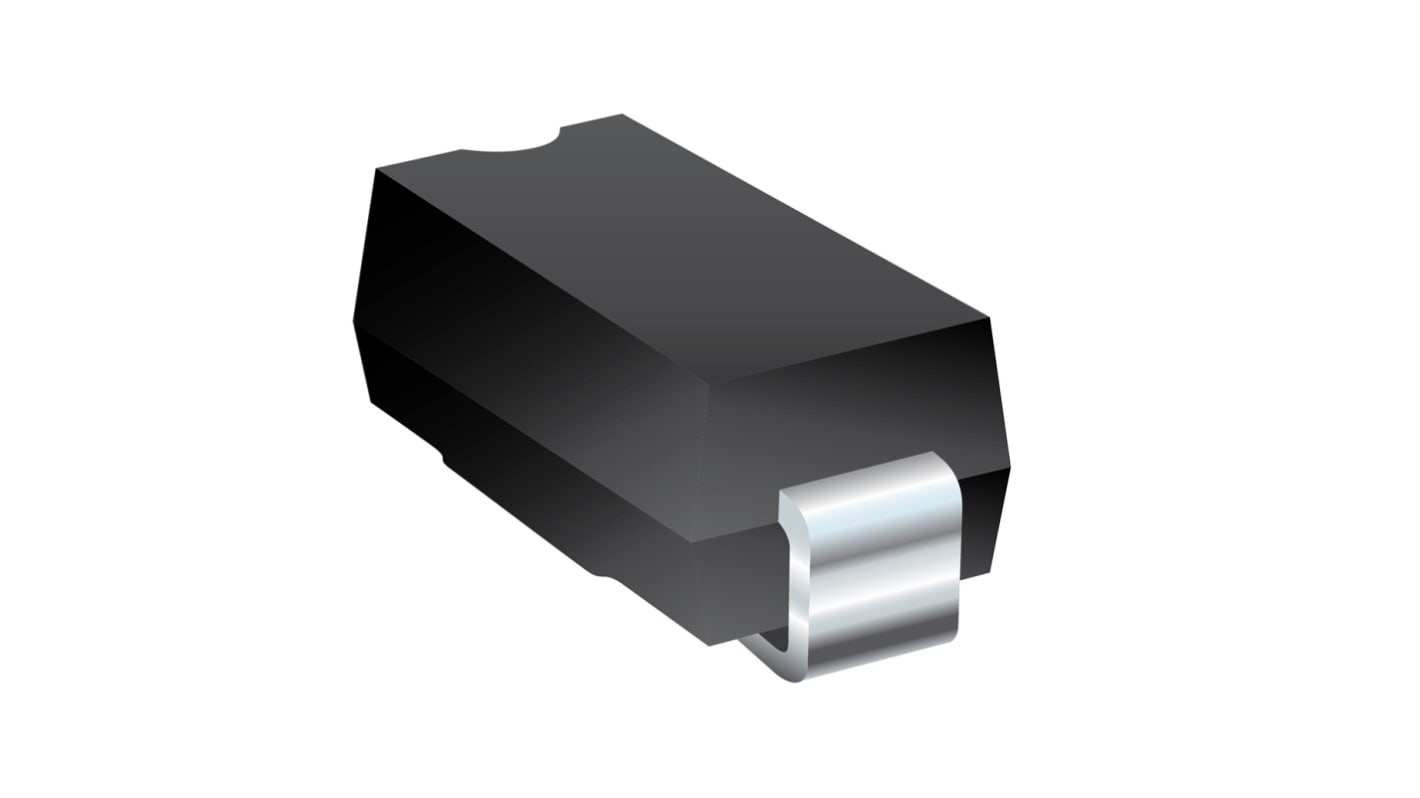

Bourns SMA6J18A-Q, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC

RS Stock No.:: 195-2380
Mfr. Part No.:: SMA6J18A-Q
Brand:: Bourns

Bourns SMA6J18A-Q, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC

25 In stock - FREE next working day delivery available

Price Each (In a Pack of 25)

£0.16

(exc. VAT)

£0.19

(inc. VAT)

Units	Per unit	Per Pack*
25 - 75	£0.16	£4.00
100 - 475	£0.146	£3.65
500 - 975	£0.142	£3.55
1000 - 2475	£0.138	£3.45
2500 +	£0.135	£3.375

*price indicative

RS Stock No.:: 195-2380
Mfr. Part No.:: SMA6J18A-Q
Brand:: Bourns

Datasheet SMA6J18A-Q

Attribute	Value
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage	20V
Mounting Type	Surface Mount
Package Type	DO-214AC (SMA)
Maximum Reverse Stand-off Voltage	43V
Pin Count	2
Peak Pulse Power Dissipation	600W
ESD Protection	Yes
Number of Elements per Chip	1
Minimum Operating Temperature	-55 °C
Dimensions	4.5 x 2.79 x 2.08mm
Maximum Operating Temperature	+150 °C
Length	4.5mm
Automotive Standard	AEC-Q101
Height	2.08mm
Surge Current Rating	20.6A
Test Current	1mA
Maximum Reverse Leakage Current	1µA
Width	2.79mm

Bourns SMA6J18A-Q, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC
