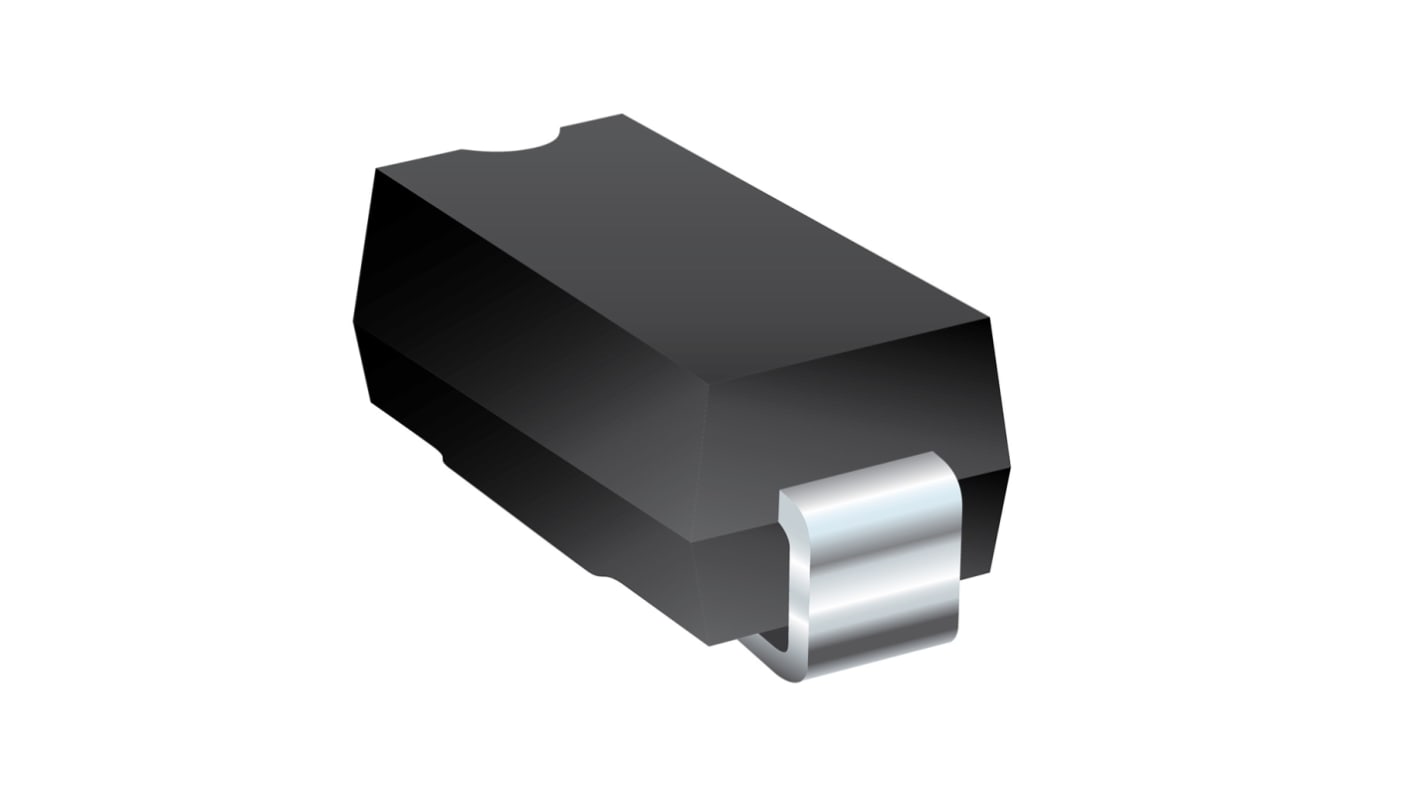

Bourns SMA6J5.0A-Q, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC

RS Stock No.:: 195-2378
Mfr. Part No.:: SMA6J5.0A-Q
Brand:: Bourns

Bourns SMA6J5.0A-Q, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC

3850 In stock - FREE next working day delivery available

Price Each (In a Pack of 25)

£0.266

(exc. VAT)

£0.319

(inc. VAT)

Units	Per unit	Per Pack*
25 - 75	£0.266	£6.65
100 - 475	£0.223	£5.575
500 - 975	£0.216	£5.40
1000 - 2475	£0.211	£5.275
2500 +	£0.206	£5.15

*price indicative

RS Stock No.:: 195-2378
Mfr. Part No.:: SMA6J5.0A-Q
Brand:: Bourns

Datasheet SMA6J5.0A-Q

Attribute	Value
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage	6.4V
Mounting Type	Surface Mount
Package Type	DO-214AC (SMA)
Maximum Reverse Stand-off Voltage	43V
Pin Count	2
Peak Pulse Power Dissipation	600W
ESD Protection	Yes
Number of Elements per Chip	1
Minimum Operating Temperature	-55 °C
Dimensions	4.5 x 2.79 x 2.08mm
Maximum Operating Temperature	+150 °C
Width	2.79mm
Height	2.08mm
Surge Current Rating	65.3A
Maximum Reverse Leakage Current	800µA
Test Current	10mA
Length	4.5mm
Automotive Standard	AEC-Q101

Bourns SMA6J5.0A-Q, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC
