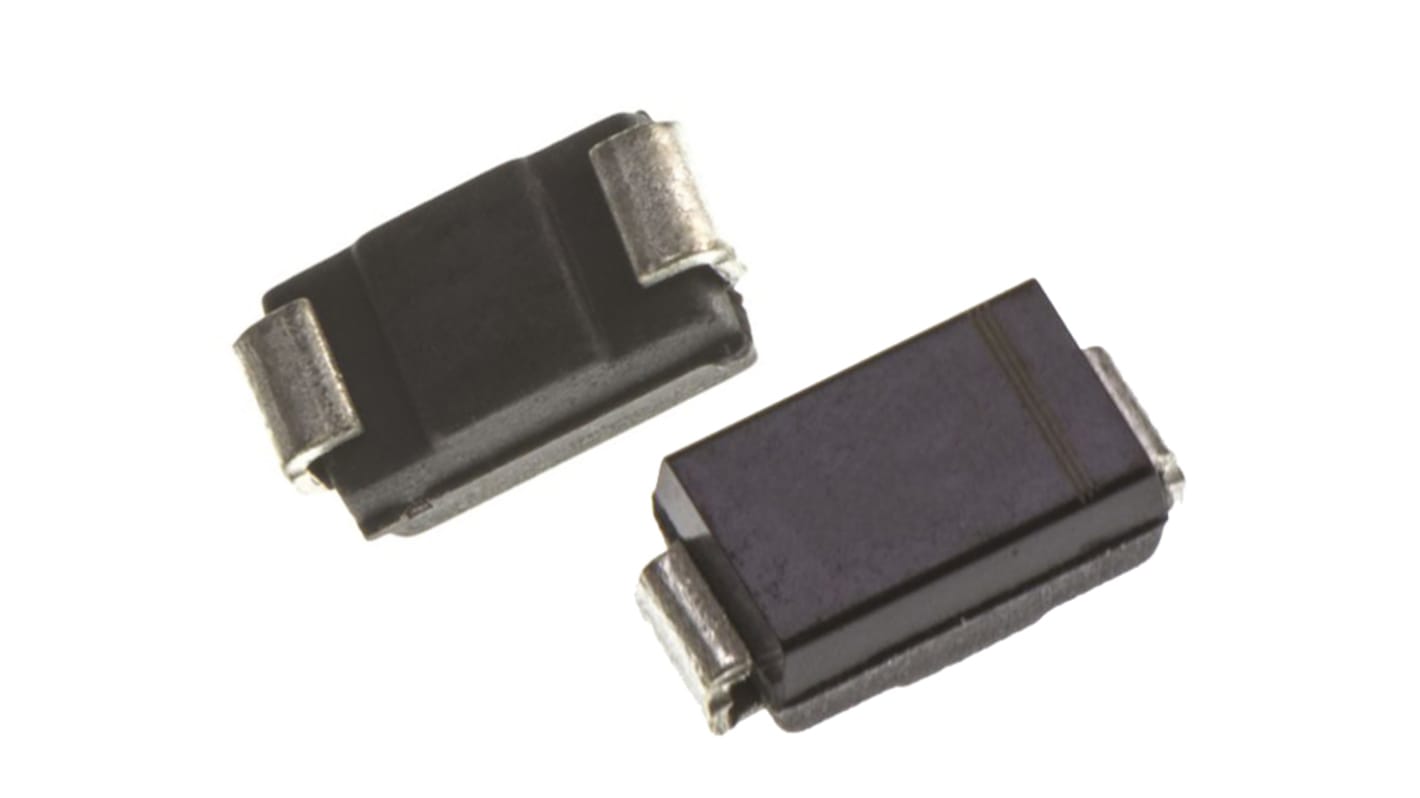

Bourns SMA6J24A, Uni-Directional ESD Protection Diode, 600W, 2-Pin DO-214AC
- RS Stock No.:
- 195-2375
- Mfr. Part No.:
- SMA6J24A
- Brand:
- Bourns
Available to back order for despatch 11/11/2024
Price Each (On a Reel of 5000)
£0.074
(exc. VAT)
£0.089
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.074 | £370.00 |
*price indicative
- RS Stock No.:
- 195-2375
- Mfr. Part No.:
- SMA6J24A
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AC (SMA) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 43 V. Typical fast response times are less than 1.0 picosecond from 0 V to Breakdown Voltage. Bourns® Chip Diodes are easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
SurfaceMount SMA package
Standoff Voltage:5 to 43 volts
Power Dissipation: 600 watts
Applications
Protection of power buses
Protection of I/O interfaces
Overvoltage transient protection
Telecom, computer, industrial and consumer electronics applications
Standoff Voltage:5 to 43 volts
Power Dissipation: 600 watts
Applications
Protection of power buses
Protection of I/O interfaces
Overvoltage transient protection
Telecom, computer, industrial and consumer electronics applications
Specifications
Attribute | Value |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Minimum Breakdown Voltage | 26.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 43V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.5 x 2.79 x 2.08mm |
| Height | 2.08mm |
| Length | 4.5mm |
| Surge Current Rating | 15.5A |
| Width | 2.79mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
