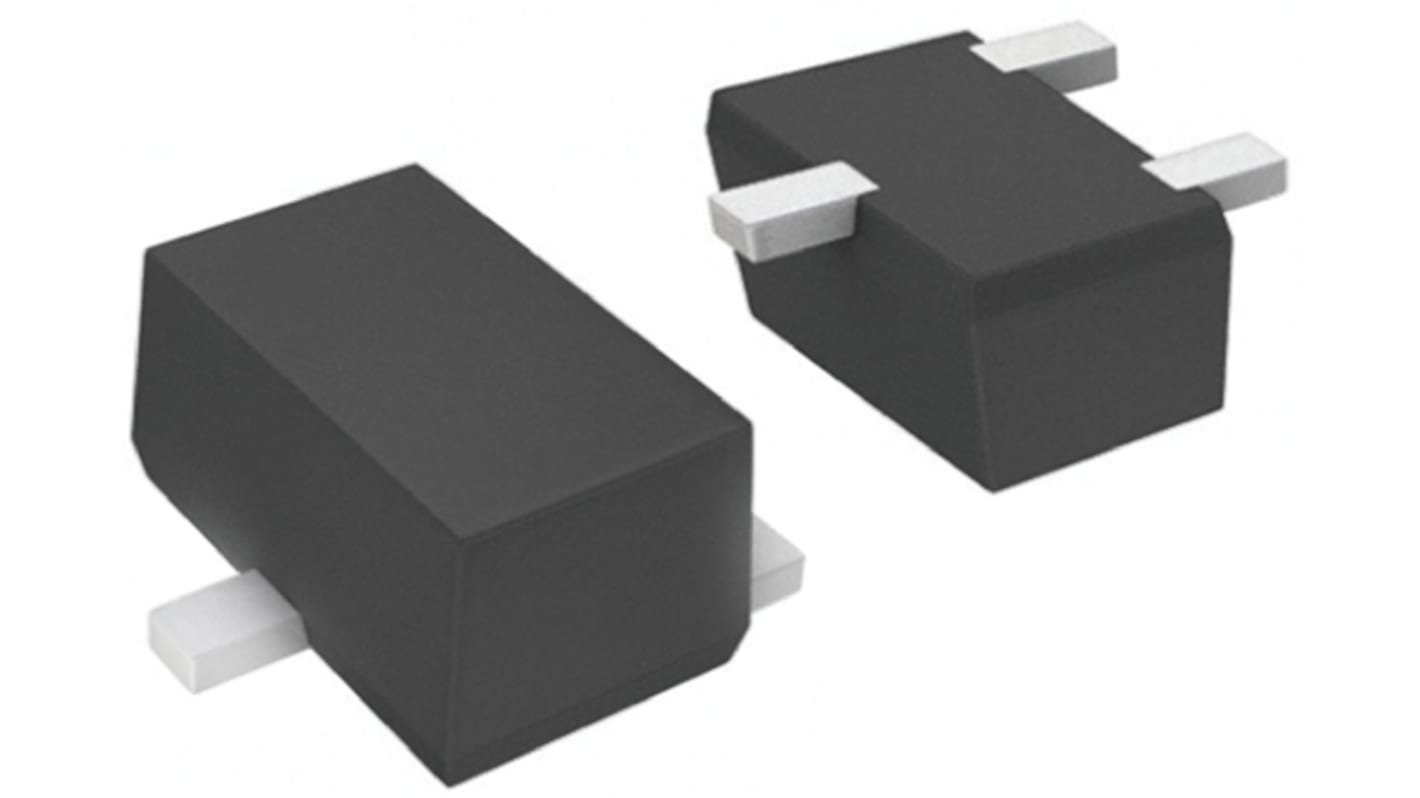

onsemi ESD7C5.0DT5G, Dual-Element Uni-Directional ESD Protection Diode, 240mW, 3-Pin SOT-723
- RS Stock No.:
- 186-9040
- Mfr. Part No.:
- ESD7C5.0DT5G
- Brand:
- onsemi
Subtotal (1 reel of 8000 units)*
£528.00
(exc. VAT)
£632.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 8000 + | £0.066 | £528.00 |
*price indicative
- RS Stock No.:
- 186-9040
- Mfr. Part No.:
- ESD7C5.0DT5G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Common Anode | |
| Minimum Breakdown Voltage | 5V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-723 | |
| Maximum Reverse Stand-off Voltage | 5V | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation | 240mW | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 2 | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 1.25 x 0.85 x 0.55mm | |
| Maximum Reverse Leakage Current | 500nA | |
| Test Current | 1mA | |
| Width | 0.85mm | |
| Capacitance | 6.2pF | |
| Automotive Standard | AEC-Q101 | |
| Length | 1.25mm | |
| Height | 0.55mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Direction Type Uni-Directional | ||
Diode Configuration Common Anode | ||
Minimum Breakdown Voltage 5V | ||
Mounting Type Surface Mount | ||
Package Type SOT-723 | ||
Maximum Reverse Stand-off Voltage 5V | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation 240mW | ||
ESD Protection Yes | ||
Number of Elements per Chip 2 | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 1.25 x 0.85 x 0.55mm | ||
Maximum Reverse Leakage Current 500nA | ||
Test Current 1mA | ||
Width 0.85mm | ||
Capacitance 6.2pF | ||
Automotive Standard AEC-Q101 | ||
Length 1.25mm | ||
Height 0.55mm | ||
Low Capacitance ESD Protection Array
The ESD7C3.3DT5G Series is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Small Body Outline Dimensions: 0.047 x 0.047 (1.20 mm x 1.20 mm)
Low Leakage
Low Body Height: 0.020 (0.5 mm)
Standoff Voltage: 3.3V, 5V
Response Time is < 1 ns
Benefits
Excellent for space constrained designs
Preserves battery life
Protects against ESD pulses
Applications
Cellular phones, MP3 players, Digital cameras and many other portable devices
Low Leakage
Low Body Height: 0.020 (0.5 mm)
Standoff Voltage: 3.3V, 5V
Response Time is < 1 ns
Benefits
Excellent for space constrained designs
Preserves battery life
Protects against ESD pulses
Applications
Cellular phones, MP3 players, Digital cameras and many other portable devices
Transient Voltage Suppressors, ON Semiconductor
