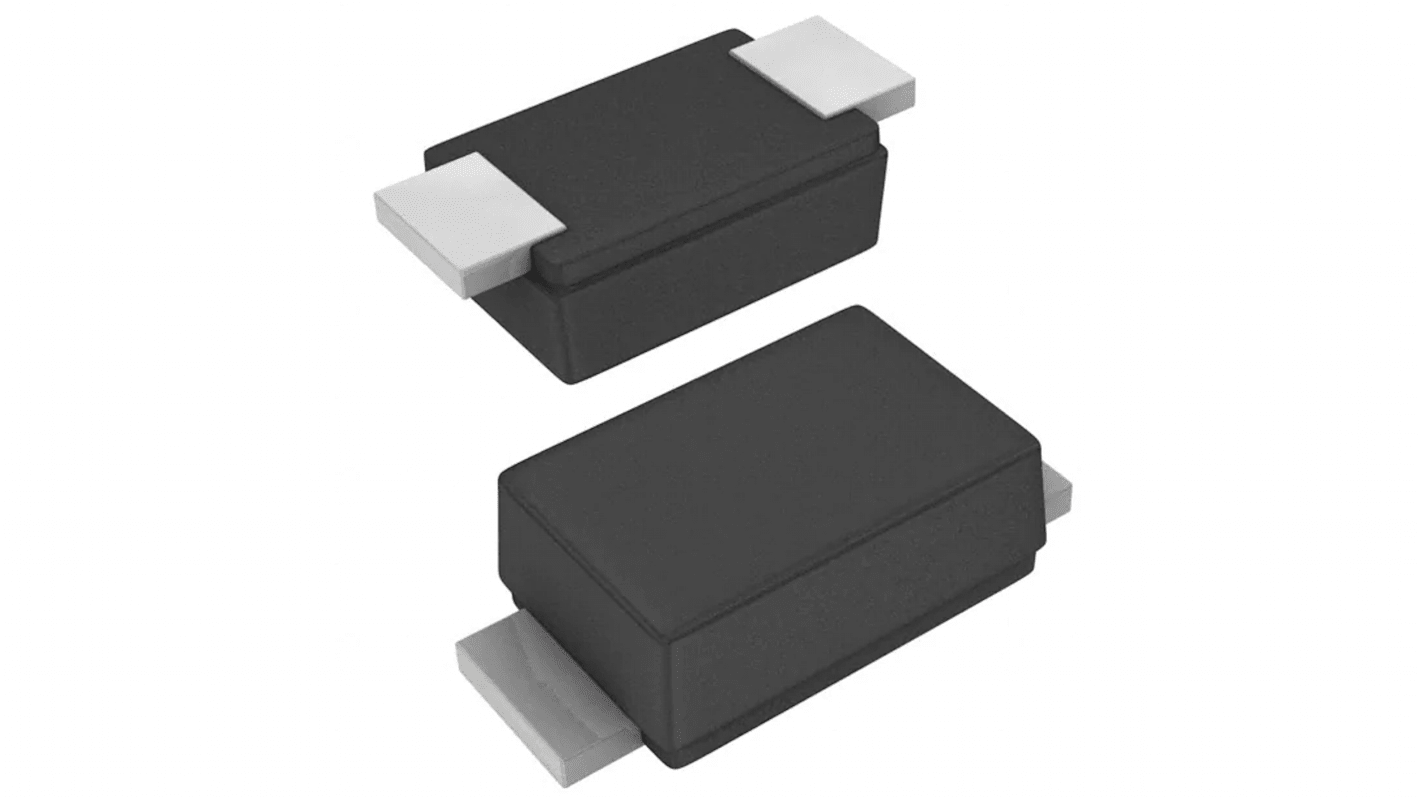

Vishay SMF48A-E3-08, Uni-Directional TVS Diode, 200W, 2-Pin DO-219AB

View all TVS Diodes

Subtotal (1 pack of 25 units)*

£3.875

(exc. VAT)

£4.65

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 28,800 unit(s), ready to ship
Units
Per unit
Per Pack*
25 +£0.155£3.88

*price indicative

Packaging Options:
RS Stock No.:
180-7973
Mfr. Part No.:
SMF48A-E3-08
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Direction Type

Uni-Directional

Maximum Clamping Voltage

77.4V

Minimum Breakdown Voltage

53.3V

Mounting Type

Surface Mount

Package Type

DO-219AB

Pin Count

2

Peak Pulse Power Dissipation

200W

Number of Elements per Chip

1

COO (Country of Origin):
CN

Vishay TVS Diode


The Vishay SMF DO-219AB package, surface mount ESD protected unidirectional TVS diode has a breakdown voltage rating of 53.3V and peak pulse current rating of 2.6A.

Features and Benefits


• 200W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%
• ESD capability according to AEC-Q101: human body model: class H3B > 8 kV
• ESD immunity ±30kV contact discharge and ±30kV air discharge
• Excellent clamping capability
• Fast response time
• Halogen and Lead (Pb) free component
• Low incremental surge resistance
• Low-Noise technology
• Low-profile package
• Operating junction temperature ranges between -65°C and 175°C
• Wave and reflow solderable

Applications


• Automotive load dump
• Sensitive electronics protection

Certifications


• AEC-Q101 qualified
• Automotive Grade
• e3
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
