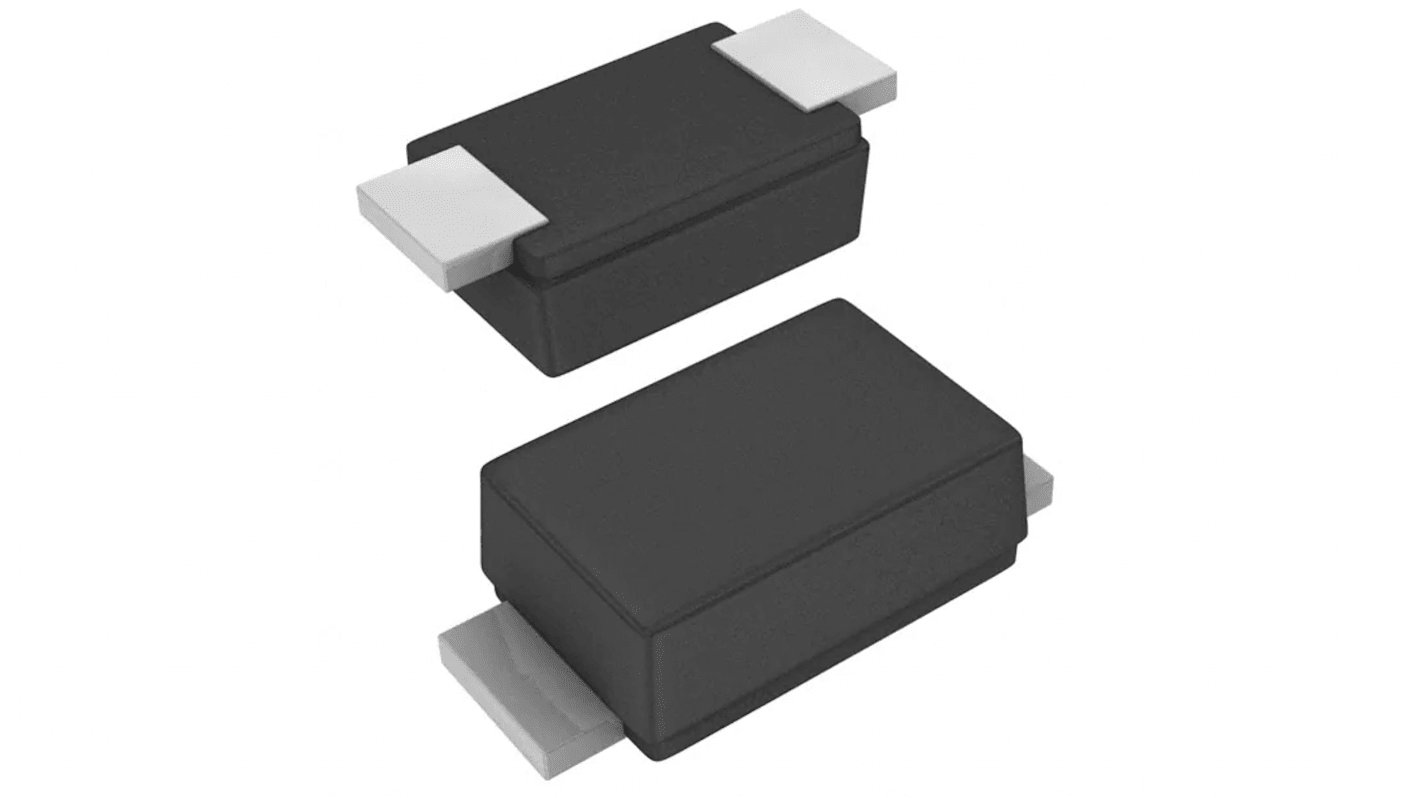

Vishay 1-Element Uni-Directional TVS Diode, 200 W, 2-Pin DO-219

RS Stock No.:: 180-7392
Mfr. Part No.:: SMF48A-E3-08
Brand:: Vishay

Vishay 1-Element Uni-Directional TVS Diode, 200 W, 2-Pin DO-219

Subtotal (1 reel of 3000 units)*

£150.00

(exc. VAT)

£180.00

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Final 27,000 unit(s), ready to ship

Units	Per unit	Per Reel*
3000 +	£0.05	£150.00

*price indicative

RS Stock No.:: 180-7392
Mfr. Part No.:: SMF48A-E3-08
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Diode Configuration	Single
	Direction Type	Uni-Directional
	Product Type	TVS Diode
	Minimum Breakdown Voltage Vbr	53.3V
	Mount Type	Surface
	Package Type	DO-219
	Maximum Reverse Stand-off Voltage Vwm	48V
	Pin Count	2
	Peak Pulse Power Dissipation Pppm	200W
	Clamping Voltage VC	77.4V
	Test Current It	1mA
	Minimum Operating Temperature	-55°C
	Maximum Peak Pulse Current Ippm	2.6A
	ESD Protection	Yes
	Maximum Operating Temperature	150°C
	Number of Elements per Chip	1
	Height	1.08mm
	Width	1.9 mm
	Series	eSMP
	Length	2.9mm
	Standards/Approvals	No
	Automotive Standard	AEC-Q101
	Maximum Reverse Leakage Current	0.1μA

	Select all
	Brand Vishay
	Diode Configuration Single
	Direction Type Uni-Directional
	Product Type TVS Diode
	Minimum Breakdown Voltage Vbr 53.3V
	Mount Type Surface
	Package Type DO-219
	Maximum Reverse Stand-off Voltage Vwm 48V
	Pin Count 2
	Peak Pulse Power Dissipation Pppm 200W
	Clamping Voltage VC 77.4V
	Test Current It 1mA
	Minimum Operating Temperature -55°C
	Maximum Peak Pulse Current Ippm 2.6A
	ESD Protection Yes
	Maximum Operating Temperature 150°C
	Number of Elements per Chip 1
	Height 1.08mm
	Width 1.9 mm
	Series eSMP
	Length 2.9mm
	Standards/Approvals No
	Automotive Standard AEC-Q101
	Maximum Reverse Leakage Current 0.1μA

Datasheet

COO (Country of Origin):: CN

Vishay TVS Diode

The Vishay SMF DO-219AB package, surface mount ESD protected unidirectional TVS diode has a breakdown voltage rating of 53.3V and peak pulse current rating of 2.6A.

Features and Benefits

• 200W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%

• ESD capability according to AEC-Q101: human body model: class H3B > 8 kV

• ESD immunity ±30kV contact discharge and ±30kV air discharge

• Excellent clamping capability

• Fast response time

• Halogen and Lead (Pb) free component

• Low incremental surge resistance

• Low-Noise technology

• Low-profile package

• Operating junction temperature ranges between -65°C and 175°C

• Wave and reflow solderable

Applications

• Automotive load dump

• Sensitive electronics protection

Certifications

• AEC-Q101 qualified

• Automotive Grade

• e3

• IEC 61000-4-2

• J-STD-020

• UL 94 V-0 listed
