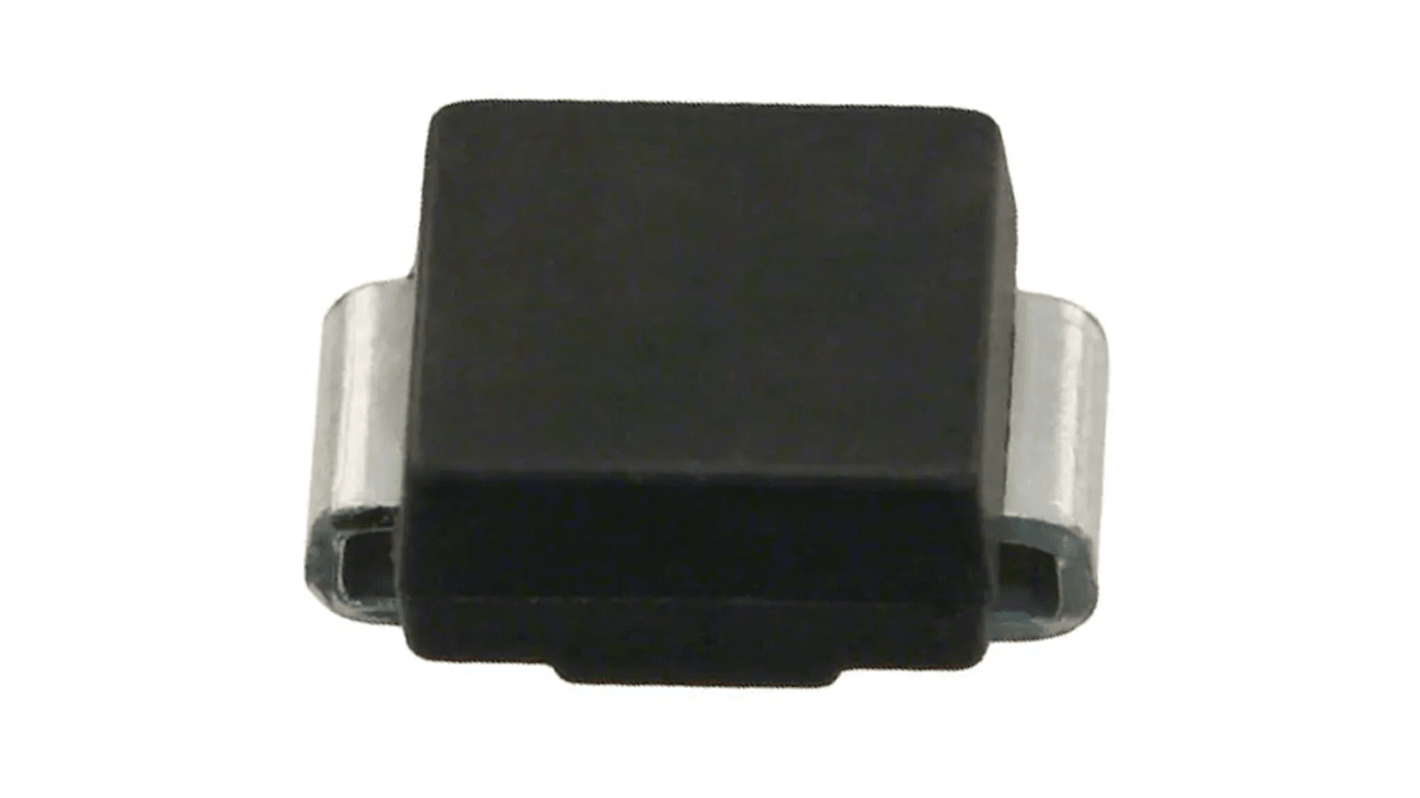

Vishay 1-Element Bi-Directional, Uni-Directional TVS Diode, 600 W, 2-Pin DO-214

View all TVS Diodes

Subtotal (1 reel of 750 units)*

£76.50

(exc. VAT)

£91.50

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 5,250 unit(s), ready to ship
Units
Per unit
Per Reel*
750 +£0.102£76.50

*price indicative

RS Stock No.:
180-7377
Mfr. Part No.:
SMBJ70CA-E3/52
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Direction Type

Bi-Directional, Uni-Directional

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

77.8V

Mount Type

Surface

Package Type

DO-214

Maximum Reverse Stand-off Voltage Vwm

70V

Pin Count

2

Peak Pulse Power Dissipation Pppm

600W

Minimum Operating Temperature

-55°C

Clamping Voltage VC

113V

Test Current It

1mA

Maximum Peak Pulse Current Ippm

5.3A

ESD Protection

Yes

Maximum Operating Temperature

150°C

Number of Elements per Chip

1

Standards/Approvals

No

Height

2.24mm

Series

TRANSZORB TVS

Width

3.94 mm

Length

4.57mm

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

1μA

COO (Country of Origin):
CN
The Vishay SMBJ70CA series surface mount transient voltage suppressor is available in uni-directional and bi-directional polarity which has peak pulse power dissipation is 600W. It has excellent clamping capability and use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication applications.

Low profile package

Ideal for automated placement

Low incremental surge resistance
