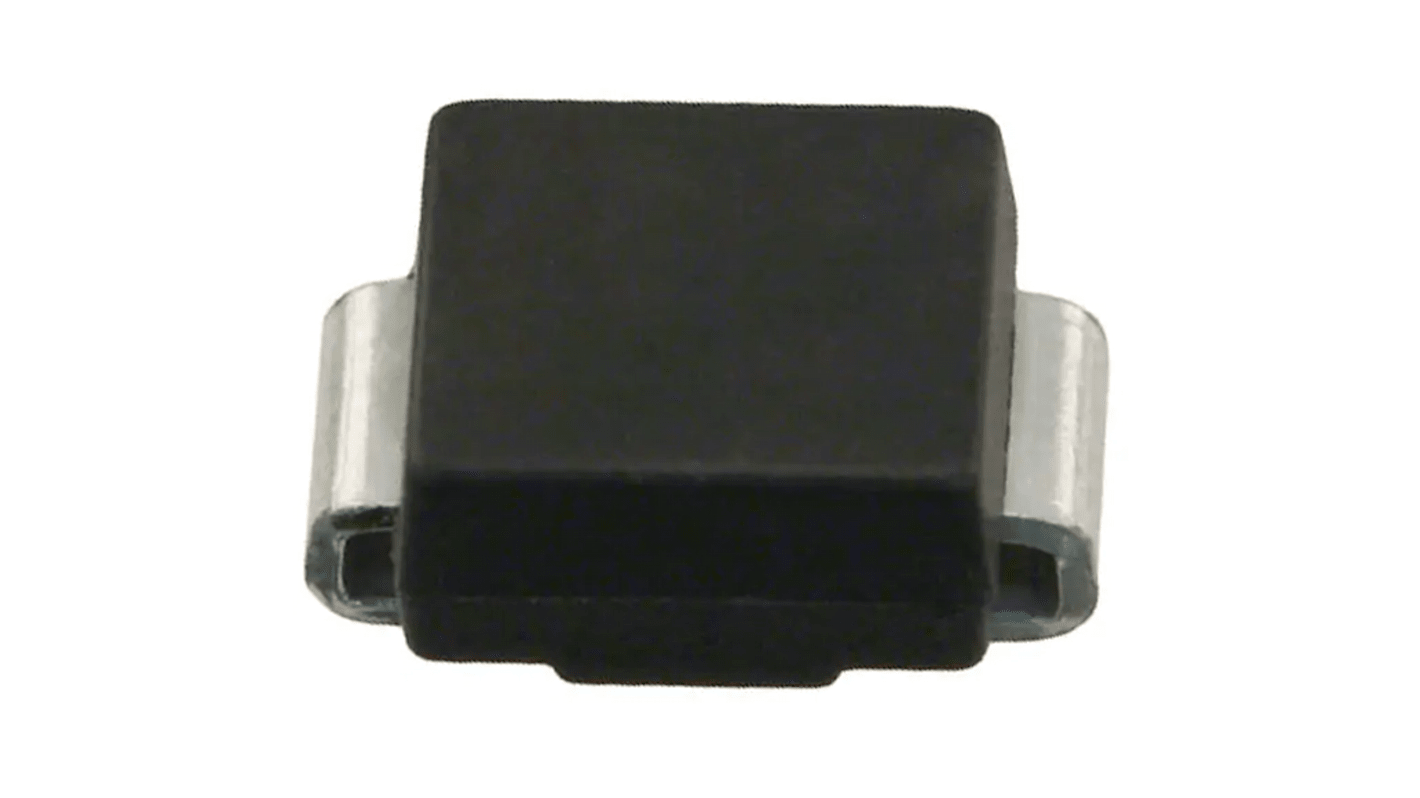

Vishay SMBJ7.0CA-E3/52, Bi-Directional, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

View all TVS Diodes

Subtotal (1 reel of 750 units)*

£90.75

(exc. VAT)

£108.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
750 +£0.121£90.75

*price indicative

RS Stock No.:
180-7376
Mfr. Part No.:
SMBJ7.0CA-E3/52
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Direction Type

Bi-Directional, Uni-Directional

Maximum Clamping Voltage

12V

Minimum Breakdown Voltage

7.78V

Mounting Type

Surface Mount

Package Type

DO-214AA

Pin Count

2

Peak Pulse Power Dissipation

600W

Number of Elements per Chip

1

COO (Country of Origin):
CN

Vishay TVS Diode


The Vishay SMB DO-214AA package, surface mount TransZorb unidirectional and bidirectional TVS diode has a breakdown voltage rating of 8.6V and peak pulse current rating of 50A.

Features and Benefits


• 600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01%
• Excellent clamping capability
• Fast response time
• Glass passivated chip junction
• Halogen and Lead (Pb) free component
• Ideal for automated placement
• Low incremental surge resistance
• Low profile package
• Meets MSL level 1, LF maximum peak of 260°C
• Operating junction temperature ranges between -55°C and 150°C
• Solderable matte tin plated lead terminals

Applications


• Automotive load dump
• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computers, industries and telecommunication

Certifications


• AEC-Q101 qualified
• JESD 201 class 2
• JESD 22-B102
• J-STD-002
• J-STD-020
• UL 94 V-0 listed
