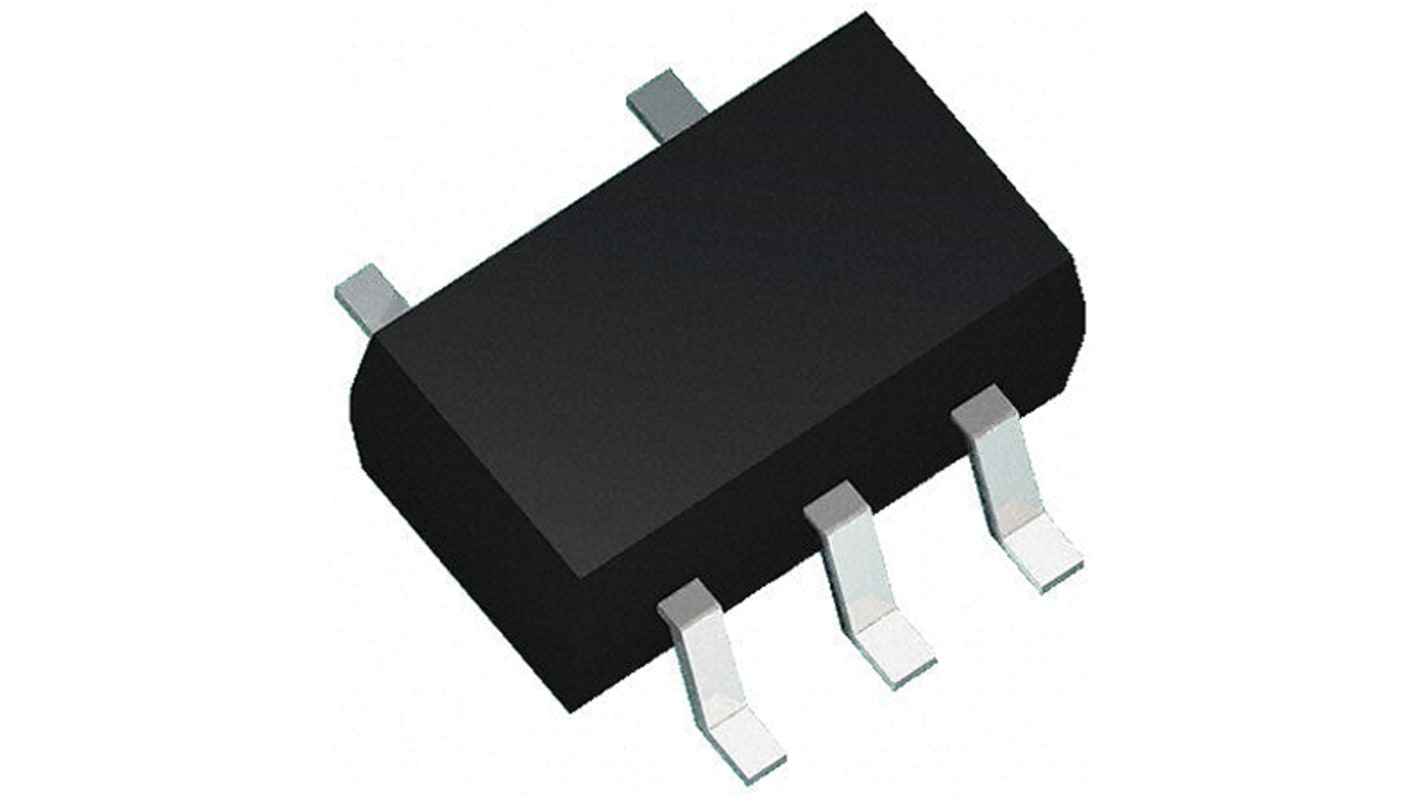

Littelfuse 4-Element Uni-Directional TVS Diode Array, 5-Pin SC-70
- RS Stock No.:
- 171-3874
- Mfr. Part No.:
- SP1001-04JTG
- Brand:
- Littelfuse
Subtotal (1 reel of 3000 units)*
£441.00
(exc. VAT)
£528.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.147 | £441.00 |
*price indicative
- RS Stock No.:
- 171-3874
- Mfr. Part No.:
- SP1001-04JTG
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | TVS Diode Array | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Array | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V | |
| Pin Count | 5 | |
| Minimum Operating Temperature | -40°C | |
| Clamping Voltage VC | 13V | |
| Maximum Peak Pulse Current Ippm | 2A | |
| ESD Protection | Yes | |
| Test Current It | 10mA | |
| Maximum Operating Temperature | 125°C | |
| Number of Elements per Chip | 4 | |
| Length | 2.25mm | |
| Width | 1.35 mm | |
| Series | SP1001 | |
| Standards/Approvals | No | |
| Height | 1mm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 100nA | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type TVS Diode Array | ||
Direction Type Uni-Directional | ||
Diode Configuration Array | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Maximum Reverse Stand-off Voltage Vwm 5.5V | ||
Pin Count 5 | ||
Minimum Operating Temperature -40°C | ||
Clamping Voltage VC 13V | ||
Maximum Peak Pulse Current Ippm 2A | ||
ESD Protection Yes | ||
Test Current It 10mA | ||
Maximum Operating Temperature 125°C | ||
Number of Elements per Chip 4 | ||
Length 2.25mm | ||
Width 1.35 mm | ||
Series SP1001 | ||
Standards/Approvals No | ||
Height 1mm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 100nA | ||
- COO (Country of Origin):
- TH
Products within the SP1001 series are appropriate for use in Automotive applications. Zener diodes fabricated in a proprietary silicon avalanche technology protect each I/O pin to provide a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes without performance degradation. Their very low loading capacitance also makes them ideal for protecting highspeed signal pins.
Low capacitance of 8pF (TYP) per I/O
ESD protection of ±15kV contact discharge, ±30kV air discharge
EFT protection
Low leakage current of 0.5μA (MAX) at 5V
Small package saves board space
Lightning Protection
Applications:
Computer Peripherals
Mobile Phones
Digital Cameras
Desktops/Notebooks
LCD/PDPTVs
SetTop Boxes
DVD Players
MP3/PMP
