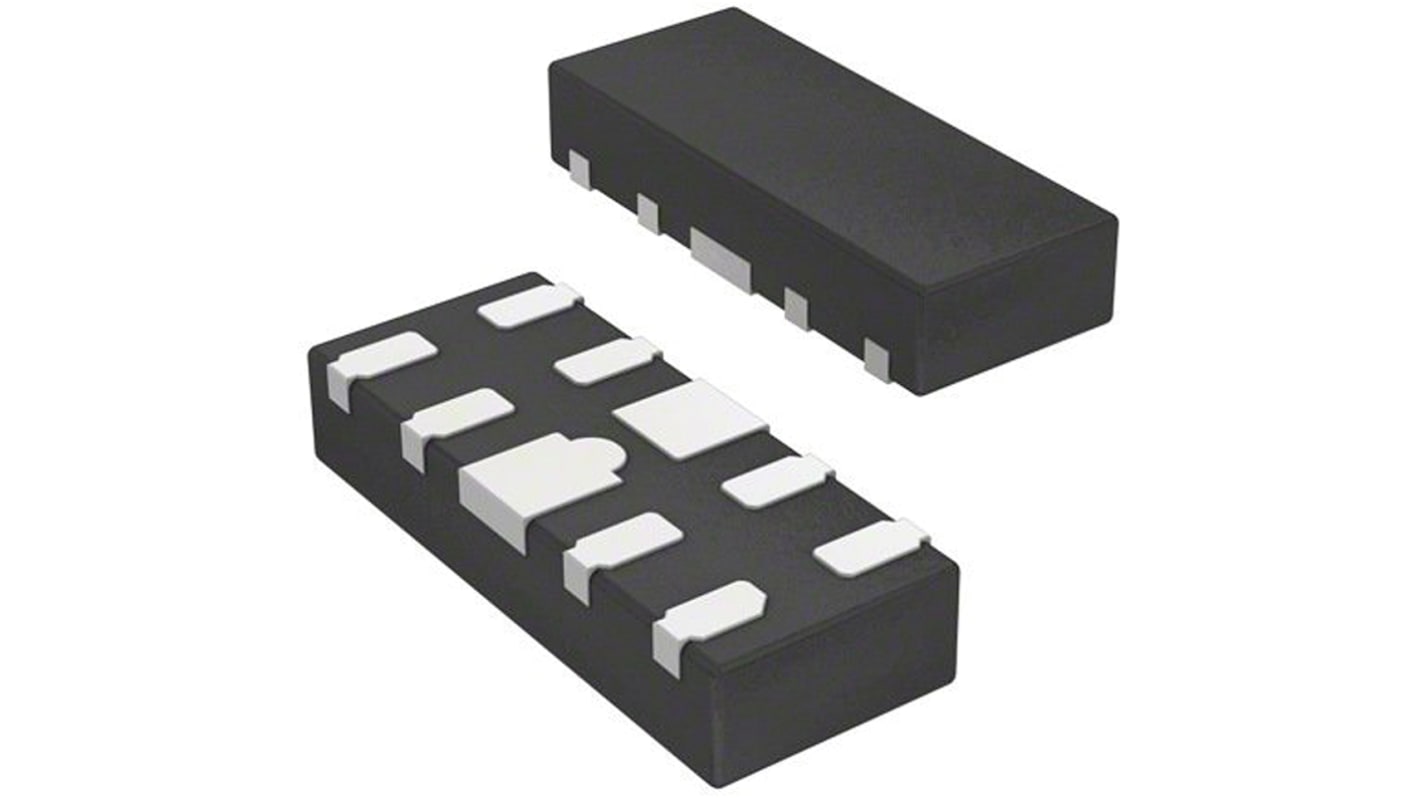

STMicroelectronics 4-Element EMI Filter & ESD Protector, 10-Pin QFN
- RS Stock No.:
- 168-8804
- Mfr. Part No.:
- ECMF04-4HSWM10
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£1,053.00
(exc. VAT)
£1,263.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.351 | £1,053.00 |
*price indicative
- RS Stock No.:
- 168-8804
- Mfr. Part No.:
- ECMF04-4HSWM10
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Complex Array | |
| Product Type | EMI Filter & ESD Protector | |
| Minimum Breakdown Voltage Vbr | 4.5V | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Maximum Reverse Stand-off Voltage Vwm | 3V | |
| Pin Count | 10 | |
| Minimum Operating Temperature | -40°C | |
| Test Current It | 1mA | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 4 | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.5mm | |
| Length | 2.65mm | |
| Series | ECMF04 | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 100nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Complex Array | ||
Product Type EMI Filter & ESD Protector | ||
Minimum Breakdown Voltage Vbr 4.5V | ||
Mount Type Surface | ||
Package Type QFN | ||
Maximum Reverse Stand-off Voltage Vwm 3V | ||
Pin Count 10 | ||
Minimum Operating Temperature -40°C | ||
Test Current It 1mA | ||
ESD Protection Yes | ||
Number of Elements per Chip 4 | ||
Maximum Operating Temperature 85°C | ||
Height 0.5mm | ||
Length 2.65mm | ||
Series ECMF04 | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 100nA | ||
- COO (Country of Origin):
- CN
Filter ICs, STMicroelectronics
Highly integrated common mode filters from STMicroelectronics designed to suppress EMI and RFI common mode noise on high-speed differential serial buses such as MIPI D-PHY, MDDI or USB 2.0. Some of the devices include a high power TVS to protect the bus from transient voltage surges.
