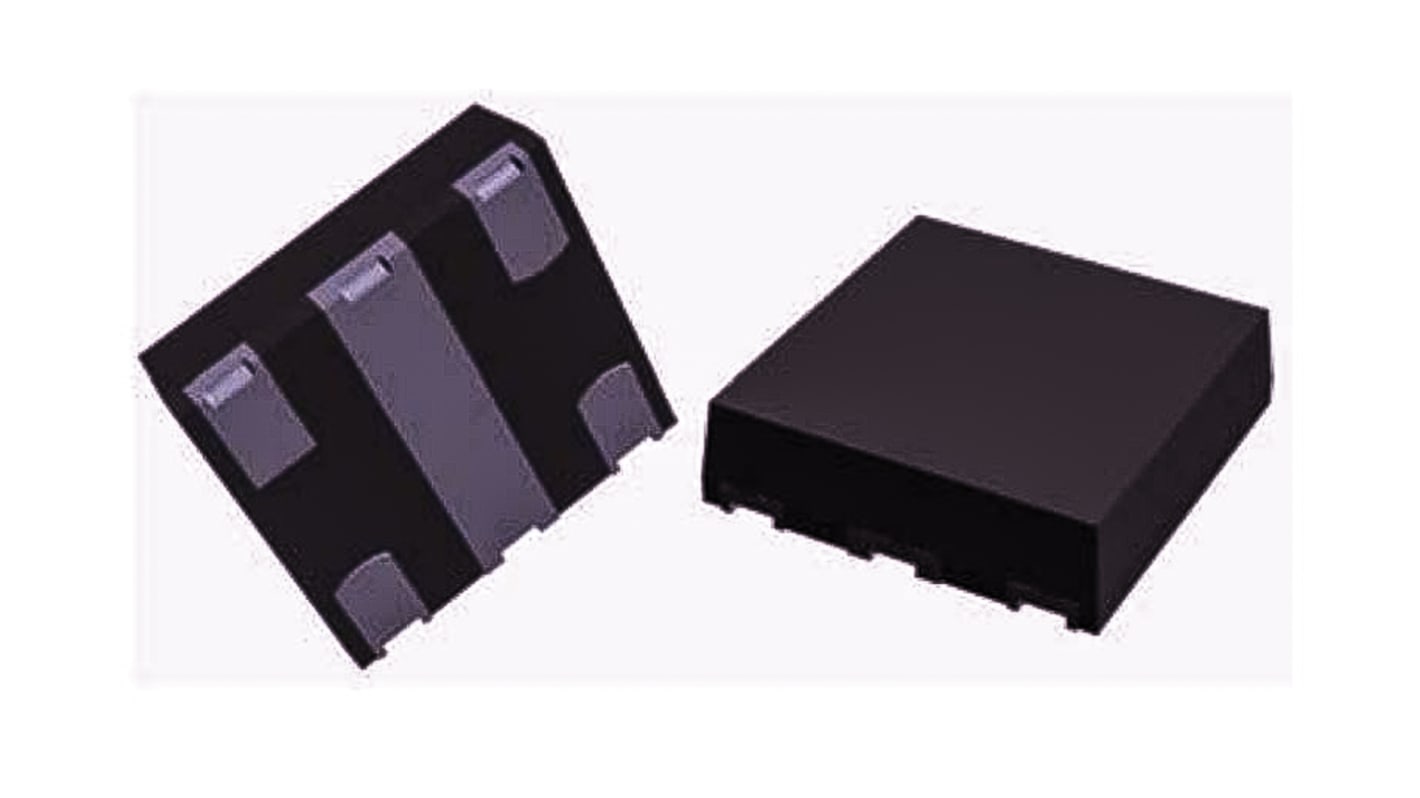

STMicroelectronics EMIF02-02OABRY, Quad-Element EMI Filter & ESD Protector, 6-Pin QFN
- RS Stock No.:
- 163-9742
- Mfr. Part No.:
- EMIF02-02OABRY
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.82
(exc. VAT)
£9.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 10 | £0.782 | £7.82 |
20 + | £0.743 | £7.43 |
*price indicative
- RS Stock No.:
- 163-9742
- Mfr. Part No.:
- EMIF02-02OABRY
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Clamping Voltage | 10.5V | |
Minimum Breakdown Voltage | 6V | |
Mounting Type | Surface Mount | |
Package Type | QFN | |
Pin Count | 6 | |
Maximum Peak Pulse Current | 1A | |
ESD Protection | Yes | |
Number of Elements per Chip | 4 | |
Minimum Operating Temperature | -40 °C | |
Maximum Operating Temperature | +125 °C | |
Dimensions | 3.05 x 3.05 x 0.9mm | |
Height | 0.9mm | |
Test Current | 20mA | |
Automotive Standard | AEC-Q101 | |
Length | 3.05mm | |
Width | 3.05mm | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Clamping Voltage 10.5V | ||
Minimum Breakdown Voltage 6V | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 6 | ||
Maximum Peak Pulse Current 1A | ||
ESD Protection Yes | ||
Number of Elements per Chip 4 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Dimensions 3.05 x 3.05 x 0.9mm | ||
Height 0.9mm | ||
Test Current 20mA | ||
Automotive Standard AEC-Q101 | ||
Length 3.05mm | ||
Width 3.05mm | ||
ST's automotive dataline ESD protection devices are monolithic transient voltage suppressors or application-specific discrete devices that guard against surges and against ESD. They protect components connected to data and transmission lines in applications such as automotive infotainment, navigation, communication and audio and video systems
Standard CANbus, LINbus, and FLEXray automotive interfaces
Flexibility in packaging and integration options
Flexibility in packaging and integration options
The EMIF02-02OABRY is a highly integrated solution designed to suppress EMI noise in BroadR Reach™ interfaces in automotive applications. This low pass filter includes a 15 kV protection and is housed in a 3 x 3 mm² wettable flanks QFN
Return loss (Sdd11 ) at 60 MHz:-20 dB
Components matching: 1% (between line 1 and 2)
Package Dimensions: 3.0 x 3.0 mm
Pitch: 1.1 μm
Wettable flank QFN
Components matching: 1% (between line 1 and 2)
Package Dimensions: 3.0 x 3.0 mm
Pitch: 1.1 μm
Wettable flank QFN
