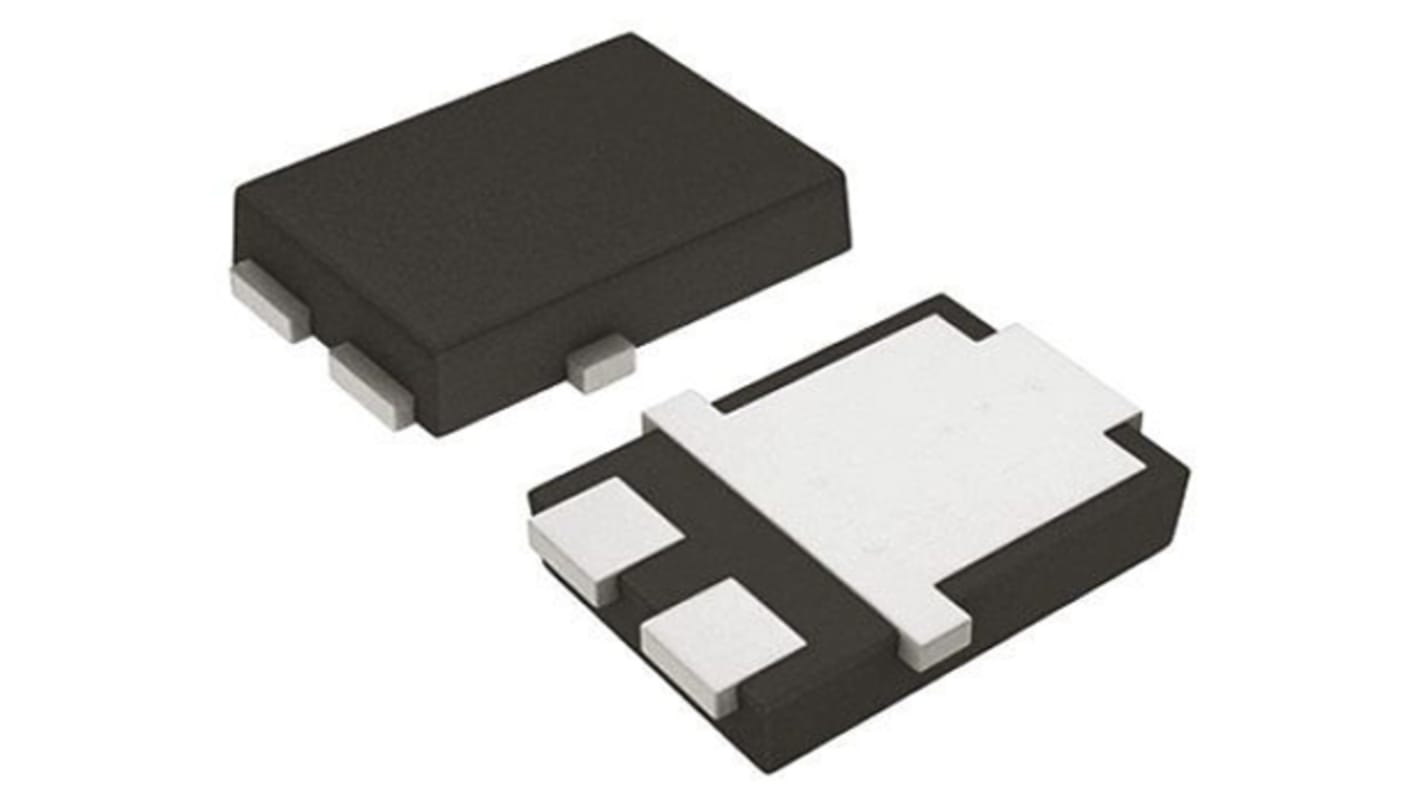

Vishay TPC16CAHM3/H, Bi-Directional TVS Diode, 1500W, 3-Pin TO-277A

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 10 units)*

£6.19

(exc. VAT)

£7.43

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 90£0.619£6.19
100 - 240£0.52£5.20
250 - 490£0.46£4.60
500 - 990£0.447£4.47
1000 +£0.436£4.36

*price indicative

Packaging Options:
RS Stock No.:
124-2234
Mfr. Part No.:
TPC16CAHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Bi-Directional

Diode Configuration

Single

Maximum Clamping Voltage

22.5V

Minimum Breakdown Voltage

15.2V

Mounting Type

Surface Mount

Package Type

TO-277A

Maximum Reverse Stand-off Voltage

13.6V

Pin Count

3

Peak Pulse Power Dissipation

1500W

Maximum Peak Pulse Current

66.7A

ESD Protection

Yes

Number of Elements per Chip

1

Minimum Operating Temperature

-65 °C

Dimensions

6.15 x 4.35 x 1.2mm

Maximum Operating Temperature

+185 °C

Maximum Reverse Leakage Current

1µA

Test Current

1mA

Width

4.35mm

Height

1.2mm

Length

6.15mm

COO (Country of Origin):
CN

PAR® Transient Voltage Suppressors SMT Bidirectional 1500W, TPC Series, Vishay Semiconductor


Low profile with typical height of 1.1 mm
Excellent clamping capability
Low leakage current
Very fast response time
AEC-Q101 qualified
TO-277A (SMPC) Package


Transient Voltage Suppressors, Vishay Semiconductor
