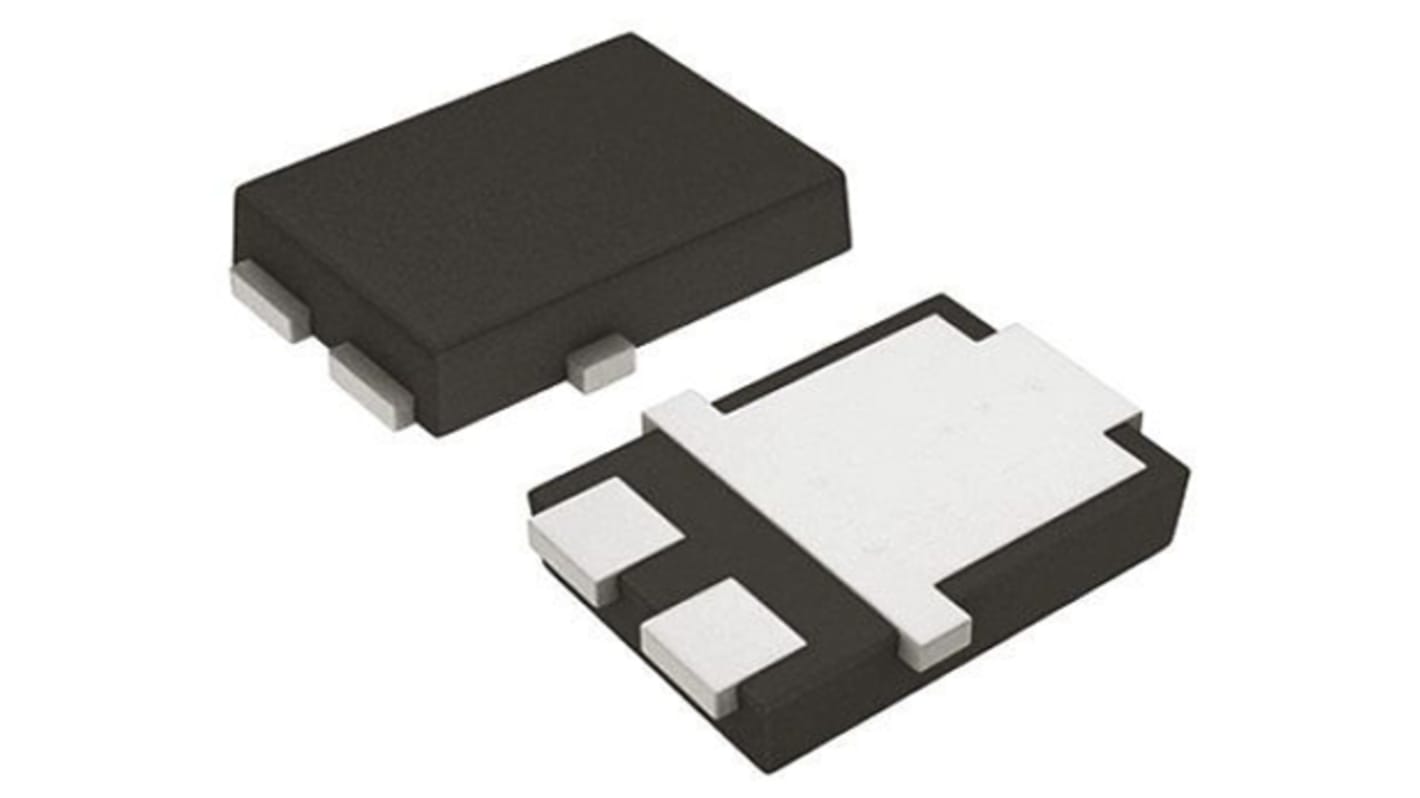

Vishay TPC12CAHM3/H 1-Element Bi-Directional TVS Diode, 1.5 kW, 3-Pin TO-277

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 10 units)*

£5.73

(exc. VAT)

£6.88

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 90£0.573£5.73
100 - 240£0.447£4.47
250 - 490£0.402£4.02
500 - 990£0.382£3.82
1000 +£0.372£3.72

*price indicative

Packaging Options:
RS Stock No.:
124-2231
Mfr. Part No.:
TPC12CAHM3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Bi-Directional

Product Type

TVS Diode

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

11.4V

Mount Type

Surface

Package Type

TO-277

Maximum Reverse Stand-off Voltage Vwm

10.2V

Pin Count

3

Peak Pulse Power Dissipation Pppm

1.5kW

Minimum Operating Temperature

-65°C

Test Current It

1mA

Clamping Voltage VC

16.7V

ESD Protection

Yes

Maximum Peak Pulse Current Ippm

89.8A

Maximum Operating Temperature

185°C

Number of Elements per Chip

1

Height

1.2mm

Width

4.35 mm

Series

eSMP

Standards/Approvals

No

Length

6.15mm

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

2μA

COO (Country of Origin):
CN

PAR® Transient Voltage Suppressors SMT Bidirectional 1500W, TPC Series, Vishay Semiconductor


Low profile with typical height of 1.1 mm

Excellent clamping capability

Low leakage current

Very fast response time

AEC-Q101 qualified

TO-277A (SMPC) Package

Transient Voltage Suppressors, Vishay Semiconductor
