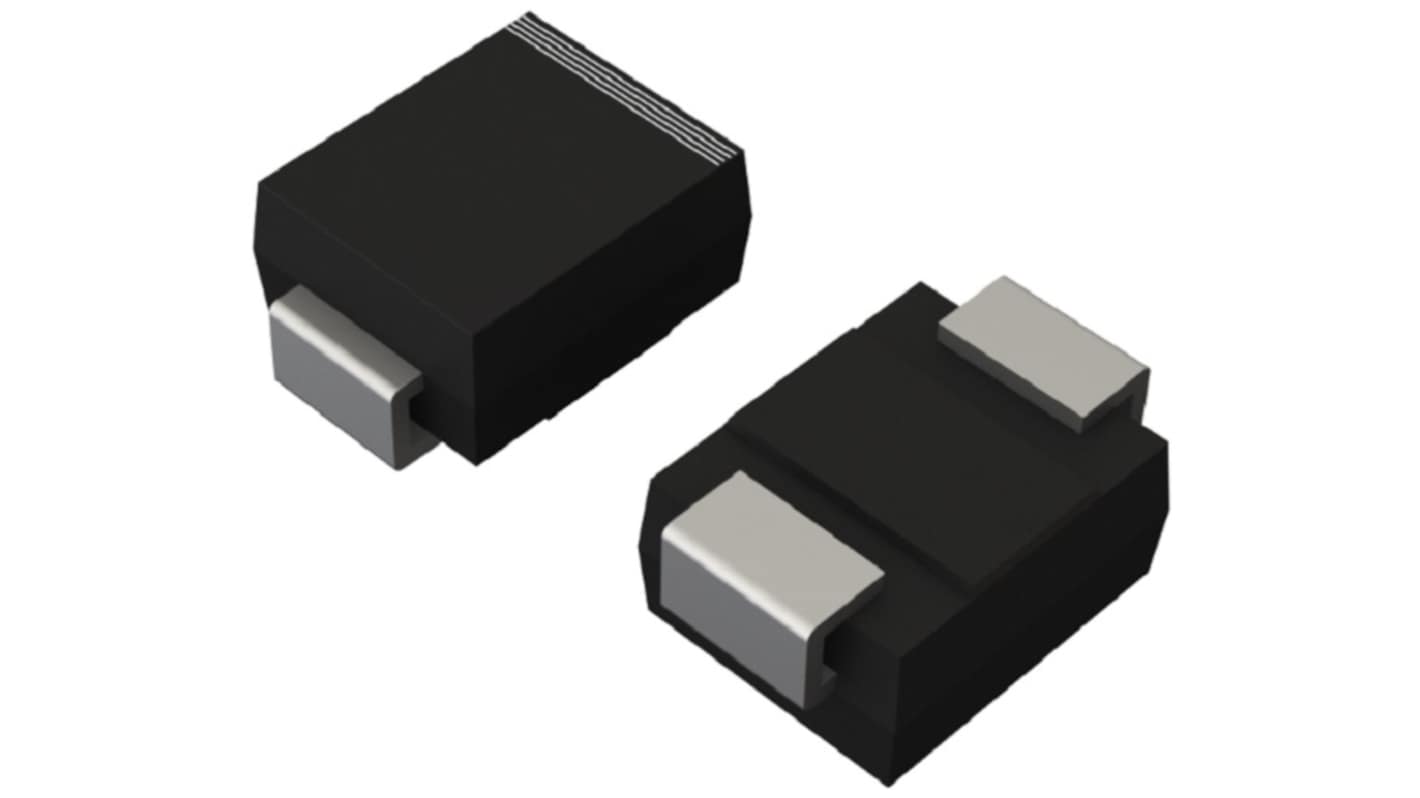

ROHM VS12VUA1LBTBR1 2-Element Uni-Directional TVS Diodes, 600 W, 2-Pin SMBP
- RS Stock No.:
- 687-492
- Mfr. Part No.:
- VS12VUA1LBTBR1
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 2 units)*
£1.67
(exc. VAT)
£2.004
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | £0.835 | £1.67 |
| 20 - 48 | £0.41 | £0.82 |
| 50 - 198 | £0.18 | £0.36 |
| 200 - 998 | £0.175 | £0.35 |
| 1000 + | £0.17 | £0.34 |
*price indicative
- RS Stock No.:
- 687-492
- Mfr. Part No.:
- VS12VUA1LBTBR1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Diode Configuration | Single | |
| Product Type | TVS Diodes | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 13.3V | |
| Mount Type | Surface | |
| Package Type | SMBP | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 600W | |
| Clamping Voltage VC | 19.9V | |
| Maximum Operating Temperature | 150°C | |
| Number of Elements per Chip | 2 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Diode Configuration Single | ||
Product Type TVS Diodes | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 13.3V | ||
Mount Type Surface | ||
Package Type SMBP | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 600W | ||
Clamping Voltage VC 19.9V | ||
Maximum Operating Temperature 150°C | ||
Number of Elements per Chip 2 | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The ROHM Transient voltage suppressor designed for effective surge protection in a variety of electronic applications. This high-reliability component features a small power mould type configuration, making it ideal for space-constrained environments. It ensures sensitive devices are safeguarded against voltage spikes, offering peak pulse power handling of 600 W and a high peak pulse current capacity of 30.2 A. Its versatile design suits applications where reliability is critical while maintaining exceptional performance even in challenging conditions.
Designed for high reliability in sensitive electronic circuits
Compact power mould type enhances design flexibility
Effective surge protection up to 30.2 A peak pulse current
Withstands peak pulse power of 600 W, ensuring longevity
Wide operating temperature range from -55 to 150 °C, suitable for diverse environments
Packaged in embossed tape for efficient handling and storage
Rated for a storage temperature range, preserving integrity over time
Marking system simplifies identification and inventory processes
