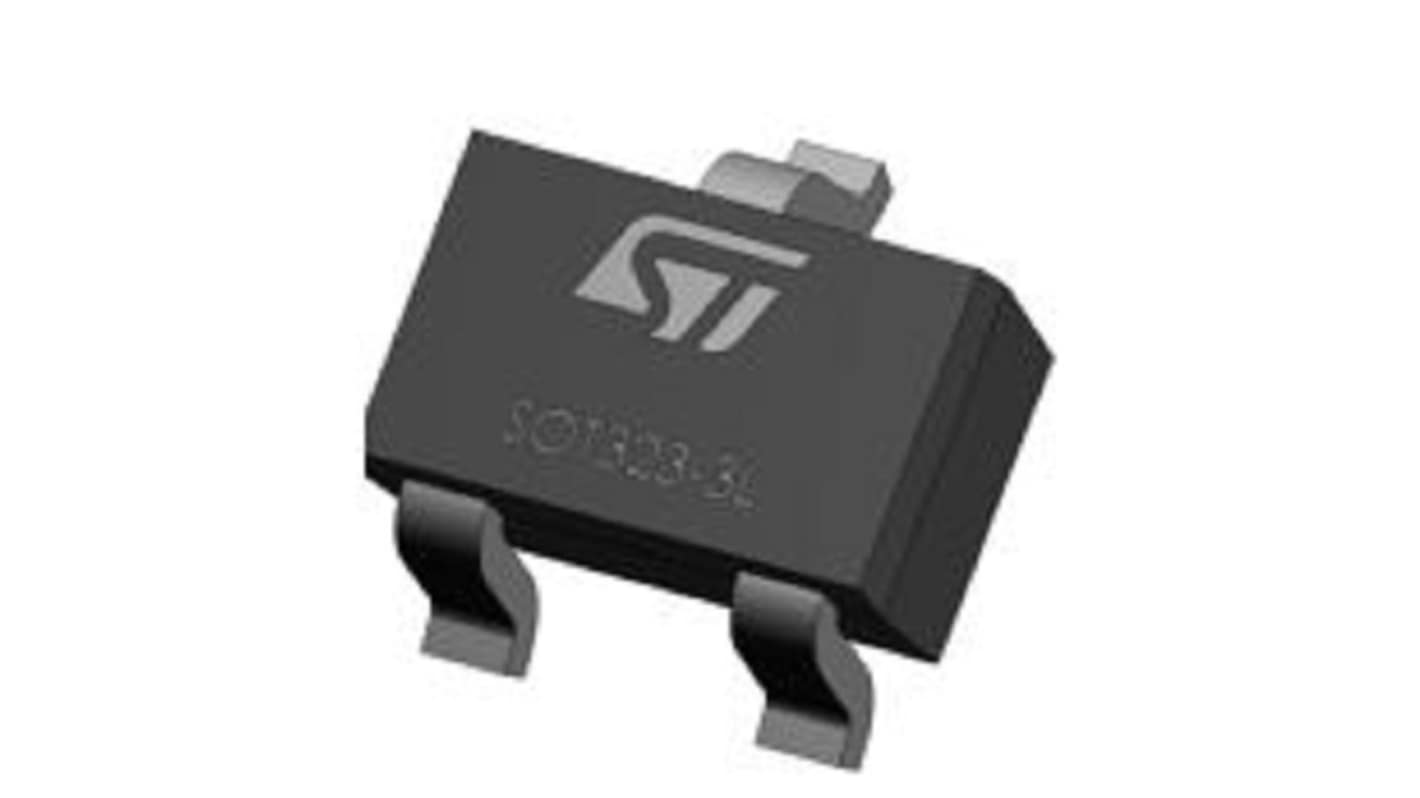

STMicroelectronics 2-Element Uni-Directional TVS Diode, 250 W, 3-Pin SOT-323-3L
- RS Stock No.:
- 366-213
- Mfr. Part No.:
- ESDA18WY
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£0.16
(exc. VAT)
£0.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.16 |
| 10 - 99 | £0.14 |
| 100 - 499 | £0.13 |
| 500 - 999 | £0.12 |
| 1000 + | £0.11 |
*price indicative
- RS Stock No.:
- 366-213
- Mfr. Part No.:
- ESDA18WY
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | TVS Diode | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Dual | |
| Minimum Breakdown Voltage Vbr | 12V | |
| Mount Type | Surface | |
| Package Type | SOT-323-3L | |
| Maximum Reverse Stand-off Voltage Vwm | 16V | |
| Pin Count | 3 | |
| Peak Pulse Power Dissipation Pppm | 250W | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | Yes | |
| Test Current It | 1mA | |
| Clamping Voltage VC | 23V | |
| Maximum Peak Pulse Current Ippm | 13A | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.8mm | |
| Series | ESDAxxWY | |
| Standards/Approvals | UL94 V0, PPAP, J-STD-020 MSL 1, JEDEC, ISO 7637-3, ISO 10605, IPC7531, AEC-Q101 | |
| Length | 1.8mm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 0.05μA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type TVS Diode | ||
Direction Type Uni-Directional | ||
Diode Configuration Dual | ||
Minimum Breakdown Voltage Vbr 12V | ||
Mount Type Surface | ||
Package Type SOT-323-3L | ||
Maximum Reverse Stand-off Voltage Vwm 16V | ||
Pin Count 3 | ||
Peak Pulse Power Dissipation Pppm 250W | ||
Minimum Operating Temperature -55°C | ||
ESD Protection Yes | ||
Test Current It 1mA | ||
Clamping Voltage VC 23V | ||
Maximum Peak Pulse Current Ippm 13A | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 175°C | ||
Height 1.8mm | ||
Series ESDAxxWY | ||
Standards/Approvals UL94 V0, PPAP, J-STD-020 MSL 1, JEDEC, ISO 7637-3, ISO 10605, IPC7531, AEC-Q101 | ||
Length 1.8mm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 0.05μA | ||
The STMicroelectronics Automotive unidirectional transient voltage suppressor has been designed for use in harsh environments to protect sensitive electronics from damage or latch up due to electrical overstress, lightning surge and ESD without ageing effect and performance drifts. It can therefore advantageously replace MOV (metal oxide varistor) or MLV (multi layer varistor) as well as zener diodes, which are optimized for voltage regulation. It is the right choice for high reliability and quality systems.
AEC-Q101 qualified and PPAP capable
Dual line unidirectional ESD and EOS protection
High ESD protection level up to 30 kV
Fast turn-on and low clamping voltage
Operating Tj max 175 °C
SOT 323-3L package
ECOPACK2 RoHS compliant component
