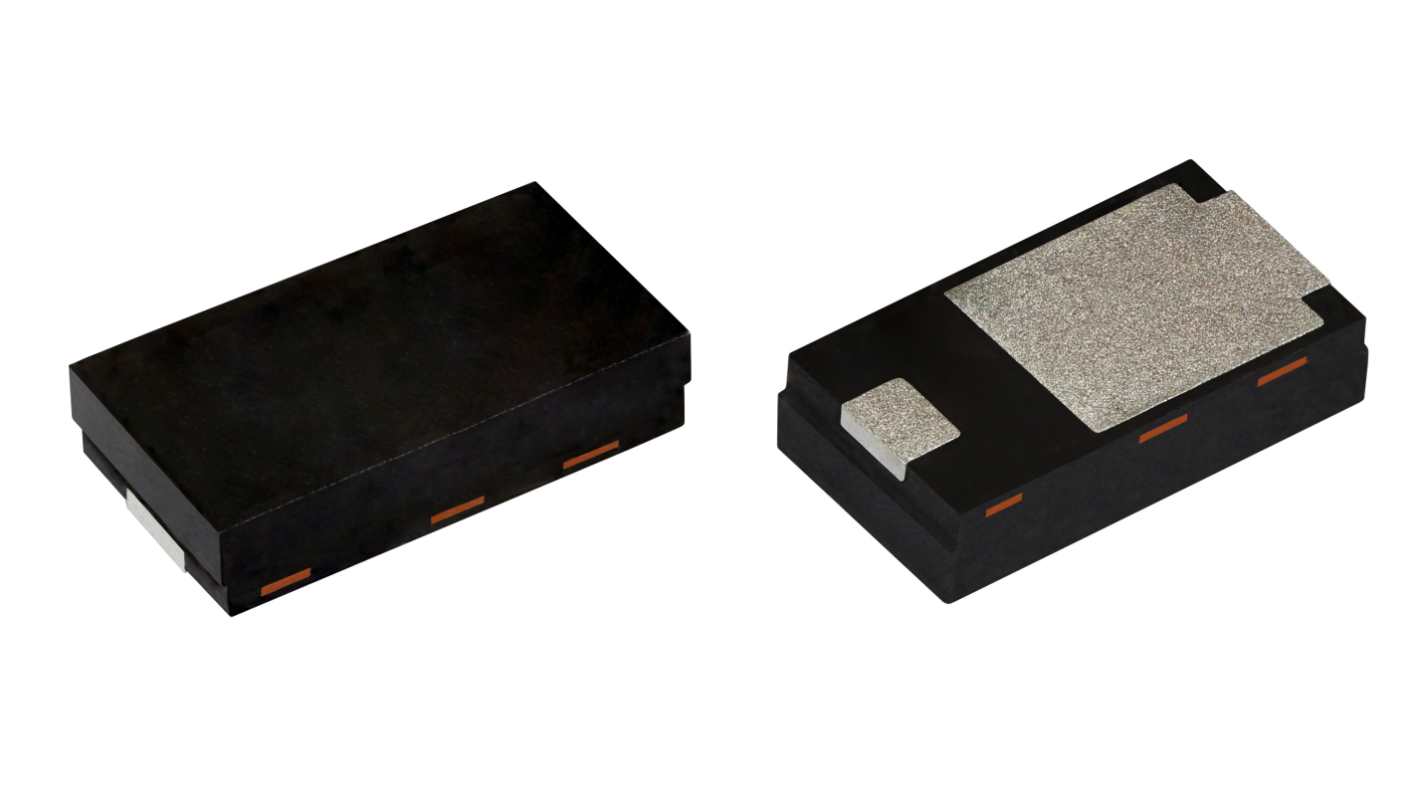

Vishay 6DFN20CA-M3/I 2-Element Bi-Directional ESD Protection Diode, 600 W, 2-Pin DFN3820A
- RS Stock No.:
- 277-407
- Mfr. Part No.:
- 6DFN20CA-M3/I
- Brand:
- Vishay
Subtotal (1 reel of 14000 units)*
£1,750.00
(exc. VAT)
£2,100.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 14,000 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 14000 + | £0.125 | £1,750.00 |
*price indicative
- RS Stock No.:
- 277-407
- Mfr. Part No.:
- 6DFN20CA-M3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Direction Type | Bi-Directional | |
| Product Type | ESD Protection Diode | |
| Diode Configuration | Single | |
| Minimum Breakdown Voltage Vbr | 19V | |
| Mount Type | Surface | |
| Package Type | DFN3820A | |
| Maximum Reverse Stand-off Voltage Vwm | 17.1V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 600W | |
| Test Current It | 1mA | |
| Minimum Operating Temperature | -65°C | |
| Clamping Voltage VC | 27.7V | |
| Maximum Peak Pulse Current Ippm | 21.7A | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 175°C | |
| Number of Elements per Chip | 2 | |
| Standards/Approvals | UL 94 V-0 Base P/N-M3-Halogen Free, per J-STD-020, RoHS, MSL Level 1 | |
| Height | 0.98mm | |
| Series | 6DFN12CA thru 6DFN100CA | |
| Length | 3.95mm | |
| Maximum Reverse Leakage Current | 5μA | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Direction Type Bi-Directional | ||
Product Type ESD Protection Diode | ||
Diode Configuration Single | ||
Minimum Breakdown Voltage Vbr 19V | ||
Mount Type Surface | ||
Package Type DFN3820A | ||
Maximum Reverse Stand-off Voltage Vwm 17.1V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 600W | ||
Test Current It 1mA | ||
Minimum Operating Temperature -65°C | ||
Clamping Voltage VC 27.7V | ||
Maximum Peak Pulse Current Ippm 21.7A | ||
ESD Protection Yes | ||
Maximum Operating Temperature 175°C | ||
Number of Elements per Chip 2 | ||
Standards/Approvals UL 94 V-0 Base P/N-M3-Halogen Free, per J-STD-020, RoHS, MSL Level 1 | ||
Height 0.98mm | ||
Series 6DFN12CA thru 6DFN100CA | ||
Length 3.95mm | ||
Maximum Reverse Leakage Current 5μA | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The Vishay Transient Voltage Suppressor comes in a DFN3820A package which protects sensitive electronics from voltage transients caused by inductive load switching and lightning. Made with halogen free, RoHS compliant materials and industrial grade terminals, it is Ideal for use in consumer electronics, computers, medical devices, and telecommunications. The TVS ensures protection for ICs, MOSFETs, and sensor signal lines, enhancing the durability of electronic components in various industries.
Leadless DFN package with side wettable flanks suitable for customer AOI
Ideal for automated placement
Junction passivation optimized design passivated anisotropic rectifier technology
Bidirectional
Excellent clamping capability
