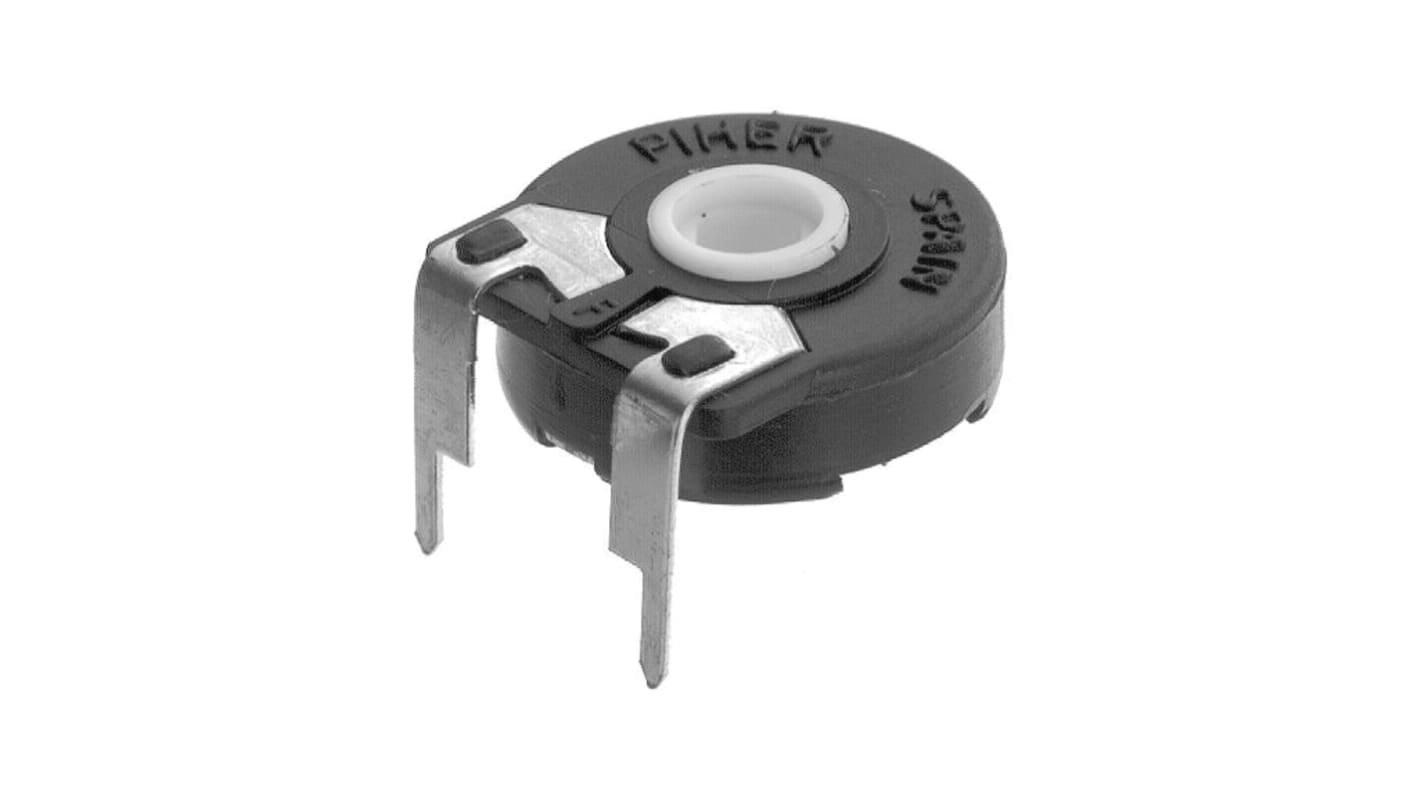

22 kΩ, Through Hole Trimmer Potentiometer, Solder Pin 250 mW Top Adjust PIHER SENSORS AND CONTROLS S.S.A, PT-15
- RS Stock No.:
- 285-8663
- Distrelec Article No.:
- 164-40-077
- Mfr. Part No.:
- PT15NV17223A2020IPMS
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Subtotal (1 unit)*
£1.41
(exc. VAT)
£1.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4,998 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.41 |
*price indicative
- RS Stock No.:
- 285-8663
- Distrelec Article No.:
- 164-40-077
- Mfr. Part No.:
- PT15NV17223A2020IPMS
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PIHER SENSORS AND CONTROLS S.S.A | |
| Product Type | Trimmer Potentiometer | |
| Maximum Resistance | 22kΩ | |
| Mount Type | Through Hole | |
| Number of Turns | 1 | |
| Orientation | Top Adjust | |
| Power Rating | 250mW | |
| Series | PT-15 | |
| Termination Style | Solder Pin | |
| Automotive Standard | No | |
| Tolerance ± | 20% | |
| Temperature Coefficient | ±300 ppm/°C | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand PIHER SENSORS AND CONTROLS S.S.A | ||
Product Type Trimmer Potentiometer | ||
Maximum Resistance 22kΩ | ||
Mount Type Through Hole | ||
Number of Turns 1 | ||
Orientation Top Adjust | ||
Power Rating 250mW | ||
Series PT-15 | ||
Termination Style Solder Pin | ||
Automotive Standard No | ||
Tolerance ± 20% | ||
Temperature Coefficient ±300 ppm/°C | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- ES
The potentiometer features a carbon resistive element and has IP54 protection according to IEC 60529. With a polyester substrate and options for long life models, low torque, and automatic insertion, It offers versatility and durability. The potentiometer has a mechanical rotation angle of 265° ± 5° and an electrical rotation angle of 240° ± 20°, with a torque range of 0.5 to 2.5 Ncm. It has a maximum voltage of 250 VDC and 125 VDC and a nominal power of 0.25 W and 0.12 W. With a life of up to 100K cycles, this potentiometer is designed for reliable and long-lasting performance.
Carbon resistive element for excellent electrical conductivity
IP54 protection for durability and reliability
Polyester substrate for added strength
Options for long life models, low torque, and automatic insertion
Mechanical rotation angle of 265° ± 5° for precise control
Electrical rotation angle of 240° ± 20° for accurate measurements
Torque range of 0.5 to 2.5 Ncm for smooth operation
Life of up to 100K cycles for long-lasting use
