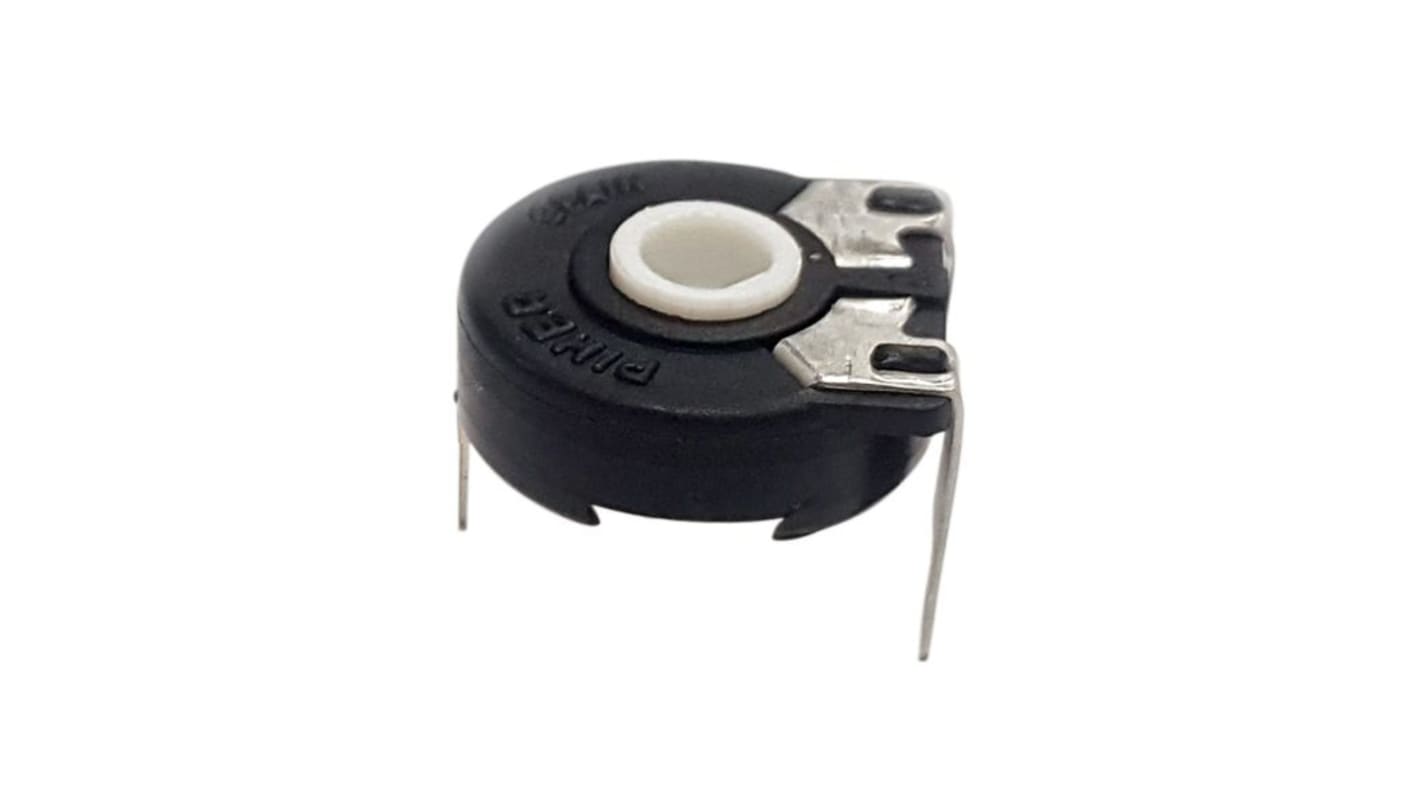

100 kΩ, Through Hole Trimmer Potentiometer 250 mW PIHER SENSORS AND CONTROLS S.S.A, PT 15
- RS Stock No.:
- 283-6459
- Distrelec Article No.:
- 302-44-872
- Mfr. Part No.:
- PT15NV15-104A2020-S
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 283-6459
- Distrelec Article No.:
- 302-44-872
- Mfr. Part No.:
- PT15NV15-104A2020-S
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PIHER SENSORS AND CONTROLS S.S.A | |
| Maximum Resistance | 100kΩ | |
| Product Type | Trimmer Potentiometer | |
| Mount Type | Through Hole | |
| Number of Turns | 1 | |
| Power Rating | 250mW | |
| Series | PT 15 | |
| Automotive Standard | No | |
| Tolerance ± | 0.2% | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand PIHER SENSORS AND CONTROLS S.S.A | ||
Maximum Resistance 100kΩ | ||
Product Type Trimmer Potentiometer | ||
Mount Type Through Hole | ||
Number of Turns 1 | ||
Power Rating 250mW | ||
Series PT 15 | ||
Automotive Standard No | ||
Tolerance ± 0.2% | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
The 15-mm carbon / cermet through-hole potentiometer designed for applications where frequent adjustment is required. It offers excellent performance with up to 3% linearity and has a carbon or cermet resistive element. With up to 38 mechanical detents for tactile feedback and a life cycle of up to 100,000 cycles, this potentiometer provides accurate control and long-lasting durability. It also features IP54 protection for reliable operation in various environments.
15-mm carbon / cermet through-hole potentiometer
Excellent performance with up to 3% linearity
Carbon or cermet resistive element
Up to 38 mechanical detents for tactile feedback
Up to 100,000 life cycles for long-lasting durability
IP54 protection for reliable operation in various environments
Suitable for appliance program selection, thermostat adjustment, power tool controls, consumer electronics, and more
