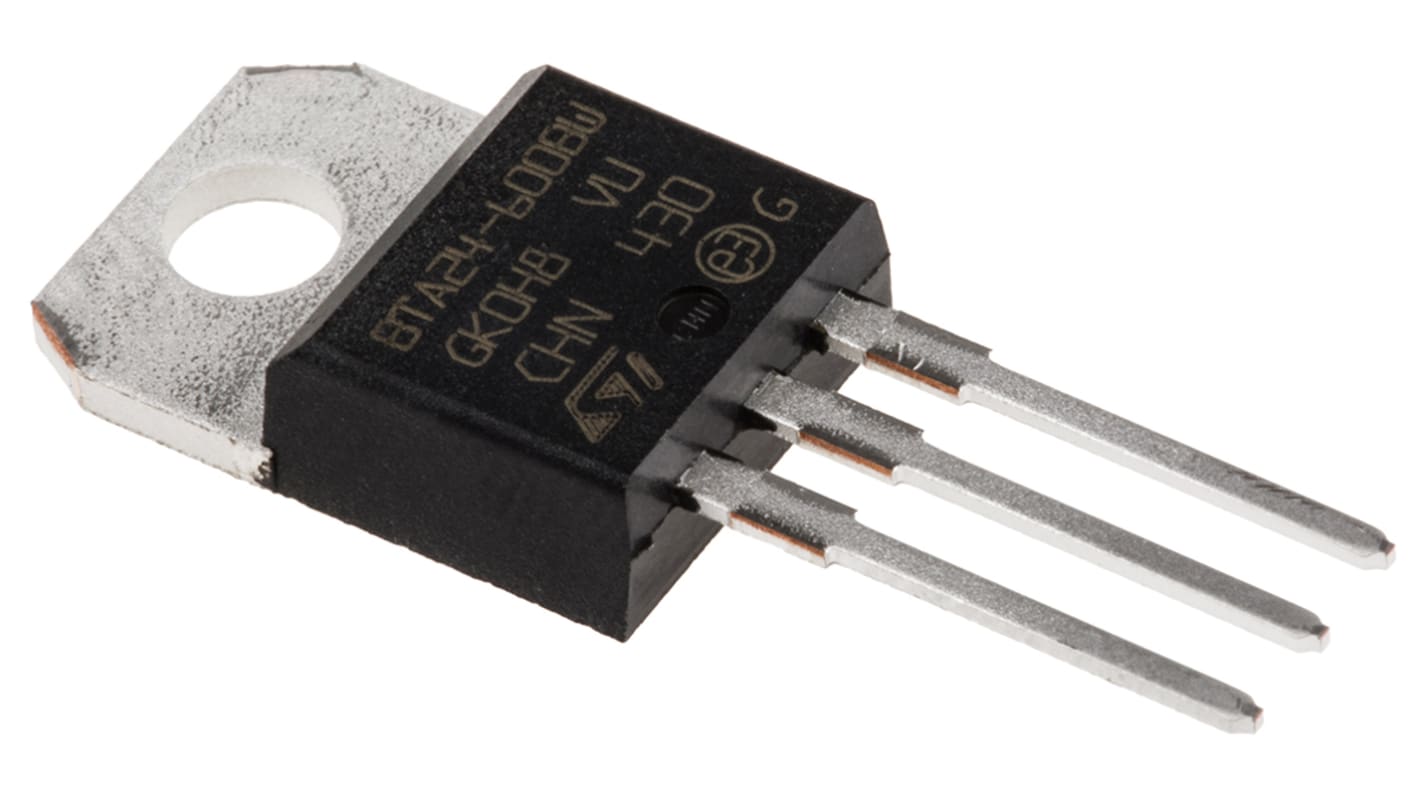

BTA24-600BWRG 25A, 600V, TRIAC, Gate Trigger 1.3V 50mA, 3-pin, Through Hole, TO-220AB STMicroelectronics

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TRIAC, 25A to 40A, STMicroelectronics

TRIACs, STMicroelectronics

Specifications
Attribute Value
Rated Average On-State Current 25A
Mounting Type Through Hole
Package Type TO-220AB
Maximum Gate Trigger Current 50mA
Repetitive Peak Reverse Voltage 600V
Surge Current Rating 260A
Pin Count 3
Maximum Gate Trigger Voltage 1.3V
Repetitive Peak Forward Blocking Voltage 600V
Maximum Holding Current 75mA
Dimensions 10.4 x 4.6 x 9.3mm
Length 10.4mm
Width 4.6mm
Height 9.3mm
Minimum Operating Temperature -40 °C
Peak On-State Voltage 1.55V
Repetitive Peak Off-State Current 0.005mA
Maximum Operating Temperature +125 °C
166 In stock for FREE next working day delivery
Price Each (In a Pack of 2)
£ 1.945
(exc. VAT)
£ 2.334
(inc. VAT)
Units
Per unit
Per Pack*
2 - 8
£1.945
£3.89
10 - 18
£1.545
£3.09
20 - 38
£1.495
£2.99
40 - 98
£1.435
£2.87
100 +
£1.24
£2.48
*price indicative
