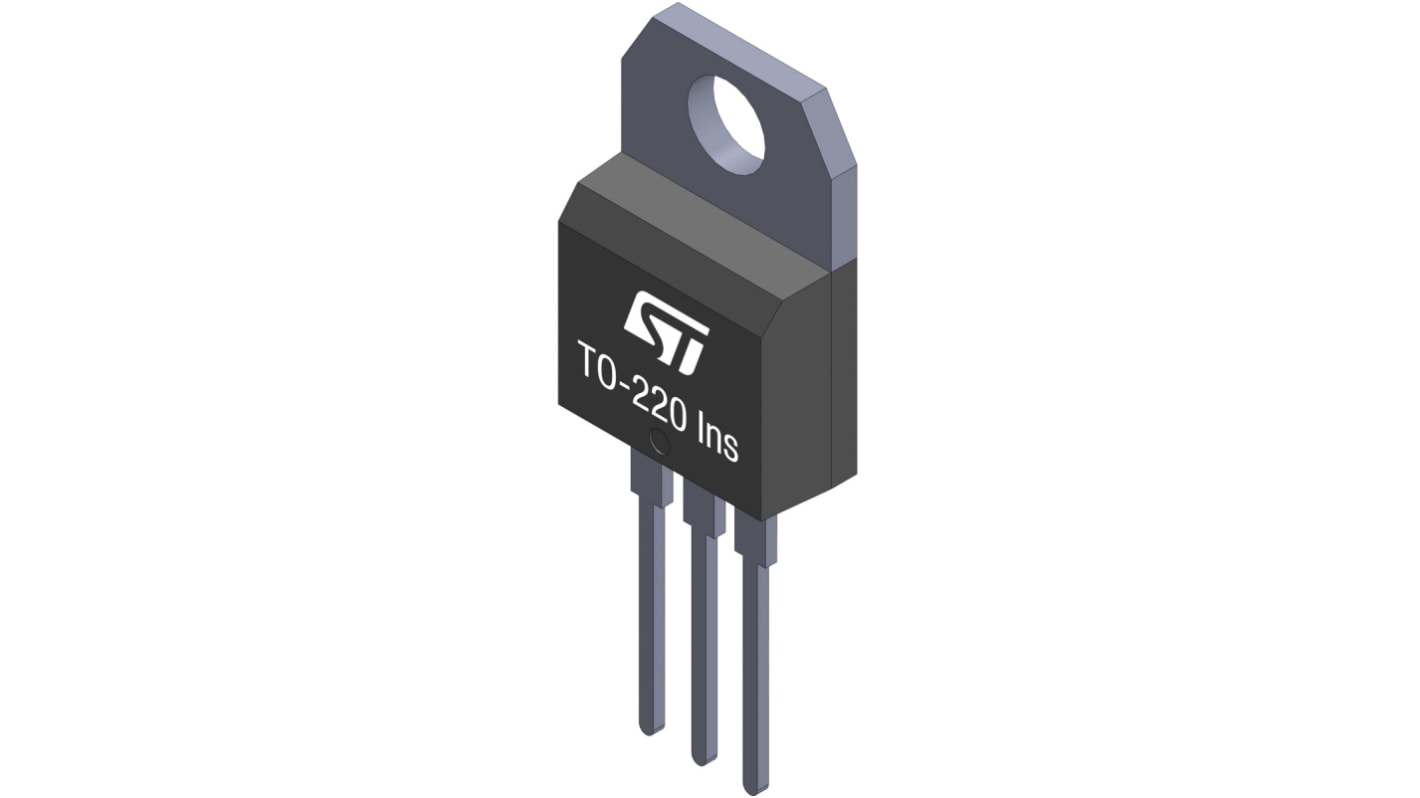

STMicroelectronics Through Hole, 3-pin, TRIAC, 800V
- RS Stock No.:
- 188-8264
- Mfr. Part No.:
- BTA24-800CWRG
- Brand:
- STMicroelectronics
Subtotal (1 tube of 50 units)*
£80.60
(exc. VAT)
£96.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,050 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £1.612 | £80.60 |
*price indicative
- RS Stock No.:
- 188-8264
- Mfr. Part No.:
- BTA24-800CWRG
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Rated Average On-State Current | 25A | |
| Mounting Type | Through Hole | |
| Package Type | TO-220AB | |
| Maximum Gate Trigger Current | 50mA | |
| Surge Current Rating | 260A | |
| Pin Count | 3 | |
| Repetitive Peak Forward Blocking Voltage | 800V | |
| Maximum Holding Current | 50mA | |
| Dimensions | 10.4 x 4.6 x 15.9mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| Height | 15.9mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Rated Average On-State Current 25A | ||
Mounting Type Through Hole | ||
Package Type TO-220AB | ||
Maximum Gate Trigger Current 50mA | ||
Surge Current Rating 260A | ||
Pin Count 3 | ||
Repetitive Peak Forward Blocking Voltage 800V | ||
Maximum Holding Current 50mA | ||
Dimensions 10.4 x 4.6 x 15.9mm | ||
Length 10.4mm | ||
Width 4.6mm | ||
Height 15.9mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Available either in through-hole or surface-mount packages, the BTA24, BTB24, BTA25, BTA26, BTB26 and T25 triac series is suitable for general purpose mains power AC switching.
High current triac
High commutation (4 quadrant) or very high commutation (3 quadrant) capability
Low thermal resistance with clip bonding
Applications
Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc.or for phase control operation in light dimmers, motor speed controllers, and silmilar
The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 VRMS)
High commutation (4 quadrant) or very high commutation (3 quadrant) capability
Low thermal resistance with clip bonding
Applications
Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc.or for phase control operation in light dimmers, motor speed controllers, and silmilar
The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 VRMS)
