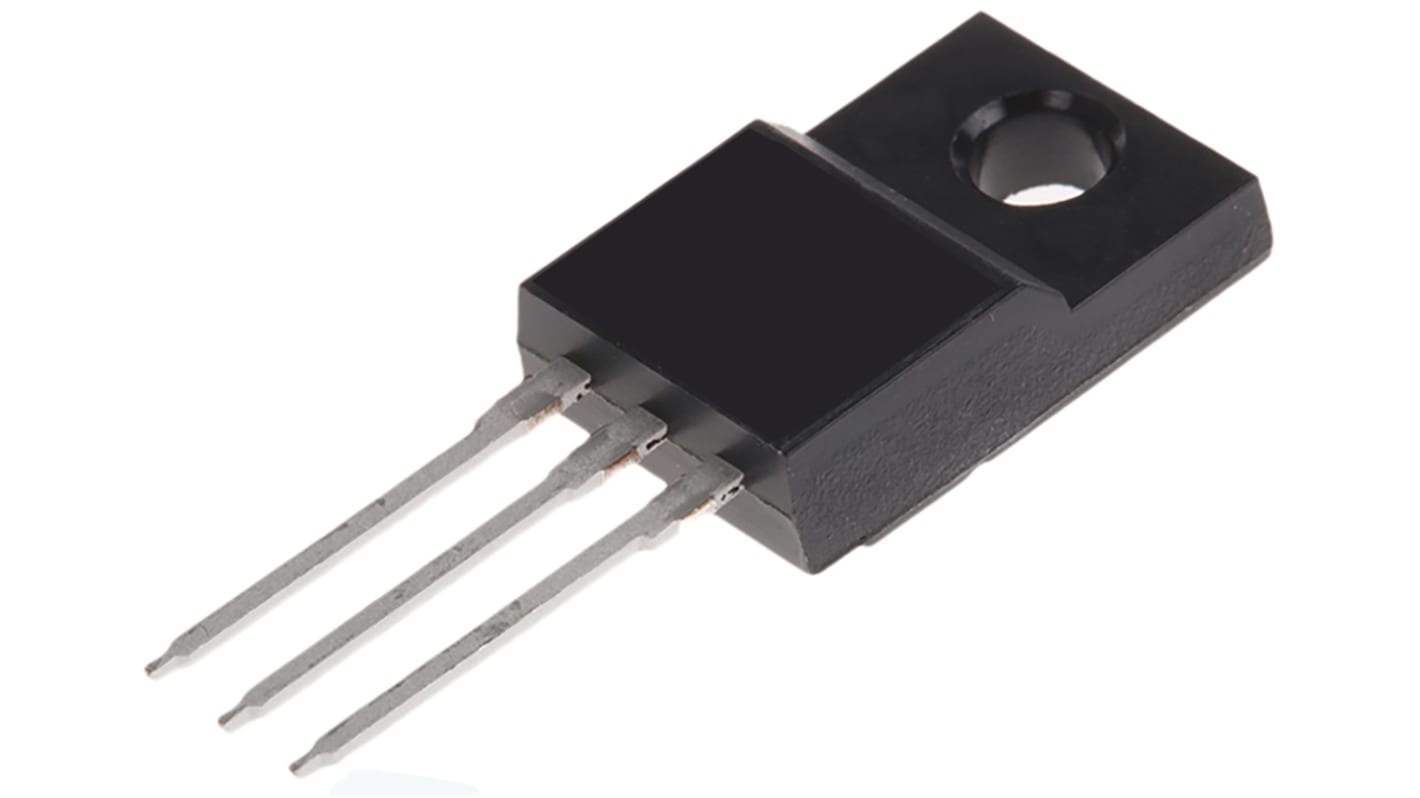

Renesas Electronics Through Hole, 3-pin, TRIAC, Gate Trigger 1.5V 600V
- RS Stock No.:
- 124-3662
- Mfr. Part No.:
- BCR5PM-12LA-A8#B00
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-3662
- Mfr. Part No.:
- BCR5PM-12LA-A8#B00
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Rated Average On-State Current | 5A | |
| Mounting Type | Through Hole | |
| Package Type | TO-220F | |
| Maximum Gate Trigger Current | 20mA | |
| Surge Current Rating | 50A | |
| Pin Count | 3 | |
| Maximum Gate Trigger Voltage | 1.5V | |
| Repetitive Peak Forward Blocking Voltage | 600V | |
| Dimensions | 10.5 x 4.5 x 17mm | |
| Length | 10.5mm | |
| Width | 4.5mm | |
| Height | 17mm | |
| Peak On-State Voltage | 1.6V | |
| Maximum Operating Temperature | +125 °C | |
| Repetitive Peak Off-State Current | 2mA | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Rated Average On-State Current 5A | ||
Mounting Type Through Hole | ||
Package Type TO-220F | ||
Maximum Gate Trigger Current 20mA | ||
Surge Current Rating 50A | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage 1.5V | ||
Repetitive Peak Forward Blocking Voltage 600V | ||
Dimensions 10.5 x 4.5 x 17mm | ||
Length 10.5mm | ||
Width 4.5mm | ||
Height 17mm | ||
Peak On-State Voltage 1.6V | ||
Maximum Operating Temperature +125 °C | ||
Repetitive Peak Off-State Current 2mA | ||
Minimum Operating Temperature -40 °C | ||
TRIAC, Renesas Electronics
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
