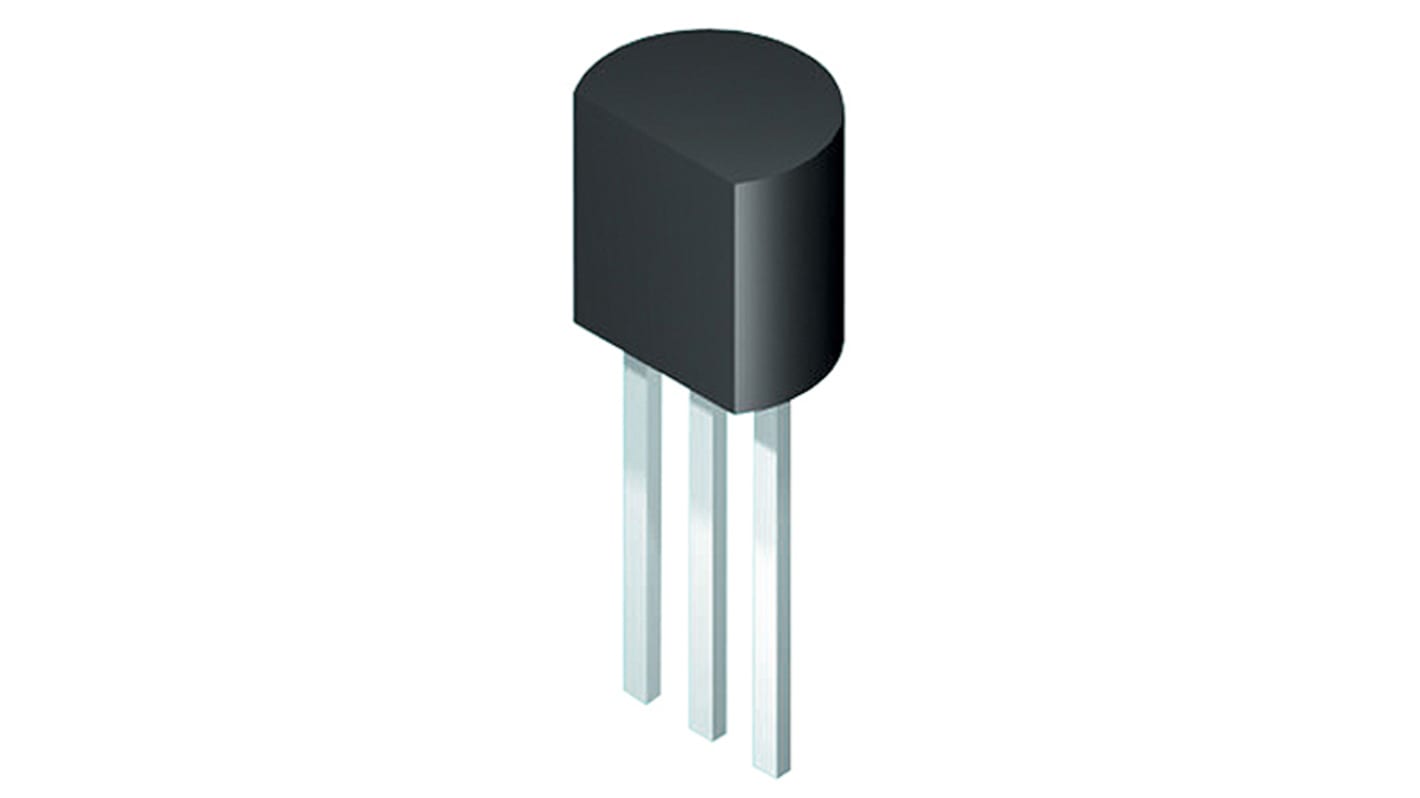

Renesas Electronics Through Hole, 3-pin, TRIAC, 600V, Gate Trigger 2V 600V
- RS Stock No.:
- 121-6886
- Mfr. Part No.:
- BCR1AM-12A-A6#C01
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 121-6886
- Mfr. Part No.:
- BCR1AM-12A-A6#C01
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Rated Average On-State Current | 1A | |
| Mounting Type | Through Hole | |
| Package Type | TO-92 | |
| Maximum Gate Trigger Current | 7mA | |
| Repetitive Peak Reverse Voltage | 600V | |
| Surge Current Rating | 10A | |
| Pin Count | 3 | |
| Maximum Gate Trigger Voltage | 2V | |
| Repetitive Peak Forward Blocking Voltage | 600V | |
| Dimensions | 5 x 3.6 x 5mm | |
| Length | 5mm | |
| Width | 3.6mm | |
| Height | 5mm | |
| Peak On-State Voltage | 1.6V | |
| Repetitive Peak Off-State Current | 0.5mA | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Rated Average On-State Current 1A | ||
Mounting Type Through Hole | ||
Package Type TO-92 | ||
Maximum Gate Trigger Current 7mA | ||
Repetitive Peak Reverse Voltage 600V | ||
Surge Current Rating 10A | ||
Pin Count 3 | ||
Maximum Gate Trigger Voltage 2V | ||
Repetitive Peak Forward Blocking Voltage 600V | ||
Dimensions 5 x 3.6 x 5mm | ||
Length 5mm | ||
Width 3.6mm | ||
Height 5mm | ||
Peak On-State Voltage 1.6V | ||
Repetitive Peak Off-State Current 0.5mA | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
TRIAC, Renesas Electronics
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
