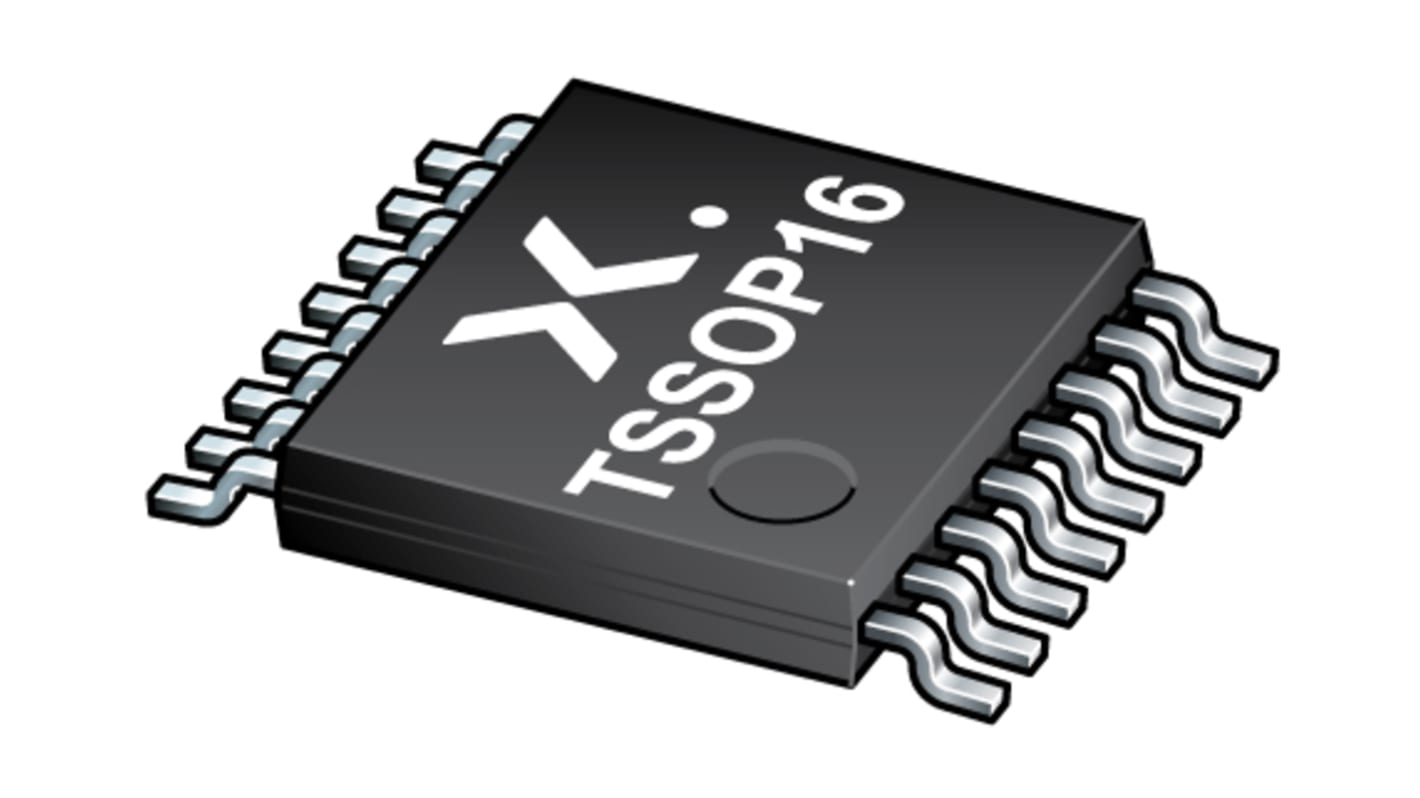

Nexperia 74AVC4T245PW,118, Voltage Level Shifter Level Translator 8 Bi-Directional, 16-Pin TSSOP

View all Translator ICs

Subtotal (1 reel of 2500 units)*

£1,047.50

(exc. VAT)

£1,257.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2,500 unit(s) shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.419£1,047.50

*price indicative

RS Stock No.:
151-3353
Mfr. Part No.:
74AVC4T245PW,118
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Logic Family

74AVC

Mounting Type

Surface Mount

Number of Elements per Chip

8

Package Type

TSSOP

Output Type

3 State

Pin Count

16

Dimensions

5.1 x 4.5 x 0.95mm

Logic Function

Level Translator

Maximum Low Level Output Current

1.5mA

Maximum High Level Output Current

-1.5mA

Translation

Bi-Directional

Propagation Delay Test Condition

15pF

Maximum Propagation Delay Time @ Maximum CL

14.5 ns @ 15 pF

Maximum Operating Supply Voltage

3.6 V

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

0.8 V

Minimum Operating Temperature

-40 °C

4-bit dual supply translating transceiver with configurable voltage translation, 3-state, The 74AVC4T245 is an 4-bit, dual supply transceiver that enables bidirectional level translation. The device can be used as two 2-bit transceivers or as a 4-bit transceiver. It features four 2-bit input-output ports (nAn and nBn), a direction control input (nDIR), a output enable input (nOE) and dual supply pins (VCC(A) and VCC(B)).

Suspend mode
Latch-up performance exceeds 100 mA per JESD 78 Class II
Inputs accept voltages up to 3.6 V
IOFF circuitry provides partial Power-down mode operation
Multiple package options
