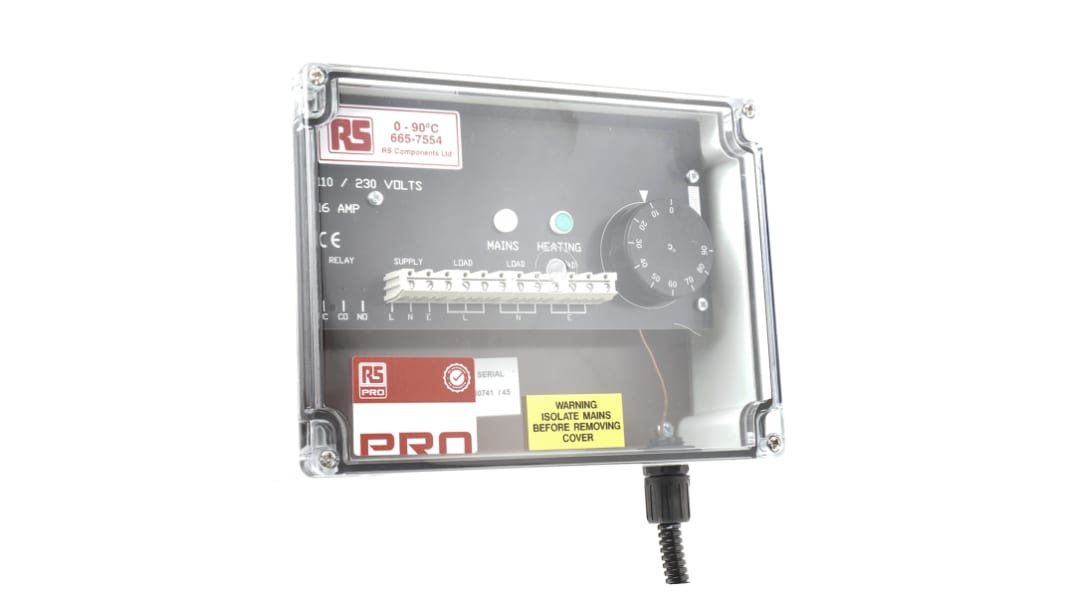

RS PRO Trace Heating Thermostat 75mm x 200mm x 150mm, 0 → +90 °C
- RS Stock No.:
- 665-7554
- Brand:
- RS PRO
Subtotal (1 unit)*
£152.20
(exc. VAT)
£182.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 15 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £152.20 |
*price indicative
- RS Stock No.:
- 665-7554
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Dimensions | 200 x 75 x 150mm | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +90°C | |
Height | 75mm | |
Length | 200mm | |
Width | 150mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Dimensions 200 x 75 x 150mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +90°C | ||
Height 75mm | ||
Length 200mm | ||
Width 150mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
RS PRO Trace Heating Thermostat 75 mm x 200 mm x 150 mm, 0°C → +90 °C
Looking for a junction box thermostat to terminate and control a heating system? This trace heating thermostat from the RS PRO range is commonly used for frost protection or process temperature maintenance. It features entries and terminations for up to three trace heating circuits, along with an easily adjustable temperature range dial that clearly displays the set temperature. Indicating lamps show when the mains and the heat are on for easy system management.
The thermostat's body is made from tough ABS (acrylonitrile butadiene styrene) thermoplastic, with a clear moulded polycarbonate lid. It measures 75 mm x 200 mm x 150 mm and will operate between 0˚C and +90˚C. Its IP65 rating means it's also dust and spray-tight.
A stainless steel pipe mounting bracket kit with mounting screws, washers, nuts and banding kit is available separately. The thermostat meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge.
The thermostat's body is made from tough ABS (acrylonitrile butadiene styrene) thermoplastic, with a clear moulded polycarbonate lid. It measures 75 mm x 200 mm x 150 mm and will operate between 0˚C and +90˚C. Its IP65 rating means it's also dust and spray-tight.
A stainless steel pipe mounting bracket kit with mounting screws, washers, nuts and banding kit is available separately. The thermostat meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge.
Features and Benefits
• Trace heating thermostat
• Junction box style
• Commonly used for frost protection or process temperature maintenance
• Entries and terminations for up to three trace heating circuits
• Easily adjustable, high-visibility dial
• Indicator lamps for easy system management
• Measures 75 mm x 200 mm x 150 mm
• IP65 rated meaning it's dust protected and spray-tight
• Minimum operating temperature of 0°C
• Maximum operating temperature of +90°C
• Meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
• Junction box style
• Commonly used for frost protection or process temperature maintenance
• Entries and terminations for up to three trace heating circuits
• Easily adjustable, high-visibility dial
• Indicator lamps for easy system management
• Measures 75 mm x 200 mm x 150 mm
• IP65 rated meaning it's dust protected and spray-tight
• Minimum operating temperature of 0°C
• Maximum operating temperature of +90°C
• Meets standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
