nVent RAYCHEM Trace Heating Junction Box 75 mm x 130 mm x 130 mm, 115 °C, -35 °C
- RS Stock No.:
- 263-2520
- Mfr. Part No.:
- JB-82
- Brand:
- nVent RAYCHEM
Subtotal (1 kit)*
£119.17
(exc. VAT)
£143.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Kit(s) | Per Kit |
|---|---|
| 1 + | £119.17 |
*price indicative
- RS Stock No.:
- 263-2520
- Mfr. Part No.:
- JB-82
- Brand:
- nVent RAYCHEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent RAYCHEM | |
| Product Type | Trace Heating Junction Box | |
| Height | 75mm | |
| Length | 130mm | |
| Width | 130 mm | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 115°C | |
| Standards/Approvals | BASEC, VDE 2050, TS 9760 HD 21.5.S3, VDE 0295 part 5, UL1581 VW-1, HAR, DEF STAN 61-12 Part 6, IEC 60332-1-2, BS4808, UL, IEC 60228 Class 5, BS EN13062, BS4109, IEC60332-1, IEC 60227-5, VDE 0281-5 | |
| Hazardous Area Certification | No | |
| Contents | Motor Cables, Conduit, Mains Power, Coaxial, SWA, Unitronic LiYCY and LiYY, Multicore Control Cables, Lighting and Electrical, SY, Multipair/Twisted Pair, OLflex Unscreened, OLflex Screened, Data Cables, BUS Cables, LAN, Tinned Copper Wire CY, YY | |
| Select all | ||
|---|---|---|
Brand nVent RAYCHEM | ||
Product Type Trace Heating Junction Box | ||
Height 75mm | ||
Length 130mm | ||
Width 130 mm | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 115°C | ||
Standards/Approvals BASEC, VDE 2050, TS 9760 HD 21.5.S3, VDE 0295 part 5, UL1581 VW-1, HAR, DEF STAN 61-12 Part 6, IEC 60332-1-2, BS4808, UL, IEC 60228 Class 5, BS EN13062, BS4109, IEC60332-1, IEC 60227-5, VDE 0281-5 | ||
Hazardous Area Certification No | ||
Contents Motor Cables, Conduit, Mains Power, Coaxial, SWA, Unitronic LiYCY and LiYY, Multicore Control Cables, Lighting and Electrical, SY, Multipair/Twisted Pair, OLflex Unscreened, OLflex Screened, Data Cables, BUS Cables, LAN, Tinned Copper Wire CY, YY | ||
RoHS Status: Exempt

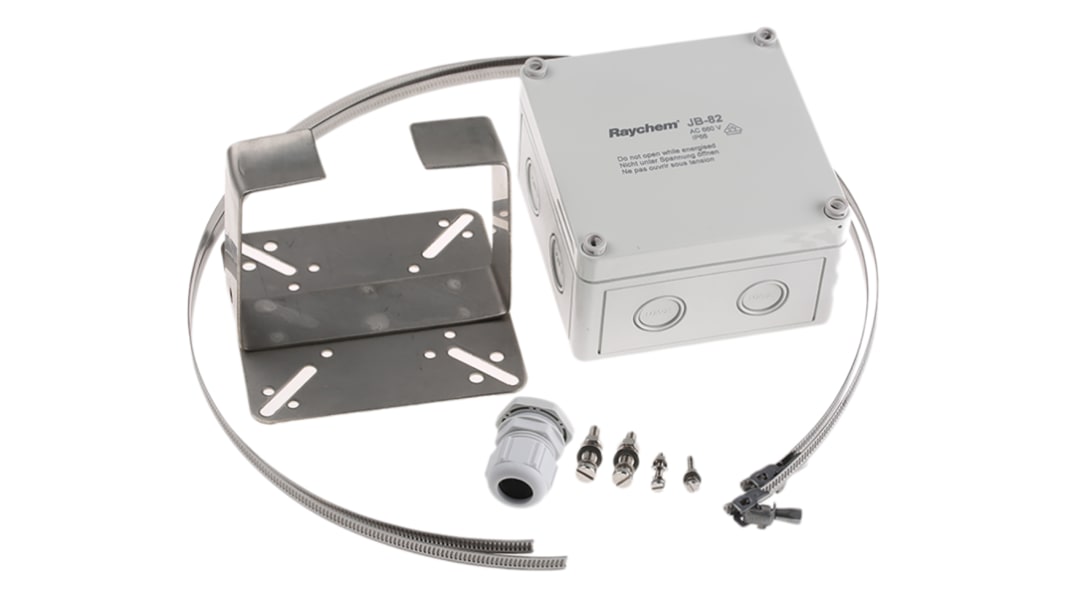

Raychem® JB-82 Junction Box
For use with BTV/XTV series of self regulating heating cables in non-hazardous areas
Supplied complete with stainless steel support bracket fixing kit (JB-SB-02)
Use with C25-100 connection kit (see stock no. 380-9771)
Junction Boxes and Accessories
Supplied with
Stainless Steel Support Bracket Fixing Kit (JB-SB-02)
