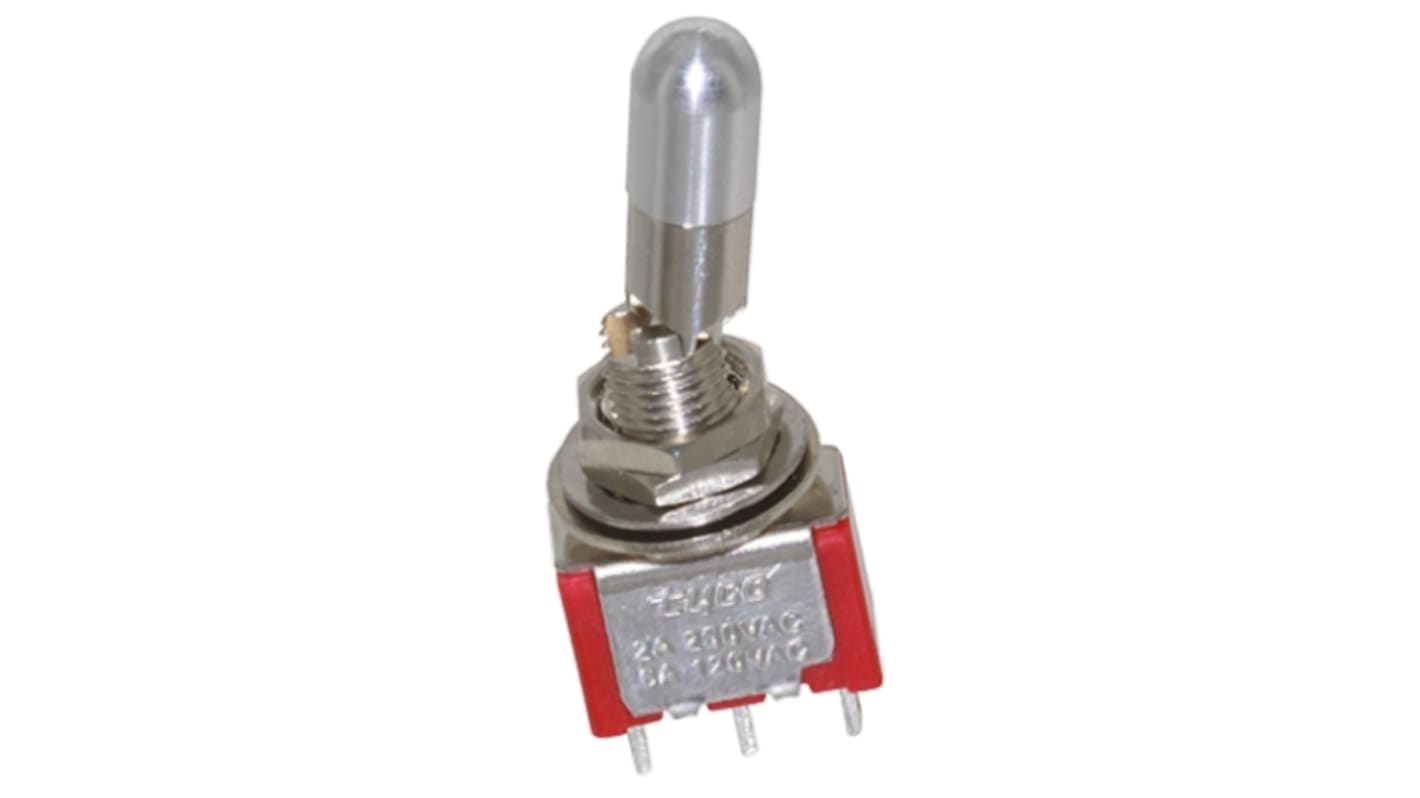

TE Connectivity Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 28 V dc, 120 V ac
- RS Stock No.:
- 783-0965
- Distrelec Article No.:
- 302-80-805
- Mfr. Part No.:
- A101KZQ04
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£6.91
(exc. VAT)
£8.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
- Plus 70 unit(s) shipping from 17 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.91 |
| 10 - 24 | £6.19 |
| 25 - 49 | £5.65 |
| 50 - 149 | £5.18 |
| 150 + | £4.92 |
*price indicative
- RS Stock No.:
- 783-0965
- Distrelec Article No.:
- 302-80-805
- Mfr. Part No.:
- A101KZQ04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 5 A 28 V dc | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 120V ac | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | Gemini A | |
| Width | 0.270 in | |
| Length | 0.5in | |
| Mechanical Life | 6000Cycles | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-On | ||
Switch Contact Current 5 A 28 V dc | ||
Mount Type Panel | ||
Terminal Type Solder | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 120V ac | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series Gemini A | ||
Width 0.270 in | ||
Length 0.5in | ||
Mechanical Life 6000Cycles | ||
- COO (Country of Origin):
- TW
Panel Mount Toggle Switches - Gemini A Series
Break before make contact timing
Epoxy sealed terminals
Stainless steel frame with brass tin plated solder support
