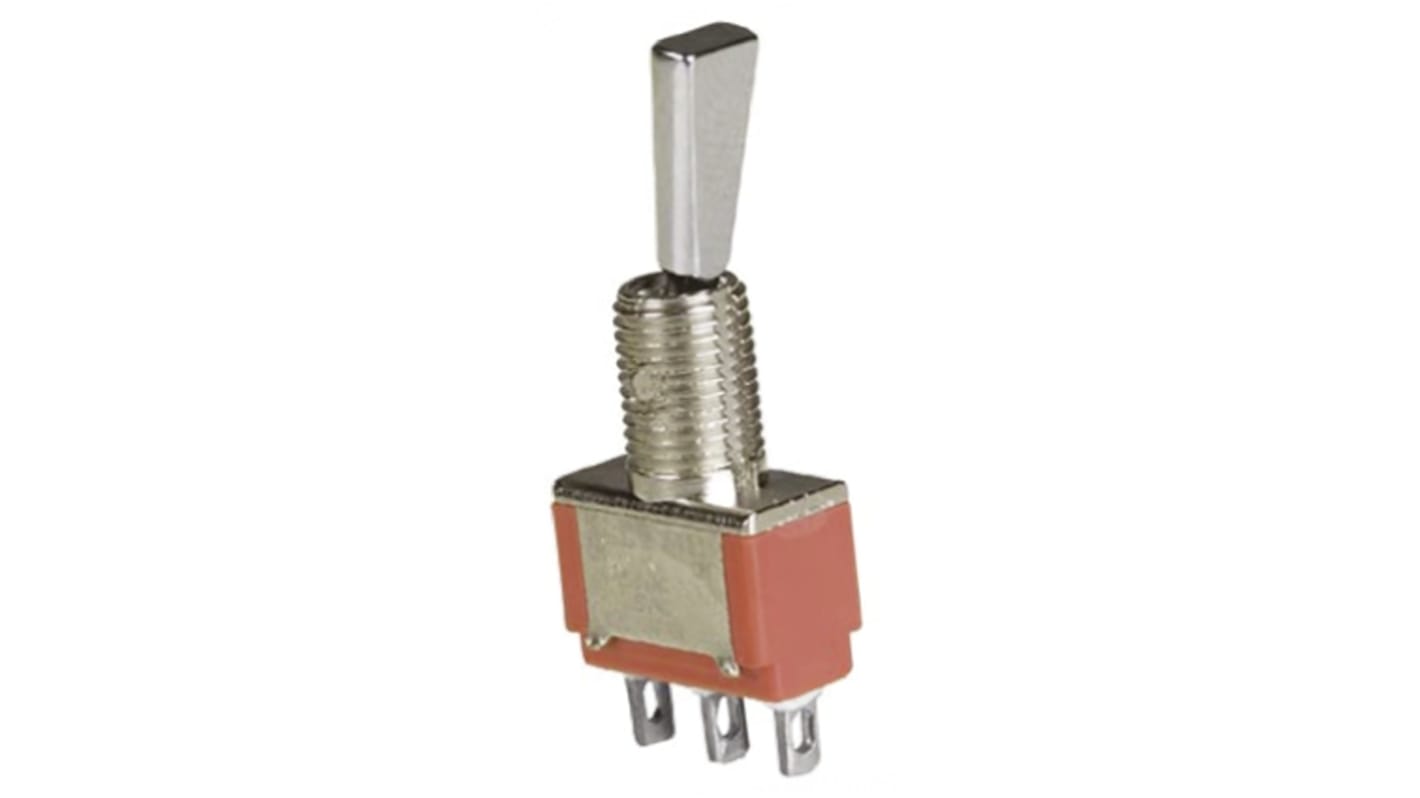

TE Connectivity Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 28 V dc, 120 V ac
- RS Stock No.:
- 782-7243
- Mfr. Part No.:
- A101P3ZQ04
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£7.12
(exc. VAT)
£8.54
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 12 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £7.12 |
| 10 - 24 | £6.98 |
| 25 - 49 | £6.49 |
| 50 - 149 | £5.96 |
| 150 + | £5.63 |
*price indicative
- RS Stock No.:
- 782-7243
- Mfr. Part No.:
- A101P3ZQ04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-On | |
| Switch Contact Current | 5 A 28 V dc | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| Panel Cutout Size | 6.35 mm | |
| Actuator Length | 11.43mm | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 120V ac | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 0.5in | |
| Width | 0.270 in | |
| Standards/Approvals | RoHS | |
| Mechanical Life | 6000Cycles | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-On | ||
Switch Contact Current 5 A 28 V dc | ||
Mount Type Panel | ||
Terminal Type Solder | ||
Panel Cutout Size 6.35 mm | ||
Actuator Length 11.43mm | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 120V ac | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Length 0.5in | ||
Width 0.270 in | ||
Standards/Approvals RoHS | ||
Mechanical Life 6000Cycles | ||
Panel Mount Toggle Switches - Gemini A Series
Break before make contact timing
Epoxy sealed terminals
Stainless steel frame with brass tin plated solder support
