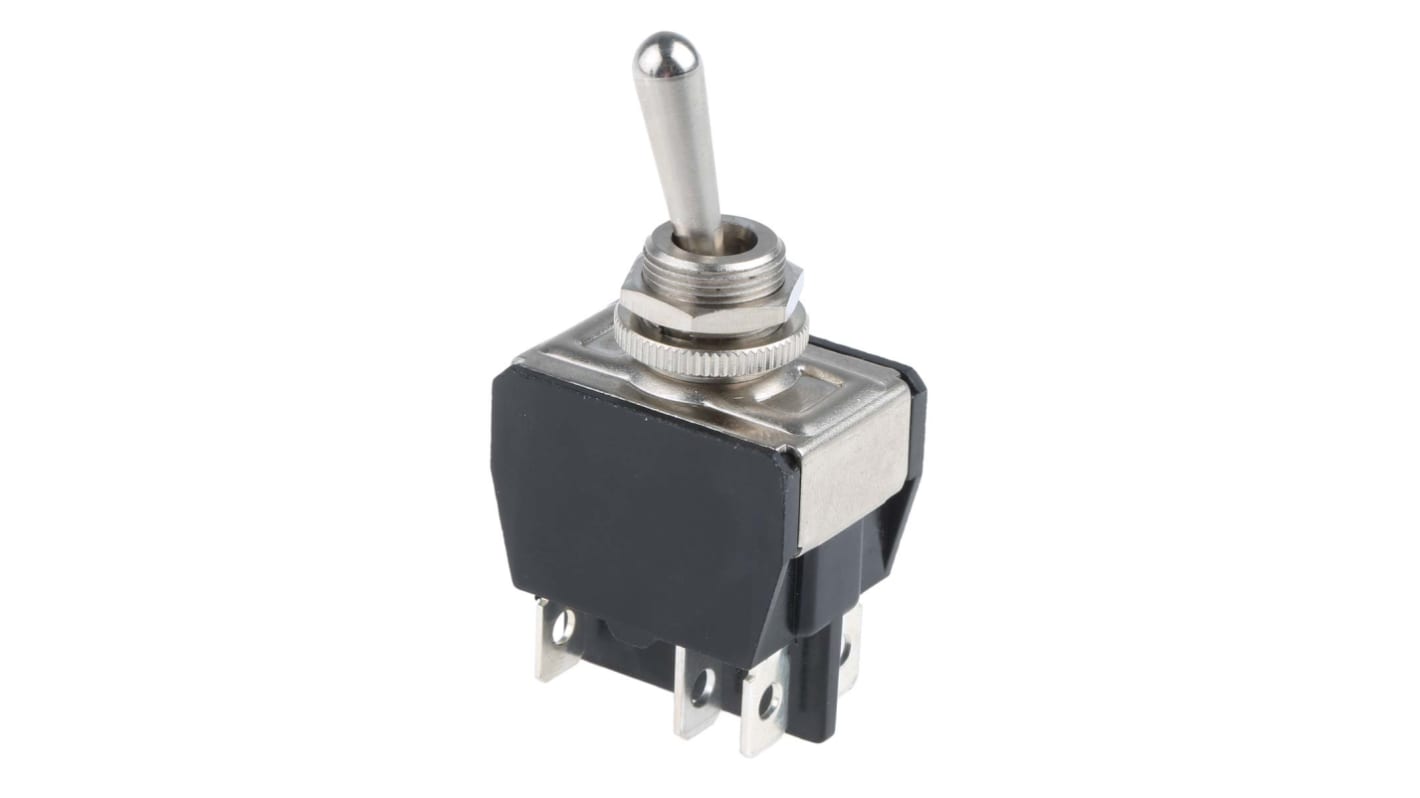

APEM Toggle Switch, Panel Mount, On-On, DPDT, Tab Terminal
- RS Stock No.:
- 518-5320
- Mfr. Part No.:
- Y22CP
- Brand:
- APEM
1264 In stock - FREE next working day delivery available
21 available from Europe for delivery within 1 working day(s).
Added
Price Each
£11.01
(exc. VAT)
£13.21
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £11.01 |
| 25 - 49 | £9.04 |
| 50 - 99 | £8.27 |
| 100 - 249 | £7.71 |
| 250 + | £7.04 |
- RS Stock No.:
- 518-5320
- Mfr. Part No.:
- Y22CP
- Brand:
- APEM
Technical Reference
Legislation and Compliance
Product Details
Toggle Switches, Std, 15A
Moulded body with slow-break silver plated contacts and pear-shaped toggle
The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-On |
| Contact Current Rating | 15 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| Actuator Length | 17.5mm |
| Contact Material | Silver |
| Contact Resistance | 0.01Ω |
| Maximum Operating Temperature | +55°C |
| Operating Temperature Range | -20 → +55°C |
| Minimum Operating Temperature | -20°C |
