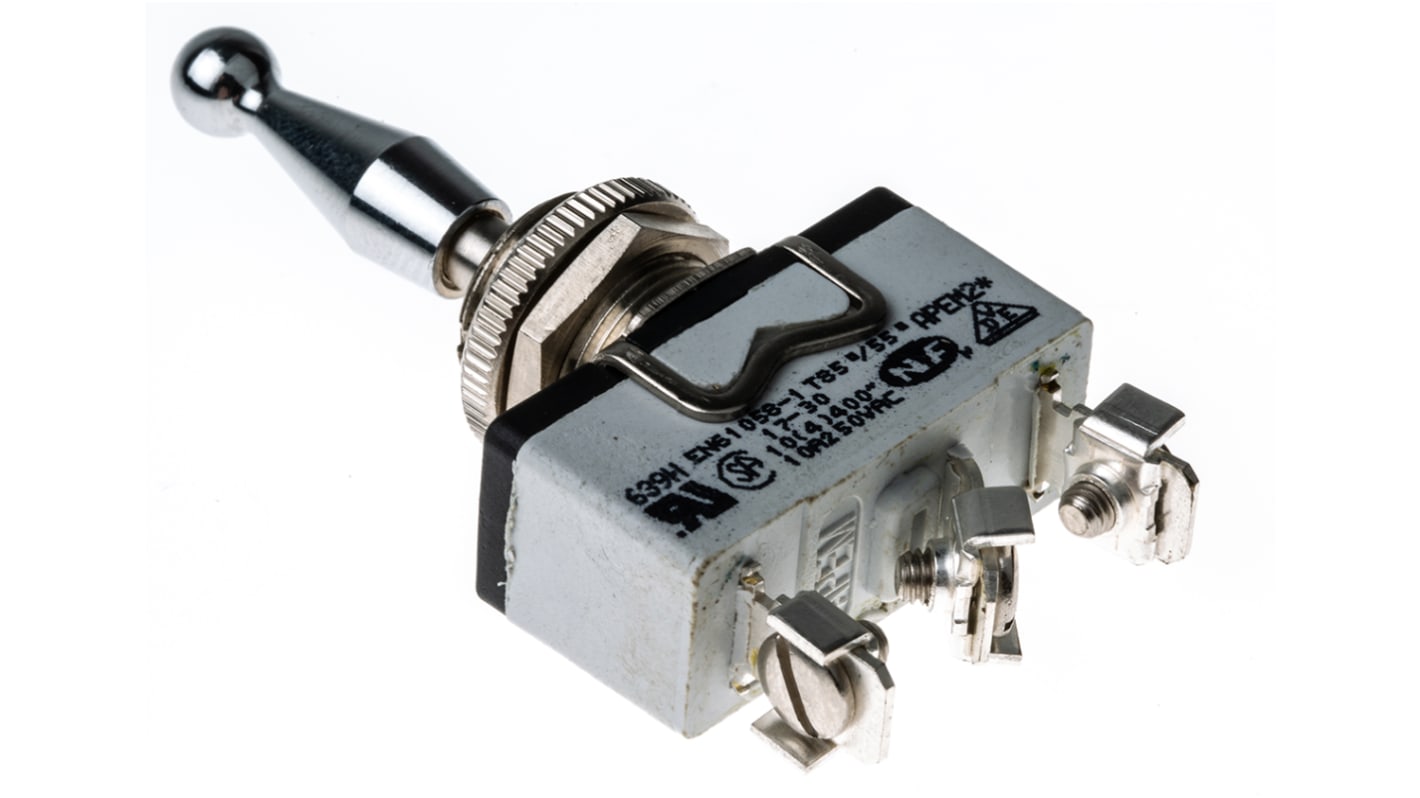

APEM Toggle Switch, Panel Mount, On-Off-On, SPDT, Screw Terminal, 250V ac
- RS Stock No.:
- 136-6449
- Mfr. Part No.:
- 639H/X2330
- Brand:
- APEM
Subtotal (1 unit)*
£19.11
(exc. VAT)
£22.93
(inc. VAT)
FREE delivery for orders over £50.00
- 64 unit(s) ready to ship
Units | Per unit |
---|---|
1 - 24 | £19.11 |
25 - 49 | £15.66 |
50 - 99 | £14.33 |
100 - 249 | £13.36 |
250 + | £12.26 |
*price indicative
- RS Stock No.:
- 136-6449
- Mfr. Part No.:
- 639H/X2330
- Brand:
- APEM
Select all | Attribute | Value |
---|---|---|
Brand | APEM | |
Contact Configuration | SPDT | |
Switch Operation | On-Off-On | |
Contact Current Rating | 10 (CSA) A, 10 (NF-VDE) A, 10 (UL) A | |
Mounting Type | Panel Mount | |
Terminal Type | Screw | |
Illuminated | No | |
Panel Cut Out Diameter | 12.2 (Dia.)mm | |
Actuator Length | 17.5mm | |
Actuator Material | Brass | |
Voltage Rating | 250V ac | |
Contact Resistance | 10mΩ | |
Contact Material | Silver Nickel Alloy | |
Panel Cut Out Size | 12.2 (Dia.)mm | |
Standards Met | CSA, NF-VDE (EN 61058-1), UL | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +55°C | |
Mechanical Life | 10000 (Electrical) cycles @ 24 V dc, 6000 (Electrical) cycles @ 250 V ac | |
Operating Temperature Range | -20 → +55°C | |
Select all | ||
---|---|---|
Brand APEM | ||
Contact Configuration SPDT | ||
Switch Operation On-Off-On | ||
Contact Current Rating 10 (CSA) A, 10 (NF-VDE) A, 10 (UL) A | ||
Mounting Type Panel Mount | ||
Terminal Type Screw | ||
Illuminated No | ||
Panel Cut Out Diameter 12.2 (Dia.)mm | ||
Actuator Length 17.5mm | ||
Actuator Material Brass | ||
Voltage Rating 250V ac | ||
Contact Resistance 10mΩ | ||
Contact Material Silver Nickel Alloy | ||
Panel Cut Out Size 12.2 (Dia.)mm | ||
Standards Met CSA, NF-VDE (EN 61058-1), UL | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
Mechanical Life 10000 (Electrical) cycles @ 24 V dc, 6000 (Electrical) cycles @ 250 V ac | ||
Operating Temperature Range -20 → +55°C | ||
