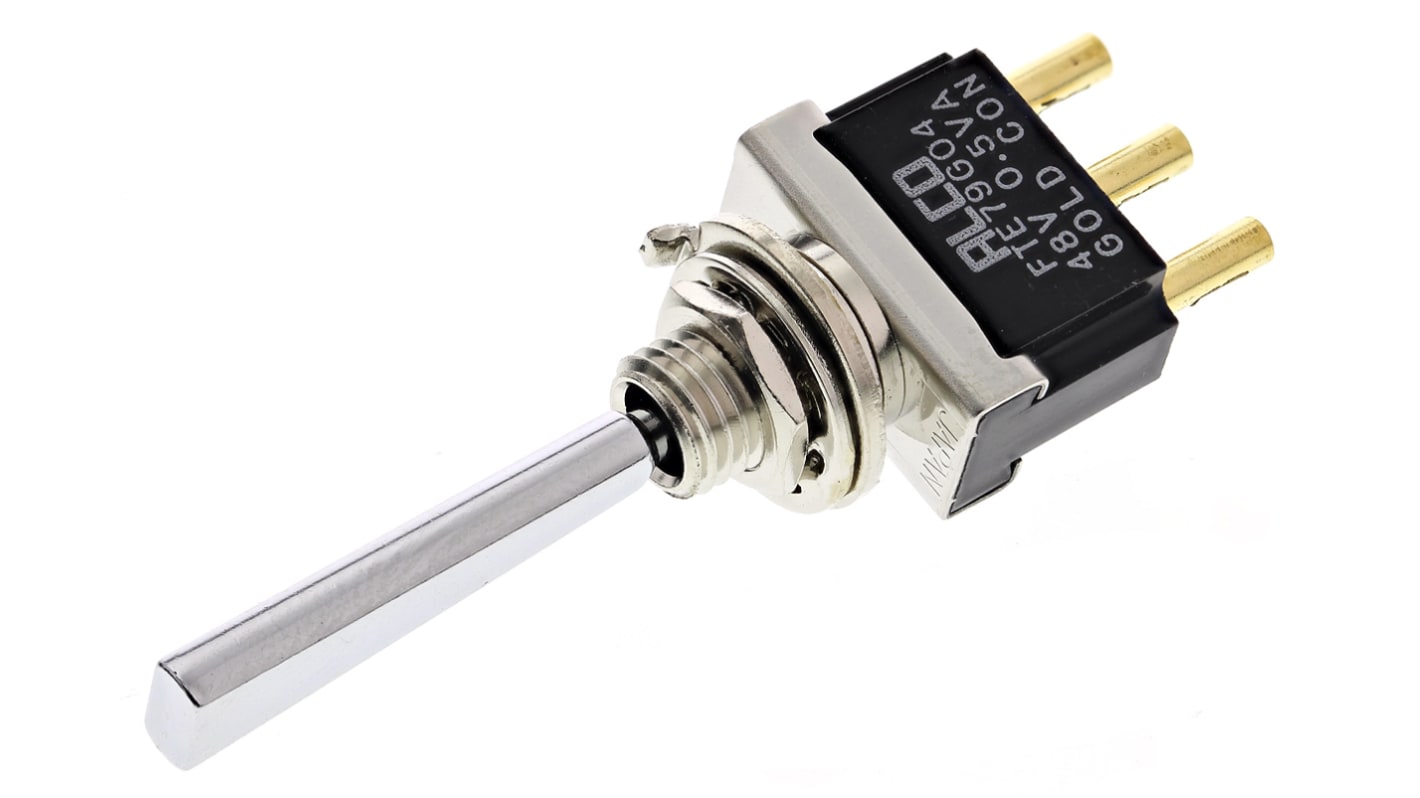

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, 250V
- RS Stock No.:
- 317-639
- Mfr. Part No.:
- FTE79G04
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£17.14
(exc. VAT)
£20.57
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 49 | £17.14 |
| 50 - 99 | £13.97 |
| 100 - 249 | £12.89 |
| 250 + | £11.97 |
*price indicative
- RS Stock No.:
- 317-639
- Mfr. Part No.:
- FTE79G04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 400 mA @ 20 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Panel Cut Out Diameter | 6.2mm | |
| Actuator Length | 16.5mm | |
| Actuator Material | Chrome Plated Brass | |
| Voltage Rating | 250V | |
| Contact Resistance | 0.01Ω | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -20°C | |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 | |
| Maximum Operating Temperature | +80°C | |
| Operating Temperature Range | -20 → +80°C | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration SPDT | ||
Switch Operation On-Off-On | ||
Contact Current Rating 400 mA @ 20 V dc | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Panel Cut Out Diameter 6.2mm | ||
Actuator Length 16.5mm | ||
Actuator Material Chrome Plated Brass | ||
Voltage Rating 250V | ||
Contact Resistance 0.01Ω | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -20°C | ||
Standards Met CSA Recognised, RoHS, UL 94V-0 | ||
Maximum Operating Temperature +80°C | ||
Operating Temperature Range -20 → +80°C | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- JP
Approvals
CSA
