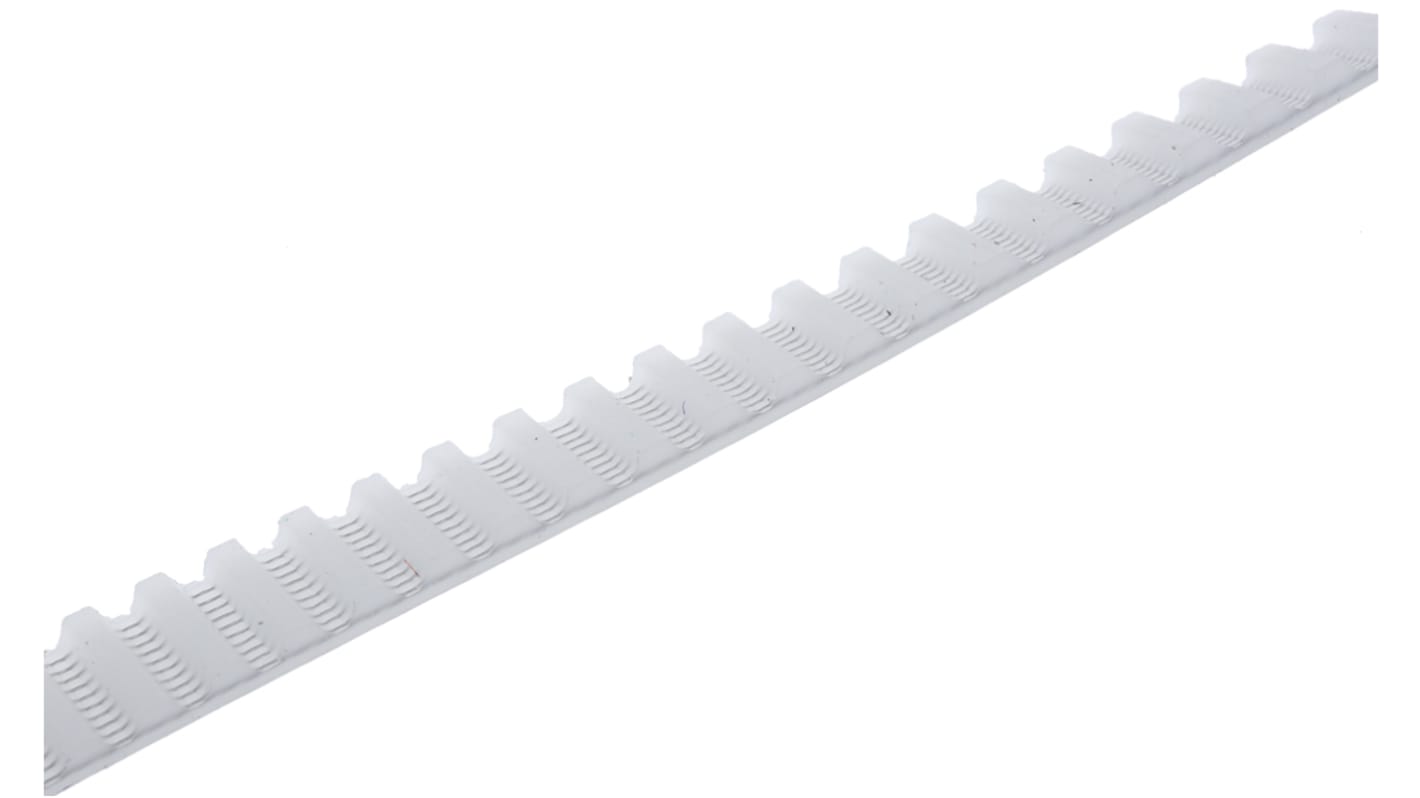

Contitech 6 / T2.5 / 1300 SS Timing Belt, 520 Teeth, 1300mm Length, 6mm Width
- RS Stock No.:
- 474-5252
- Mfr. Part No.:
- 6 / T2.5 / 1300 SS
- Brand:
- Contitech
Bulk discount available
Subtotal (1 unit)*
£22.33
(exc. VAT)
£26.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 23 unit(s) shipping from 27 October 2025
- Plus 25 unit(s) shipping from 27 October 2025
- Plus 45 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £22.33 |
| 5 - 9 | £21.44 |
| 10 - 24 | £21.00 |
| 25 + | £20.55 |
*price indicative
- RS Stock No.:
- 474-5252
- Mfr. Part No.:
- 6 / T2.5 / 1300 SS
- Brand:
- Contitech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Contitech | |
| Length | 1300mm | |
| Width | 6mm | |
| Pitch | 2.5mm | |
| Number of Teeth | 520 | |
| Material | Polyurethane | |
| Maximum Speed | 80m/s | |
| Tooth Height | 0.7mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Profile | T2,5 | |
Select all | ||
|---|---|---|
Brand Contitech | ||
Length 1300mm | ||
Width 6mm | ||
Pitch 2.5mm | ||
Number of Teeth 520 | ||
Material Polyurethane | ||
Maximum Speed 80m/s | ||
Tooth Height 0.7mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Profile T2,5 | ||
- COO (Country of Origin):
- DE
Metric Pitch Timing Belts – Contitech Syncroflex®
Wear-resistant polyurethane contilan belt with high grade wire tension members. Resulting bond gives high flank load capacity combined with low elastic elongation. Suitable for all kinds of drives because of flexibility of belt material and high flexural strength of the steel tension members.
Belt speed up to 80m/s
Up to 40000rpm
Temperature range -30°C to +80°C
Efficient up to 98%
Maintenance-free
Resistant to oils, grease and petrol
Power rating 0.5kW (2.5mm pitch)
Power rating 5.0kW (5mm pitch)
Up to 40000rpm
Temperature range -30°C to +80°C
Efficient up to 98%
Maintenance-free
Resistant to oils, grease and petrol
Power rating 0.5kW (2.5mm pitch)
Power rating 5.0kW (5mm pitch)
