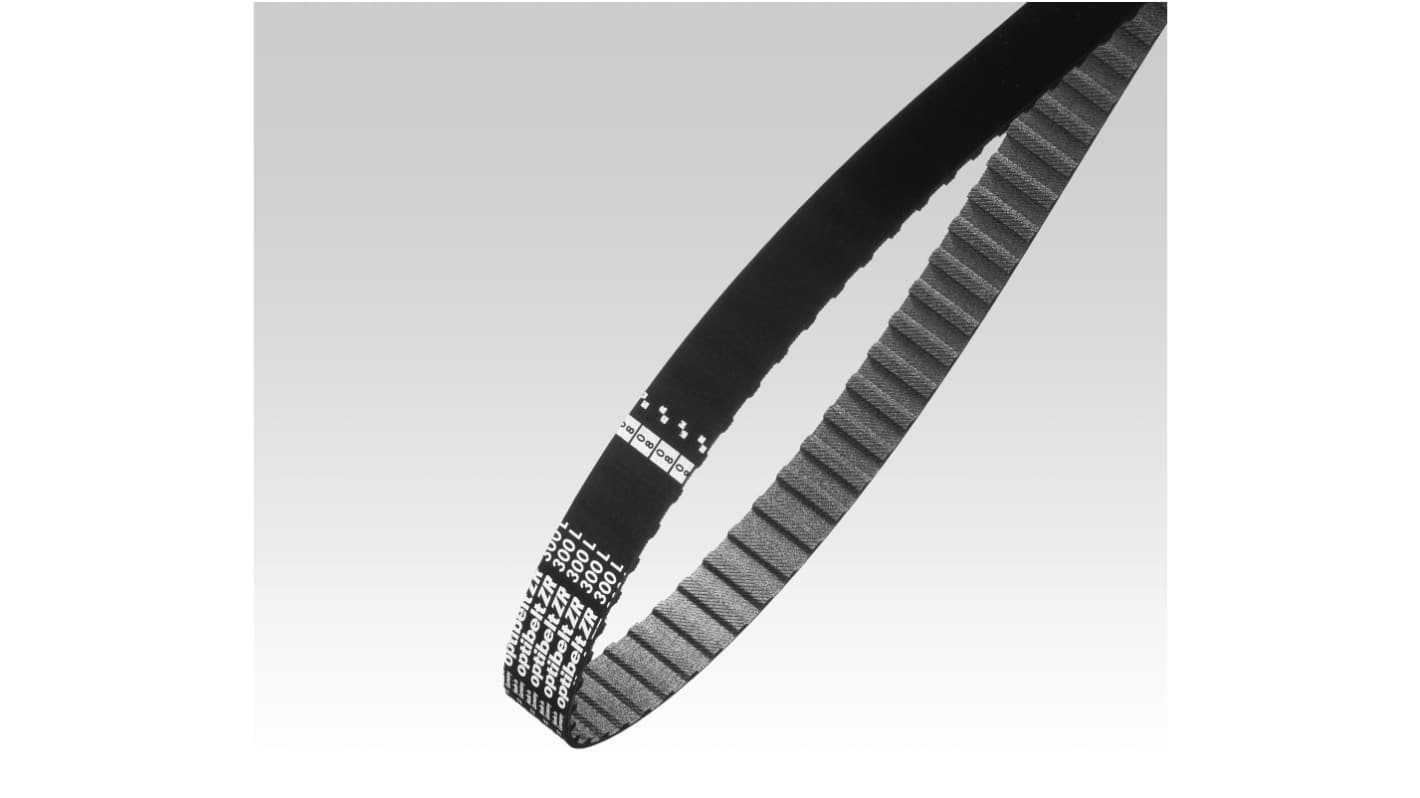

OPTIBELT 510 H 300 Timing Belt, 102 Teeth, 1295.4mm Length, 76.2mm Width
- RS Stock No.:
- 217-1733
- Mfr. Part No.:
- 510 H 300
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£83.33
(exc. VAT)
£100.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £83.33 |
| 5 - 9 | £81.67 |
| 10 - 24 | £80.00 |
| 25 + | £78.32 |
*price indicative
- RS Stock No.:
- 217-1733
- Mfr. Part No.:
- 510 H 300
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 1295.4mm | |
| Width | 76.2mm | |
| Pitch | 12.7mm | |
| Number of Teeth | 102 | |
| Profile | H | |
| Material | Rubber | |
| Series | ZR | |
| Tooth Height | 2.3mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 1295.4mm | ||
Width 76.2mm | ||
Pitch 12.7mm | ||
Number of Teeth 102 | ||
Profile H | ||
Material Rubber | ||
Series ZR | ||
Tooth Height 2.3mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
The OPTIBELT ZR series of H profile double sided timing belts top layer consists of a flexible high quality chloroprene compound, the extremely flexible tension cords made of glass fibre and the abrasion-resistant protective fabric. The teeth are made of a shear and wear resistant rubber compound vulcanised to form a unit with the belt back. A certain level of oil, heat and cold resistance are standard features of ZR timing belts.
Broad performance range
Low bearing loading
High level of flexibility
Temperature range from -30°C to +100°C
Low bearing loading
High level of flexibility
Temperature range from -30°C to +100°C
