OPTIBELT 510 H 150 Timing Belt, 102 Teeth, 1295.4mm Length, 38.1mm Width
- RS Stock No.:
- 204-2907
- Mfr. Part No.:
- 510 H 150
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£42.91
(exc. VAT)
£51.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 15 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £42.91 |
| 5 - 9 | £41.24 |
| 10 - 24 | £40.35 |
| 25 + | £39.48 |
*price indicative
- RS Stock No.:
- 204-2907
- Mfr. Part No.:
- 510 H 150
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 1295.4mm | |
| Width | 38.1mm | |
| Pitch | 12.7mm | |
| Number of Teeth | 102 | |
| Profile | H | |
| Material | Rubber | |
| Series | ZR | |
| Tooth Height | 2.3mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 1295.4mm | ||
Width 38.1mm | ||
Pitch 12.7mm | ||
Number of Teeth 102 | ||
Profile H | ||
Material Rubber | ||
Series ZR | ||
Tooth Height 2.3mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||

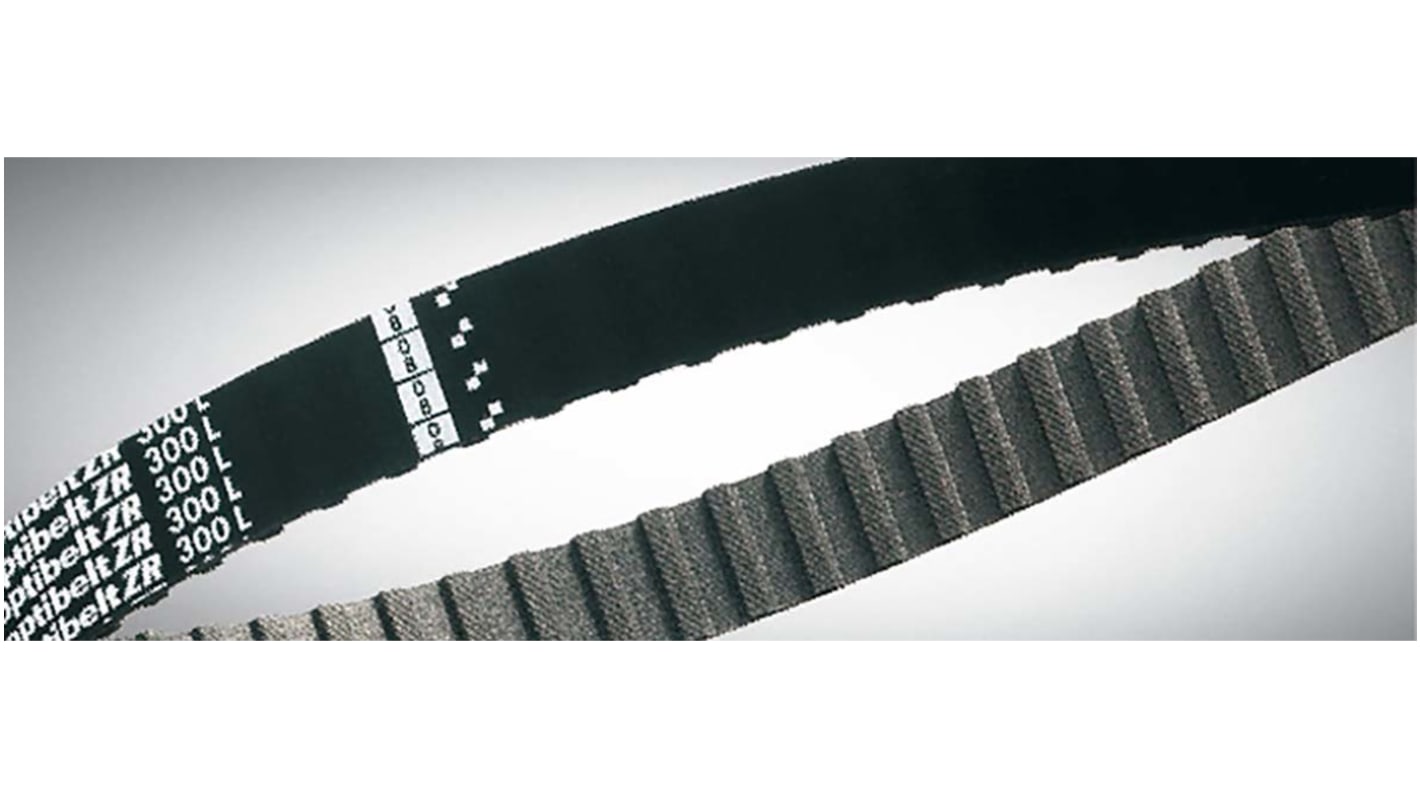

The Optibelt Timing Belt has 1295 mm pitch length. The linear belts with trapezoidal profile is manufactured from sleeves in a spiral cut method. This open-ended timing belts are reinforced with glass cord.
Pitch length 1295mm
High level of tensile strength
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
Established worldwide
For low levels of strain
Section standardised: ISO 5296 / ISO 5294
Standard roll length: 30 m
High level of tensile strength
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
Established worldwide
For low levels of strain
Section standardised: ISO 5296 / ISO 5294
Standard roll length: 30 m
