OPTIBELT 32 AT10 / 1010 Timing Belt, 101 Teeth, 1010mm Length, 32mm Width
- RS Stock No.:
- 217-1401
- Mfr. Part No.:
- 32 AT10 / 1010
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£65.38
(exc. VAT)
£78.46
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £65.38 |
| 5 - 9 | £64.08 |
| 10 - 24 | £62.77 |
| 25 + | £61.46 |
*price indicative
- RS Stock No.:
- 217-1401
- Mfr. Part No.:
- 32 AT10 / 1010
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 1010mm | |
| Width | 32mm | |
| Pitch | 10mm | |
| Number of Teeth | 101 | |
| Profile | AT10 | |
| Material | Polyurethane | |
| Series | ALPHA TORQUE | |
| Tooth Height | 2.5mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 1010mm | ||
Width 32mm | ||
Pitch 10mm | ||
Number of Teeth 101 | ||
Profile AT10 | ||
Material Polyurethane | ||
Series ALPHA TORQUE | ||
Tooth Height 2.5mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||

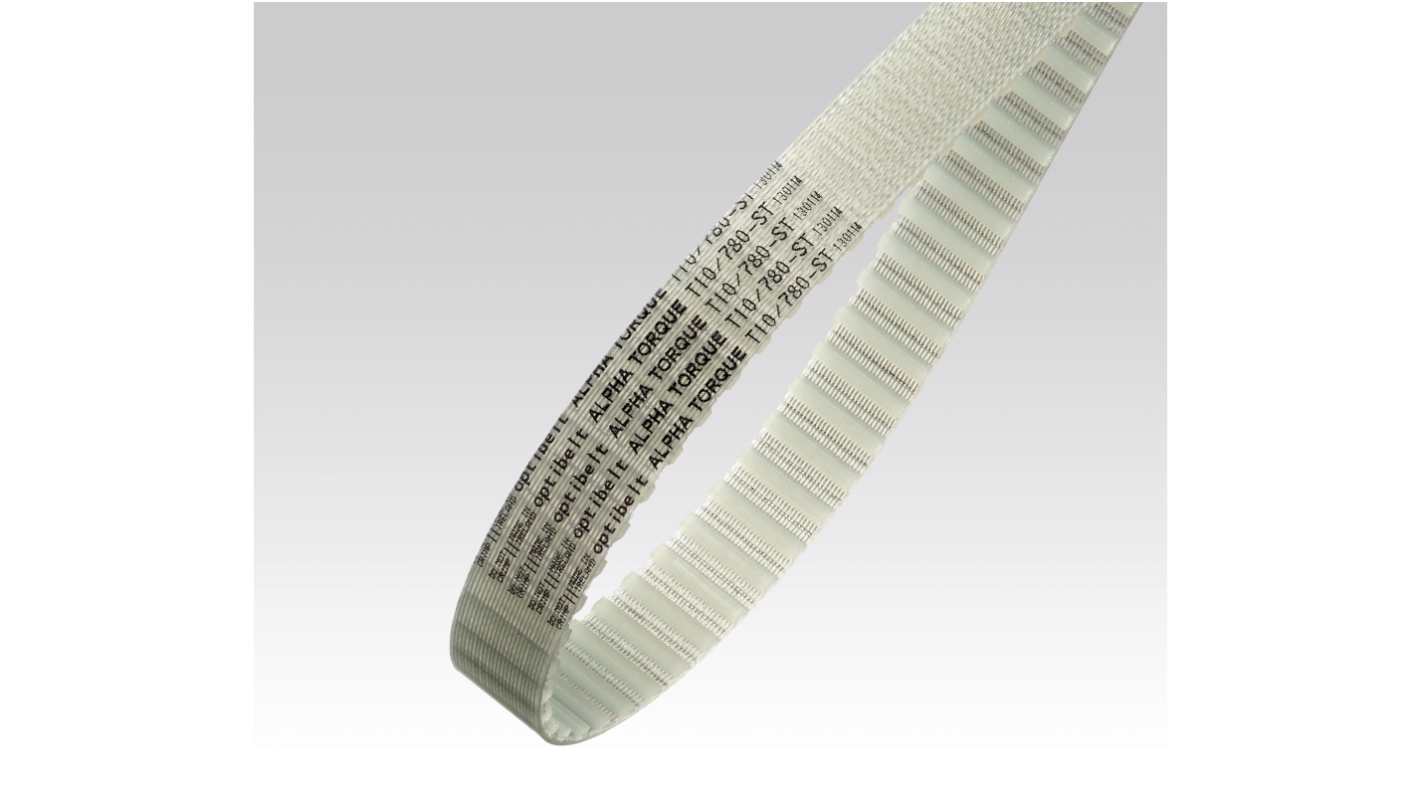

The OPTIBELT ALPHA TORQUE AT10 timing belt is made from abrasion-resistant polyurethane with a hardness of 86 shore A. It can be reinforced with tension cords made of steel, highly flexible steel, stainless steel, aramid, polyester or vectran to suit a wide range of applications. Its basic characteristics include unusually good oil resistance for polyurethane, as well as a certain resistance to acids and alkaline solutions.
Large selection of tension cord materials
Quick availability
Usable sleeve width up to 380 mm
Temperature range from -30°C to +80°C
Maintenance-free
Quick availability
Usable sleeve width up to 380 mm
Temperature range from -30°C to +80°C
Maintenance-free
