OPTIBELT 1440 8MHP 50 Timing Belt, 180 Teeth, 1440mm Length, 50mm Width
- RS Stock No.:
- 217-0311
- Mfr. Part No.:
- 1440 8MHP 50
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£92.04
(exc. VAT)
£110.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £92.04 |
| 5 - 9 | £90.21 |
| 10 - 24 | £88.36 |
| 25 + | £86.52 |
*price indicative
- RS Stock No.:
- 217-0311
- Mfr. Part No.:
- 1440 8MHP 50
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Length | 1440mm | |
| Width | 50mm | |
| Pitch | 8mm | |
| Number of Teeth | 180 | |
| Profile | 8MHP | |
| Material | Rubber | |
| Series | OMEGA HP | |
| Tooth Height | 3.2mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Length 1440mm | ||
Width 50mm | ||
Pitch 8mm | ||
Number of Teeth 180 | ||
Profile 8MHP | ||
Material Rubber | ||
Series OMEGA HP | ||
Tooth Height 3.2mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||

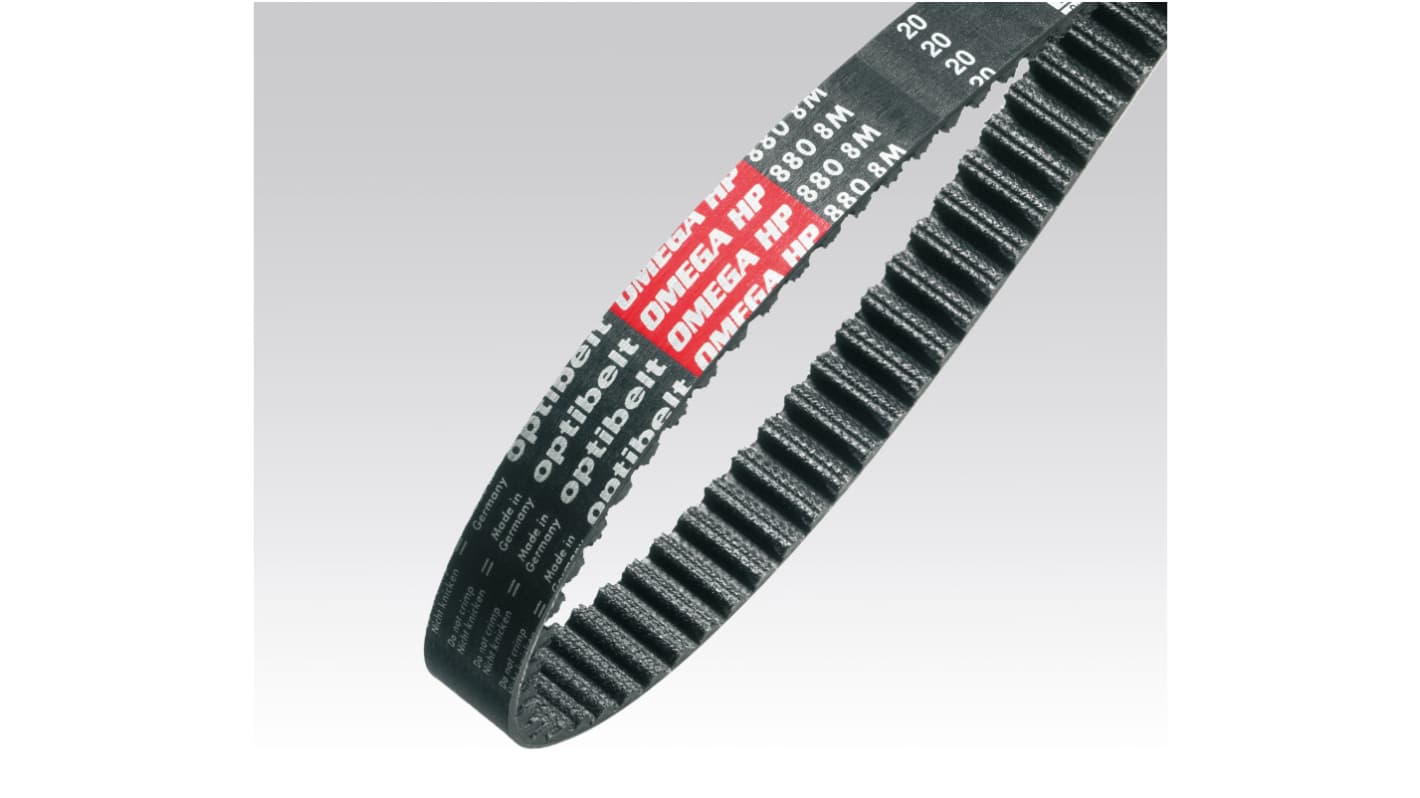

The Optibelt timing belt made up of chloroprene has 8 mm tooth pitch and it has 180 tooth.it has 1440 mm length. It is performance power transmission timing belt were developed for drive applications that demand the best. With its superior construction OMEGA HP has the durability and performance characteristics far superior than standard timing belt.
Temperature range -30°C to +100°C
Maintenance-free
Maintenance-free
