OPTIBELT 330 3M 9 Timing Belt, 110 Teeth, 330mm Length, 9mm Width
- RS Stock No.:
- 204-2923
- Mfr. Part No.:
- 330 3M 9
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£5.24
(exc. VAT)
£6.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.24 |
5 - 9 | £5.02 |
10 - 24 | £4.93 |
25 + | £4.83 |
*price indicative
- RS Stock No.:
- 204-2923
- Mfr. Part No.:
- 330 3M 9
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | OPTIBELT | |
Length | 330mm | |
Width | 9mm | |
Pitch | 3mm | |
Number of Teeth | 110 | |
Profile | 3M | |
Material | Rubber | |
Series | OMEGA | |
Tooth Height | 1.1mm | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +100°C | |
Select all | ||
---|---|---|
Brand OPTIBELT | ||
Length 330mm | ||
Width 9mm | ||
Pitch 3mm | ||
Number of Teeth 110 | ||
Profile 3M | ||
Material Rubber | ||
Series OMEGA | ||
Tooth Height 1.1mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||

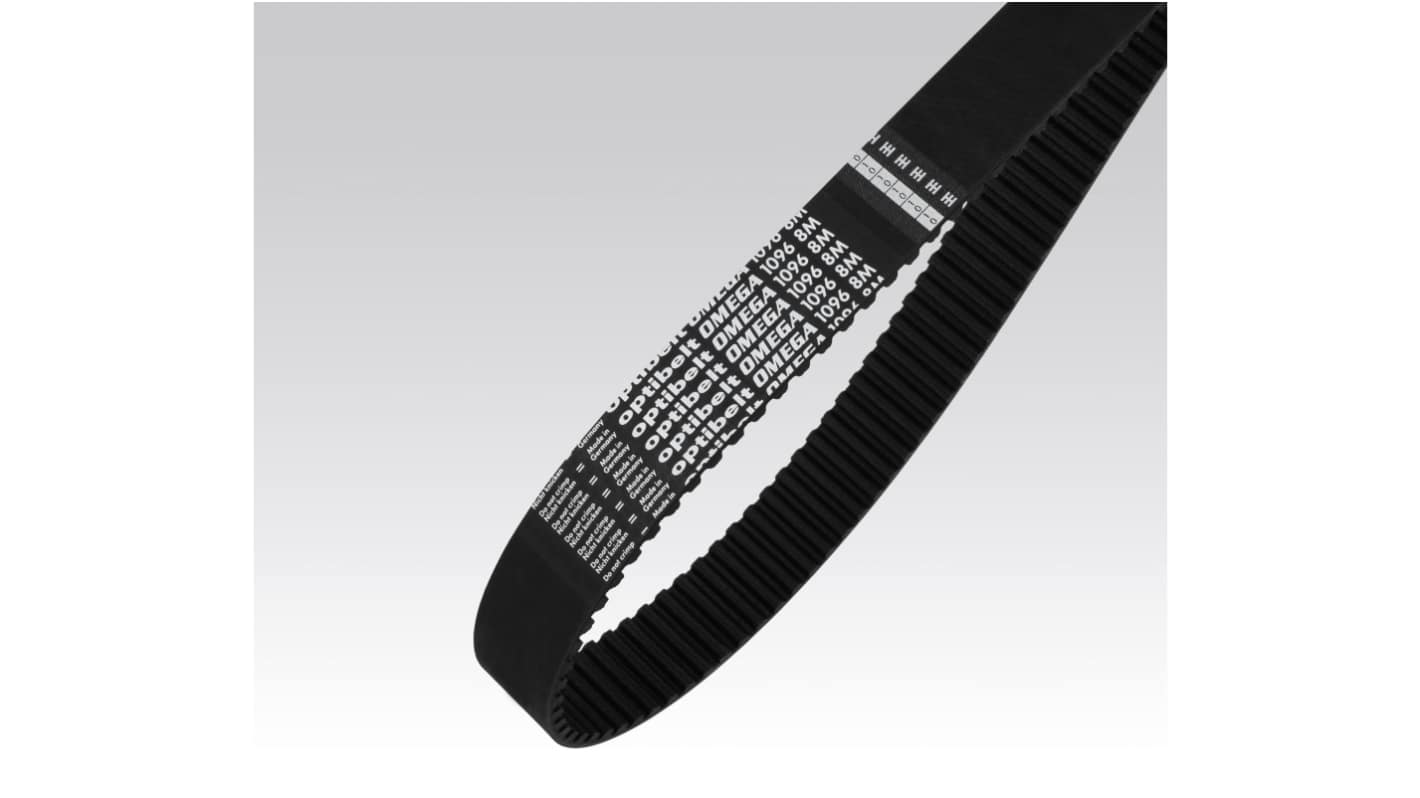

The Optibelt Timing Belt has 330mm pitch length. The linear belt is open-ended timing belts with glass cord manufactured from sleeves in a spiral cut method.
Pitch length 330mm
High level of tensile strength
Low stretch
High positioning accuracy
Lower noise level than opt belt HTD, opt belt ZR and polyurethane timing belts
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
For medium and
High level of tensile strength
Low stretch
High positioning accuracy
Lower noise level than opt belt HTD, opt belt ZR and polyurethane timing belts
Maximum angle misalignment of 0.67° (depending on width)
Maintenance-free
For medium and
