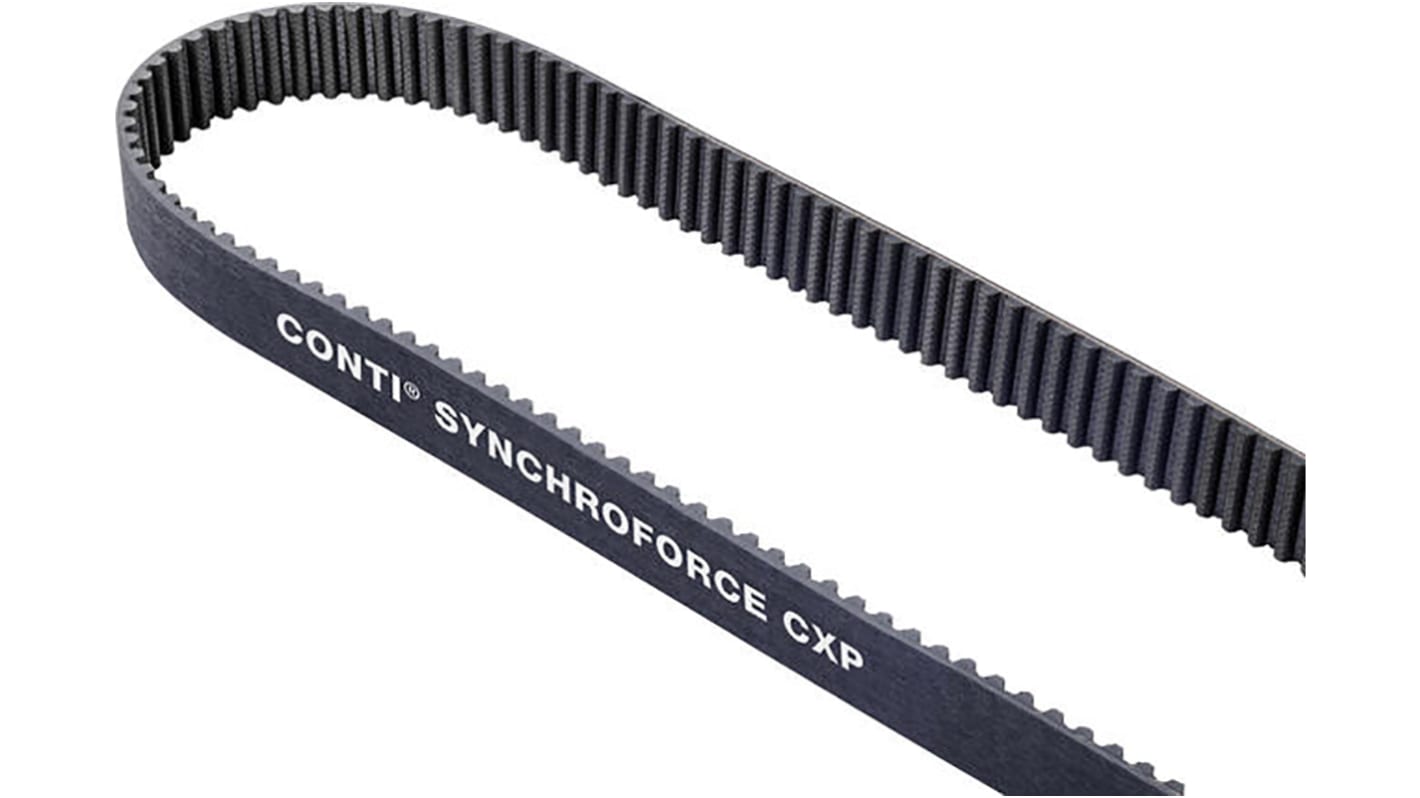

Contitech 1160 -8M 50 CXP Timing Belt, 145 Teeth, 1160mm Length, 50mm Width
- RS Stock No.:
- 188-4548
- Mfr. Part No.:
- 1160 -8M 50 CXP
- Brand:
- Contitech
Subtotal (1 unit)*
£65.30
(exc. VAT)
£78.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.30 |
*price indicative
- RS Stock No.:
- 188-4548
- Mfr. Part No.:
- 1160 -8M 50 CXP
- Brand:
- Contitech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Contitech | |
| Length | 1160mm | |
| Width | 50mm | |
| Pitch | 8mm | |
| Number of Teeth | 145 | |
| Profile | 8M | |
| Maximum Speed | 50m/s | |
| Tooth Height | 3.4mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Contitech | ||
Length 1160mm | ||
Width 50mm | ||
Pitch 8mm | ||
Number of Teeth 145 | ||
Profile 8M | ||
Maximum Speed 50m/s | ||
Tooth Height 3.4mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- DE
Heavy-duty timing belts for high power transmission at high speeds
Temperature resistant between -20°C and +100°C, depending on the application
Antistatic
Moderately oil resistant
Ozone resistant
Suitable for use in tropical climates
Resistant to ageing
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free
Increased power
Antistatic
Moderately oil resistant
Ozone resistant
Suitable for use in tropical climates
Resistant to ageing
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free
Increased power
