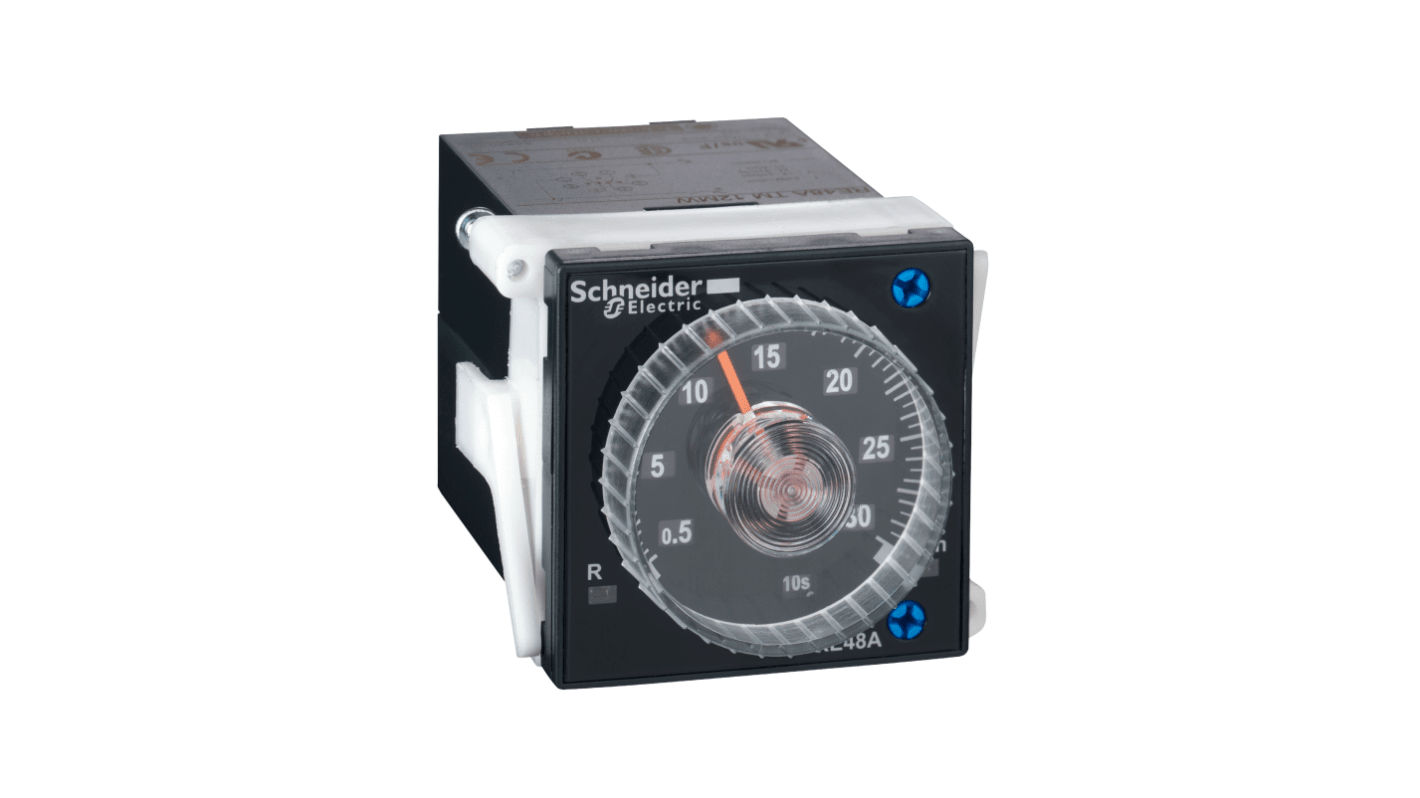

Schneider Electric Harmony Time Series Panel Timer Relay, 2-Contact, 24 to 240 V dc 24V ac, 240 V ac, 0.02 s to 300 h,
- RS Stock No.:
- 914-8246
- Mfr. Part No.:
- RE48ATM12MW
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£83.16
(exc. VAT)
£99.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.16 |
*price indicative
- RS Stock No.:
- 914-8246
- Mfr. Part No.:
- RE48ATM12MW
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Timer Relay | |
| Mount Type | Panel | |
| Time Range | 0.02 s to 300 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 250V ac/dc | |
| Contact Configuration | DPDT | |
| IP Rating | IP40, IP50 | |
| Timing Adjustment | Swedish Pipe | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 24, 240V ac | |
| Supply DC Voltage | 24 to 240 V dc | |
| Terminal Type | 8-Pin | |
| Maximum Operating Temperature | 50°C | |
| Height | 96.8mm | |
| Length | 48mm | |
| Width | 48mm | |
| Standards/Approvals | cULus, UL, IEC 61812-1, 89/336/EEC, 73/23/EEC, CSA, IEC 60669-2-3, EN 50082-1/2, EN 50081-1/2, C-Tick, 93/68/EEC | |
| Series | Harmony Time | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Timer Relay | ||
Mount Type Panel | ||
Time Range 0.02 s to 300 h | ||
Number of Contacts 2 | ||
Number of Timer Functions 1 | ||
Switching Voltage 250V ac/dc | ||
Contact Configuration DPDT | ||
IP Rating IP40, IP50 | ||
Timing Adjustment Swedish Pipe | ||
Contact Current 5A | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 24, 240V ac | ||
Supply DC Voltage 24 to 240 V dc | ||
Terminal Type 8-Pin | ||
Maximum Operating Temperature 50°C | ||
Height 96.8mm | ||
Length 48mm | ||
Width 48mm | ||
Standards/Approvals cULus, UL, IEC 61812-1, 89/336/EEC, 73/23/EEC, CSA, IEC 60669-2-3, EN 50082-1/2, EN 50081-1/2, C-Tick, 93/68/EEC | ||
Series Harmony Time | ||
- COO (Country of Origin):
- ID
On Delay Timers- RE48 Series
Schneider Electric RE48 series is an electric timer with On Delay functionality.
• On Delay function
• 48 x 48 mm
• Base or panel mounting
• Plug-in subbase; 8-pin
• Selector switch on front panel
• Self-extinguishing housing
• 2 C/O timed contacts
• LED status indicator
• 24-240 V ac
• IP50 (front face) & IP40 (housing) protection
