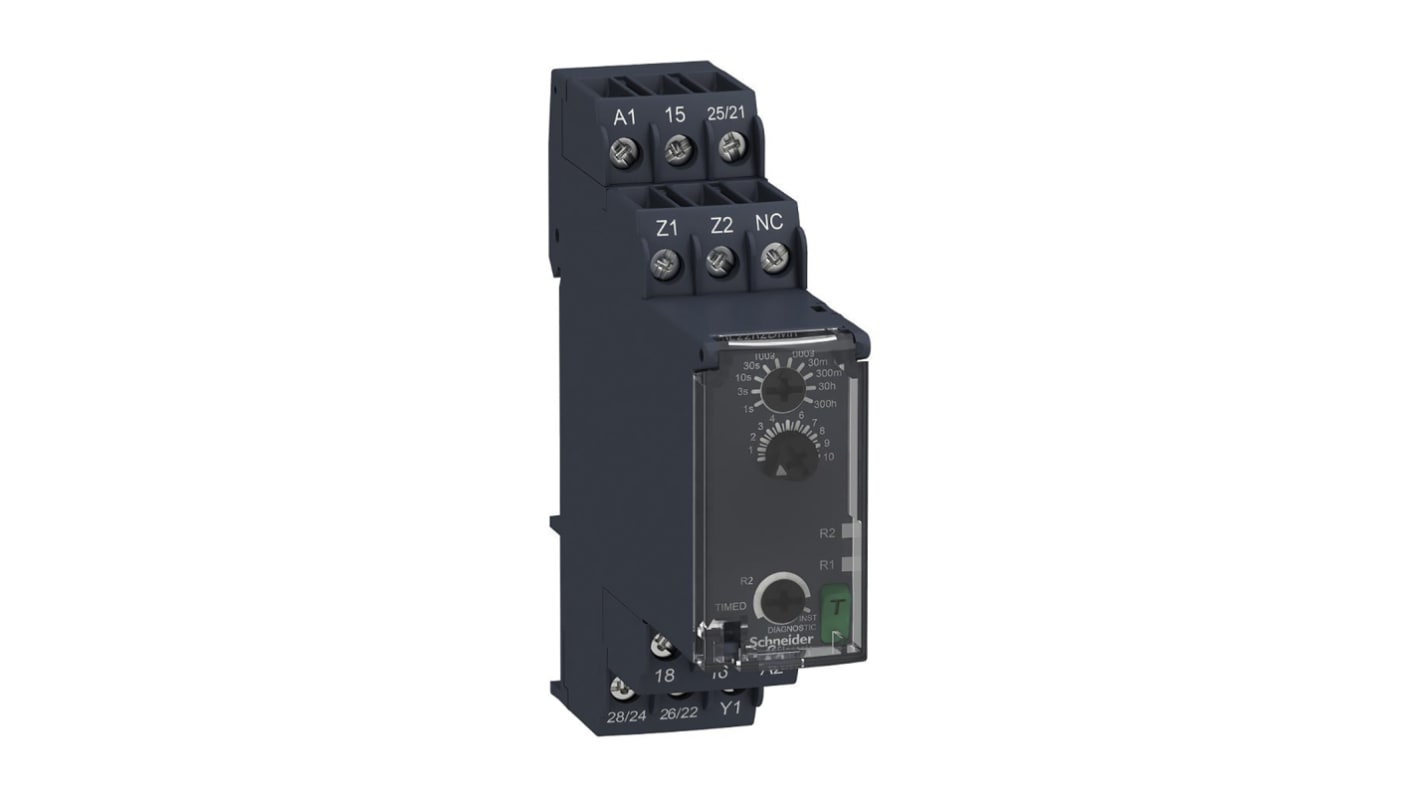

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V dc 240 V ac, 24 V ac, 1-Function, DPDT

View all Timer Relays
Bulk discount available

Subtotal (1 unit)*

£88.54

(exc. VAT)

£106.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£88.54
5 - 9£84.11
10 +£79.70

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
896-8686
Distrelec Article No.:
303-02-791
Mfr. Part No.:
RE22R2DMR
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Timer Relay

Mount Type

DIN Rail

Function

Stillson Pipe

Number of Contacts

2

Number of Timer Functions

1

Contact Configuration

DPDT

IP Rating

IP50, IP20, IP40

Supply DC Voltage

240 V dc

Contact Current

8A

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Terminal Type

Screw

Length

22.9mm

Height

79.5mm

Standards/Approvals

CE, IEC 61812-1, CSA, UL, GL, UL 508, CCC, 2004/108/EC, EAC, RCM, 2006/95/EC

Better World Product

Yes

Series

Harmony Time

COO (Country of Origin):
ID

Symmetrical Flashing Timers- RE22 Series


22.5 mm profile width

Screw terminals connection

State indication by LED

Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1

Available option of supplying a load in parallel

Operating temperature of -20 → 60 °C

Self extinguishing housing material

Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)
