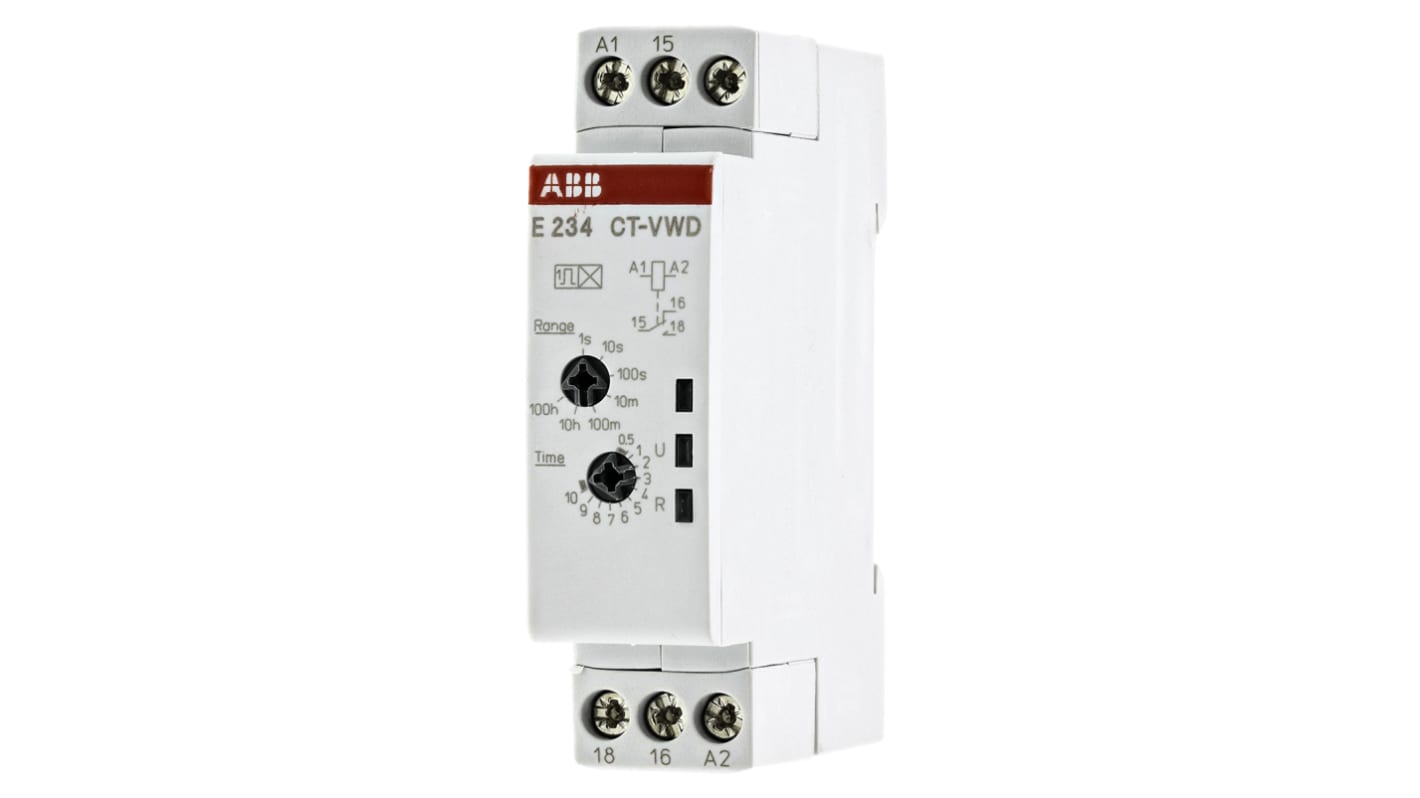

ABB DIN Rail Timer Relay, 1-Contact, 240 V dc 240V ac, 0.05 to 360000 s, 1-Function, SPDT Switch Configuration
- RS Stock No.:
- 489-7189
- Mfr. Part No.:
- 1SVR500130R0000 CT-VWD.12
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£49.95
(exc. VAT)
£59.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £49.95 |
| 5 - 9 | £47.46 |
| 10 - 24 | £44.96 |
| 25 - 49 | £42.46 |
| 50 + | £39.98 |
*price indicative
- RS Stock No.:
- 489-7189
- Mfr. Part No.:
- 1SVR500130R0000 CT-VWD.12
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.05 to 360000 s | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| IP Rating | IP20, IP50 | |
| Contact Current | 6A | |
| Supply AC Voltage | 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 240 V dc | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Height | 63mm | |
| Width | 17.5mm | |
| Standards/Approvals | CE | |
| Length | 70mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.05 to 360000 s | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
IP Rating IP20, IP50 | ||
Contact Current 6A | ||
Supply AC Voltage 240V ac | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 240 V dc | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Height 63mm | ||
Width 17.5mm | ||
Standards/Approvals CE | ||
Length 70mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB Timer Relay, SPDT Contact Configuration, 240V Supply Voltage - 1SVR500130R0000 CT-VWD.12
This timer relay is crafted for automation applications, featuring a compact design suitable for DIN rail mounting. It operates at a supply voltage of 240V with a single SPDT contact. Its dimensions are 17.5mm in width, 63mm in depth, and 70mm in length. The adjustable time range provides precise timing solutions for various electrical settings.
Features & Benefits
• 7 selectable time ranges for operational versatility
• User-friendly potentiometer enables accurate time adjustments
• Dual LED indicators offer real-time status updates
• Maximum current rating of 6A ensures performance
• Compact dimensions optimise space in distribution cabinets
Applications
• Suitable for automation and control circuits
• Effective for interval timing in industrial environments
• Used in HVAC systems for precise timing
• Applied in lighting control systems to save energy
• Employed in machinery to manage operational delays
Will it reset if the power is interrupted?
Yes, the timing sequence will reset upon power loss.
Is it suitable for high-temperature environments?
Yes, it functions within a temperature range of -20°C to +60°C.
Can it be easily mounted in existing cabinets?
Yes, it is designed for straightforward DIN rail mounting.
Is the contact configuration flexible for different uses?
Yes, it includes a single SPDT contact for versatile applications.
Approvals
UL listed / UL listed for Canada, GL, GOST, c-Tick
Standards
IEC/EN 61812-1. DIN VDE 0435 pt 2021
