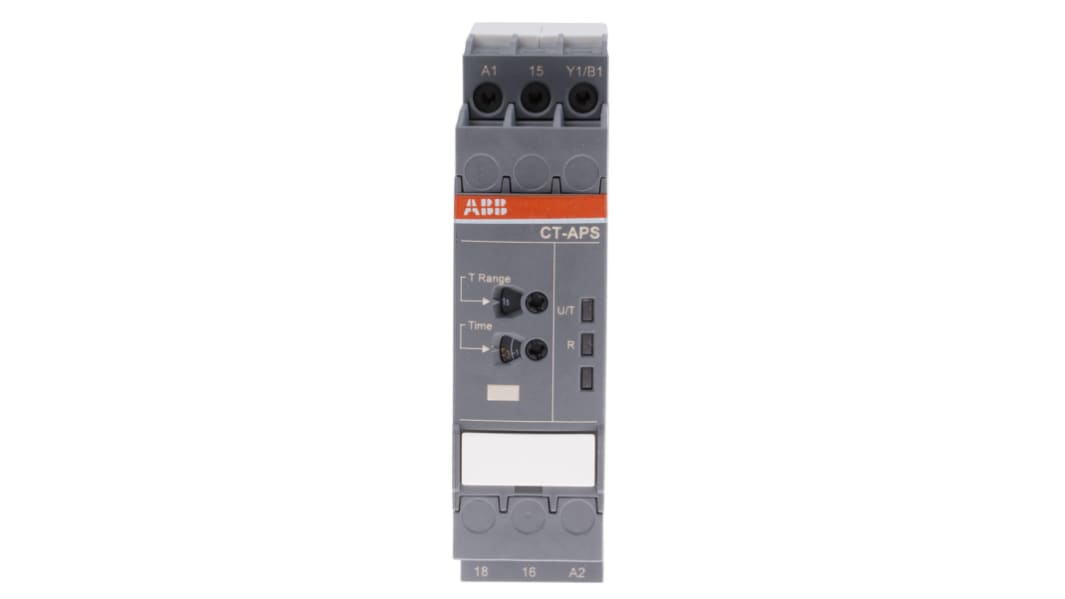

ABB DIN Rail Timer Relay, 1-Contact, 48 V dc 24V ac, 240 V ac, 0.05 s to 300 h, 1-Function, SPDT Switch Configuration
- RS Stock No.:
- 746-7090
- Mfr. Part No.:
- 1SVR730180R3100 CT-APS.12S
- Brand:
- ABB
Subtotal (1 unit)*
£81.86
(exc. VAT)
£98.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £81.86 |
*price indicative
- RS Stock No.:
- 746-7090
- Mfr. Part No.:
- 1SVR730180R3100 CT-APS.12S
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.05 s to 300 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| IP Rating | IP50, IP20 | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 24, 240V ac | |
| Supply DC Voltage | 48 V dc | |
| Contact Current | 4A | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Push-in | |
| Height | 113.4mm | |
| Standards/Approvals | RoHS | |
| Length | 85.6mm | |
| Width | 22.5mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.05 s to 300 h | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
IP Rating IP50, IP20 | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 24, 240V ac | ||
Supply DC Voltage 48 V dc | ||
Contact Current 4A | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Push-in | ||
Height 113.4mm | ||
Standards/Approvals RoHS | ||
Length 85.6mm | ||
Width 22.5mm | ||
- COO (Country of Origin):
- DE
CT-S Range - Off Delay
The highly sophisticated CT-S range is ABB’s most modern and universal time relay range, with innovative connection technology.
Off-delay function
Time range pre-selection and fine adjustment
LEDs for status indication
Screw terminals
Double-chamber cage connection terminals
Integrated marker label
