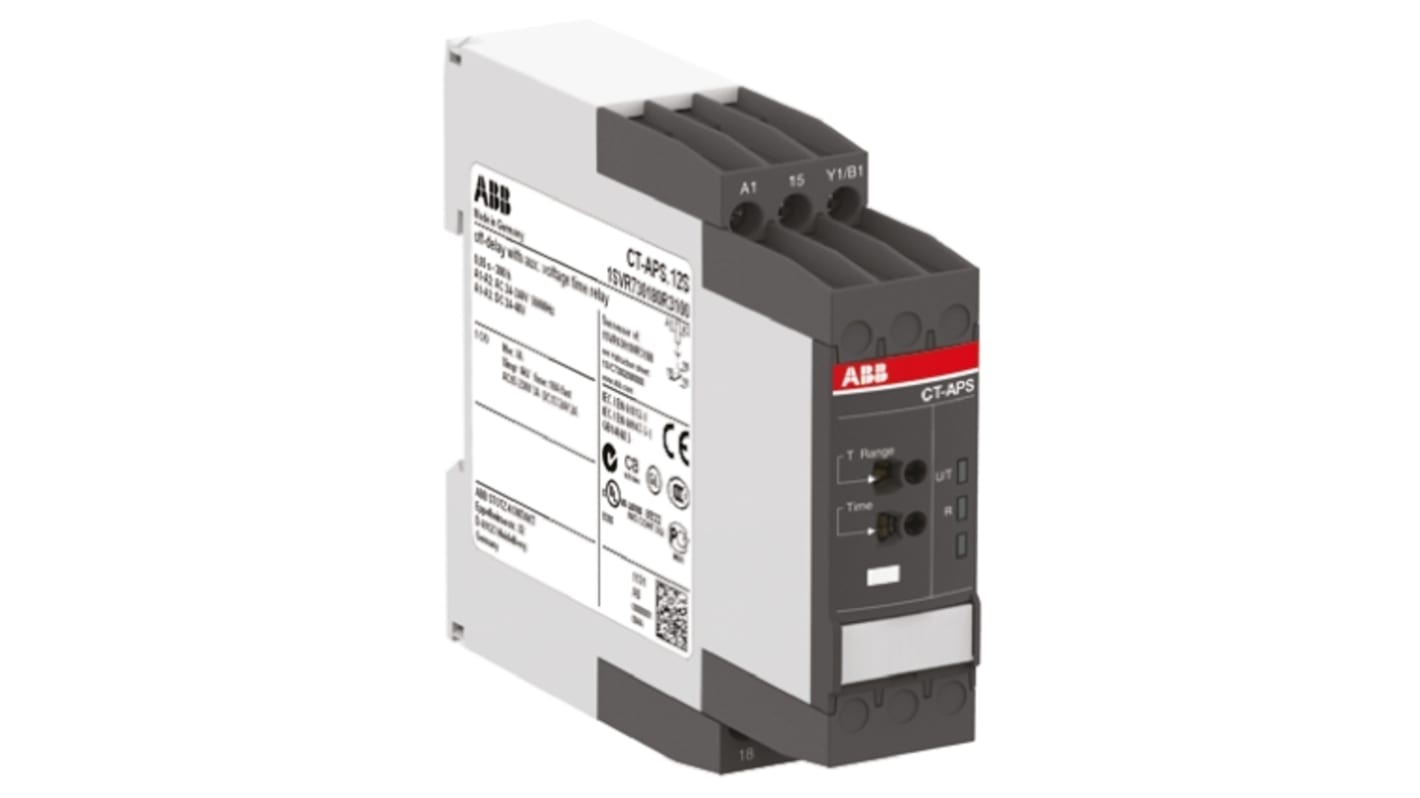

ABB DIN Rail Timer Relay, 1-Contact, 48 V dc 24 to 240 V ac, 0.05 s to 300 h, 1-Function, SPDT Switch Configuration

Bulk discount available

Subtotal (1 unit)*

£79.51

(exc. VAT)

£95.41

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Time Range	0.05 s to 300 h
	Number of Contacts	1
	Number of Timer Functions	1
	Contact Configuration	SPDT
	IP Rating	IP20, IP50
	Contact Current	4A
	Supply AC Voltage	24 to 240 V ac
	Minimum Operating Temperature	-25°C
	Supply DC Voltage	48 V dc
	Maximum Operating Temperature	60°C
	Terminal Type	Screw
	Height	113.4mm
	Standards/Approvals	RoHS
	Length	85.6mm
	Width	22.5 mm

	Select all
	Brand ABB
	Product Type Timer Relay
	Mount Type DIN Rail
	Time Range 0.05 s to 300 h
	Number of Contacts 1
	Number of Timer Functions 1
	Contact Configuration SPDT
	IP Rating IP20, IP50
	Contact Current 4A
	Supply AC Voltage 24 to 240 V ac
	Minimum Operating Temperature -25°C
	Supply DC Voltage 48 V dc
	Maximum Operating Temperature 60°C
	Terminal Type Screw
	Height 113.4mm
	Standards/Approvals RoHS
	Length 85.6mm
	Width 22.5 mm

The CT-APS series is an electronic timer series from the CT-S range with true OFF-delay including 10 selectable time

ranges. All electronic timers from the CT-S range are available with two different terminal versions.

Rated control supply voltage 24 → 48 Vdc, 24 → 240 Vac

OFF - Delay timer with auxiliary voltage

10 time ranges selectable between 0.05 s → 300 h

Control input with voltage - related triggering to start timing

Precise adjustment by front - face operating elements

Screw connection technology

Enclosure material for highest fire protection classification

Tool - free mounting and demounting on DIN - rail

1 C/O (SPDT) contact

Width of 22.5 mm

2 LEDs for status indication

UL 508, CAN/CSA C22.2 No.14, GL, GOST, CB scheme, CCC, CE & C-Tick
